7-24
Confidential
(3) Press the [Stop/Exit] button. The machine beeps for one second and returns to the
initial stage of the maintenance mode.

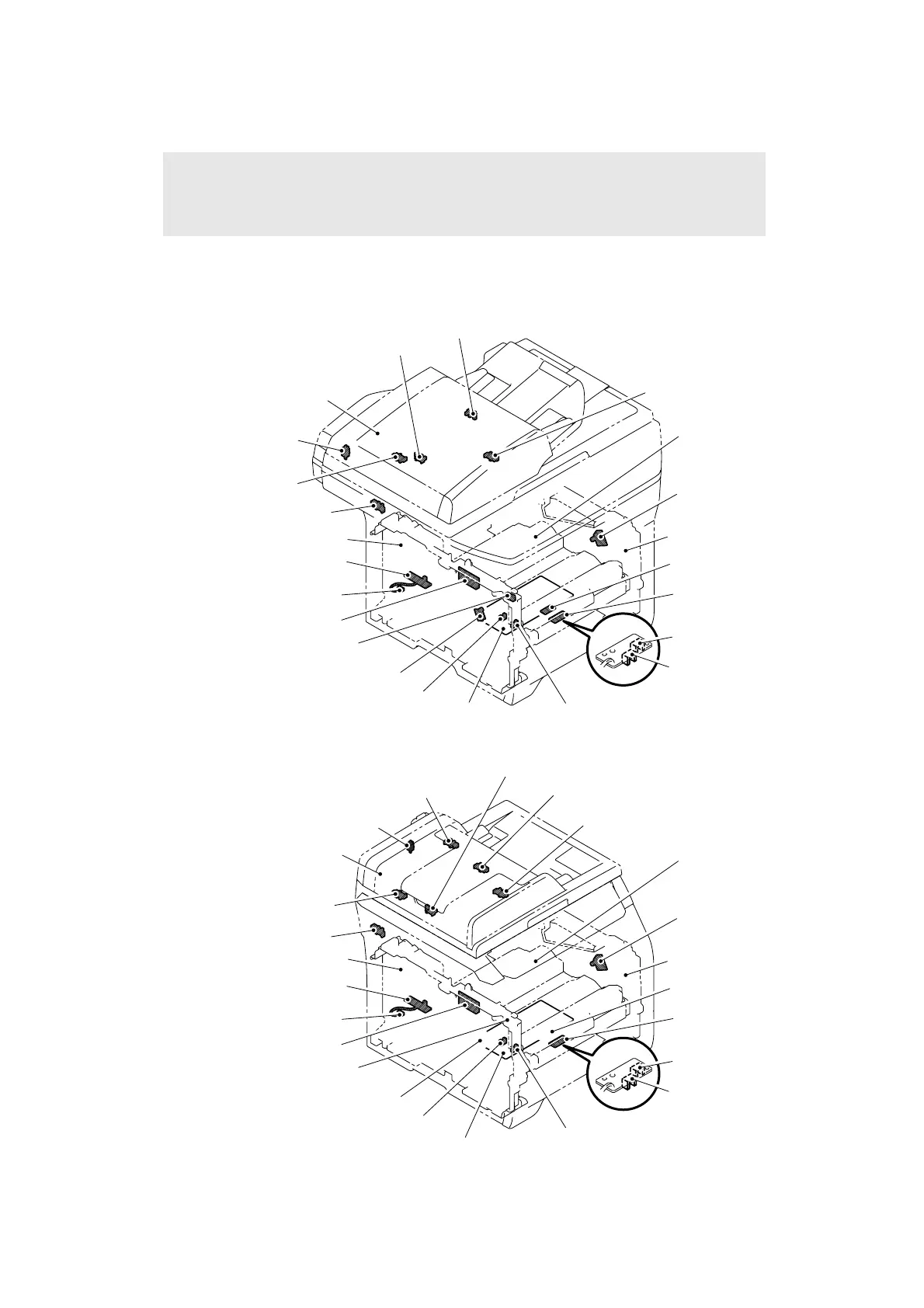

■ Location of sensors
Fig. 7-12
Note:
• If you have opened and closed the front cover during the above procedure, you
need to open and close the front cover again upon completion of the procedure.
Document front sensor 1
(CCD model)
Regist front sensor
Edge sensor
PE sensor
PE EG sensor
MP PE sensor
Frame R
Toner LED PCB
(Light emission)
Regist frame
Document front sensor 2
Switch back sensor
ADF unit
Document cover sensor
Document rear sensor
Home position sensor
Frame L
Paper eject sensor
(Relay rear PCB)
Duplex tray sensor
New toner sensor (Relay front PCB)
Front cover sensor
Toner sensor PCB (Light reception)
Regist rear sensor
High-voltage PS PCB
(CIS model)
ADF cover open sensor
Document front sensor 1
Regist front sensor
Edge sensor
PE sensor
PE EG sensor
MP PE sensor
Frame R
Toner LED PCB
(Light emission)
Regist frame
Document front sensor 2
Document eject sensor
Switch back sensor
ADF unit
Document rear sensor
Home position sensor
Frame L
Paper eject sensor
(Relay rear PCB)
Duplex tray sensor
New toner sensor (Relay front PCB)
Front cover open sensor
Toner sensor PCB (Light reception)
Regist rear sensor
High-voltage PS PCB

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
