5. ADF simplex scanning (The document moves over the immovable scanner module.)

(1) Set the document face up into the paper feed chute ASSY. When the machine starts

simplex scanning, the ADF motor is rotated clockwise, the pick-up roller draws the

document, and the separation roller and separation rubber send a sheet of the

document to the ADF one by one from the top page of the stacked documents.

(2) The document is passed through the paper feed rollers 1, 2 and 3 (paper feed roller

3 is CCD model only), and is passed over the scanner module so that the document

is scanned. Then, the document is ejected to the document cover (CCD model) or

Document eject tray (CIS model) by the eject roller.

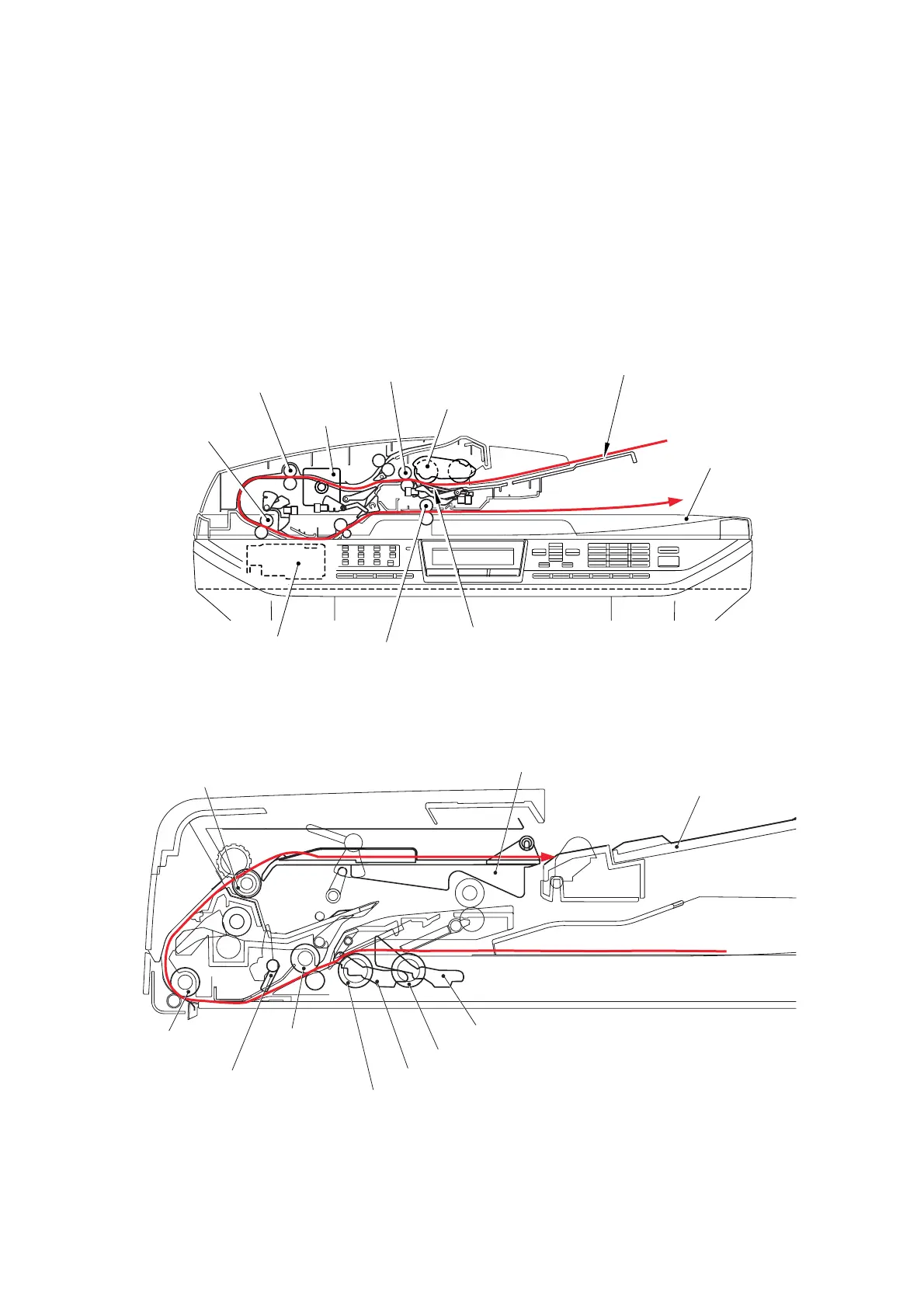

 CCD model

Fig. 2-11

 CIS model

Fig. 2-12

Document cover

Paper feed chute ASSY

Separation roller

Paper feed roller 1

ADF motor

Paper feed roller 2

Paper feed roller 3

CCD module

Eject roller

Separation rubber

Document front actuator 1

Document front actuator 2

Feed roller

Separation roller

Document rear actuator

Ejection flap

Document eject tray

Exit roller

Feed roller 1

Feed roller 2
