Brother MFC-J2330DW Service Manual

3-26
Confidential

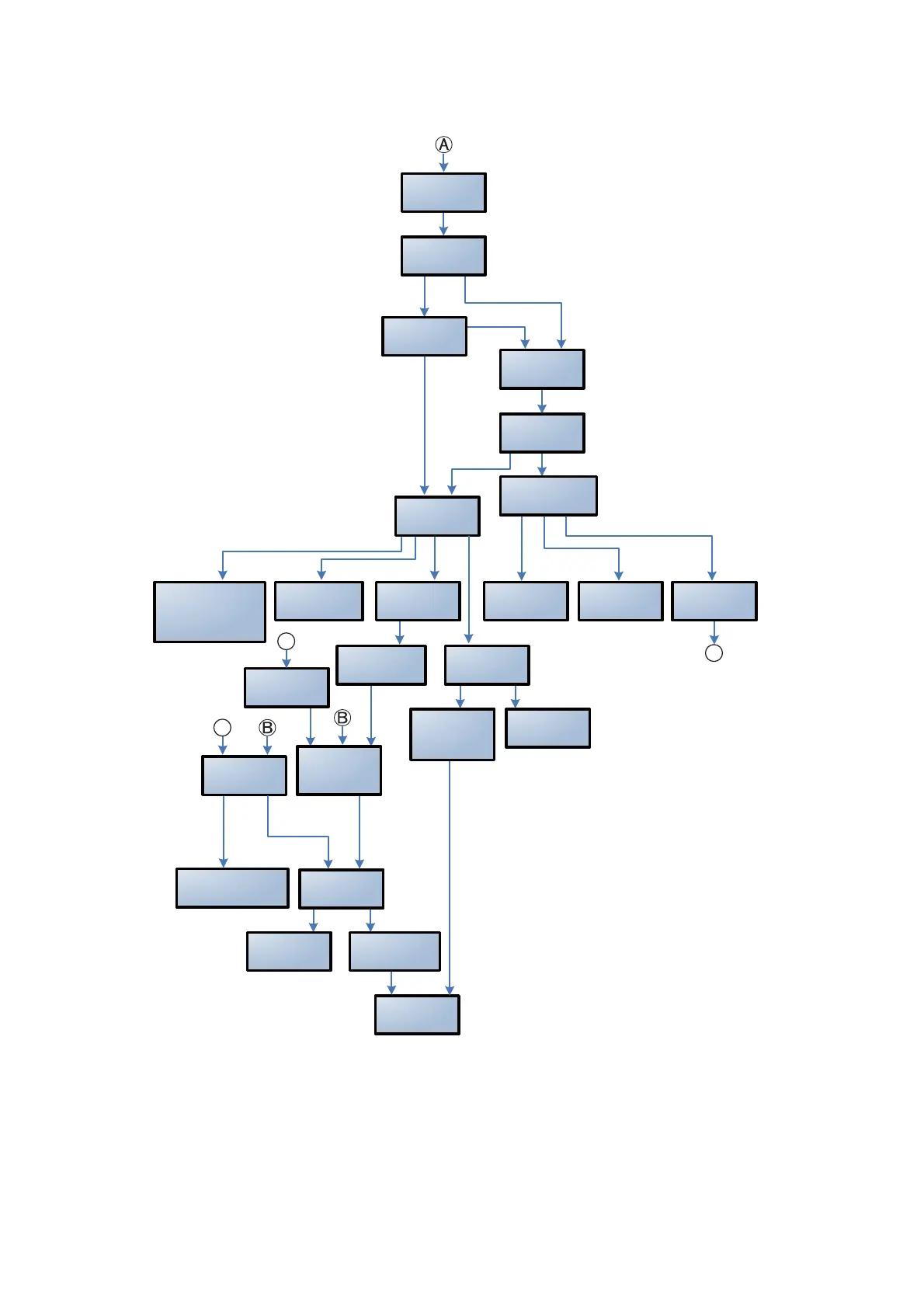

Disassembly/reassembly time (seconds)
9.31 Wireless
LAN PCB
30/35
9.32 Main PCB
15/15
9.33
Modem PCB
10/10
9.38 Ink
Refill ASSY
20/30
9.42 Switchback
Sensor PCB
55/65
9.46 LT
Frame ASSY
30/45
9.48
Power Supply
PCB ASSY
25/30
9.47 T2
Bank ASSY
25/25
9.49
Switchback Roller
20/25
9.56 Platen/
Paper Ejection
Roller
40/45
9.57 Registration
Sensor PCB
45/65
9.58
Flushing Box
5/10
9.59 Paper Feed
Arm Frame ASSY
5/10
9.60
T1 Bank ASSY
25/35
9.37 CR
Timing Belt
10/15
9.43 CR
Encoer Strip
10/10
9.44 Carriage
Motor
55/70
9.45 Flushing
Base
5/5
9.40 Ink Cartridge
Cover Sensor
10/15
9.39 Ink Absorber Felt
(For Ink Refill ASSY)/
Ink Absorber Felt
(For Ink Refill ASSY)2
5/5
9.34 Carriage
PCB ASSY
50/60
9.35 Head
Joint Rubber
20/20
9.36
Head/carriage Unit
15/15
9.54
Maintenance Unit
25/40
9.55 Ink Absorber Felt
(For Maintenance Unit)
5/5
C
C
C
