[ 3 ] Head/carriage unit drive and purge mechanisms
Defective component Result Error codes
Head/carriage unit

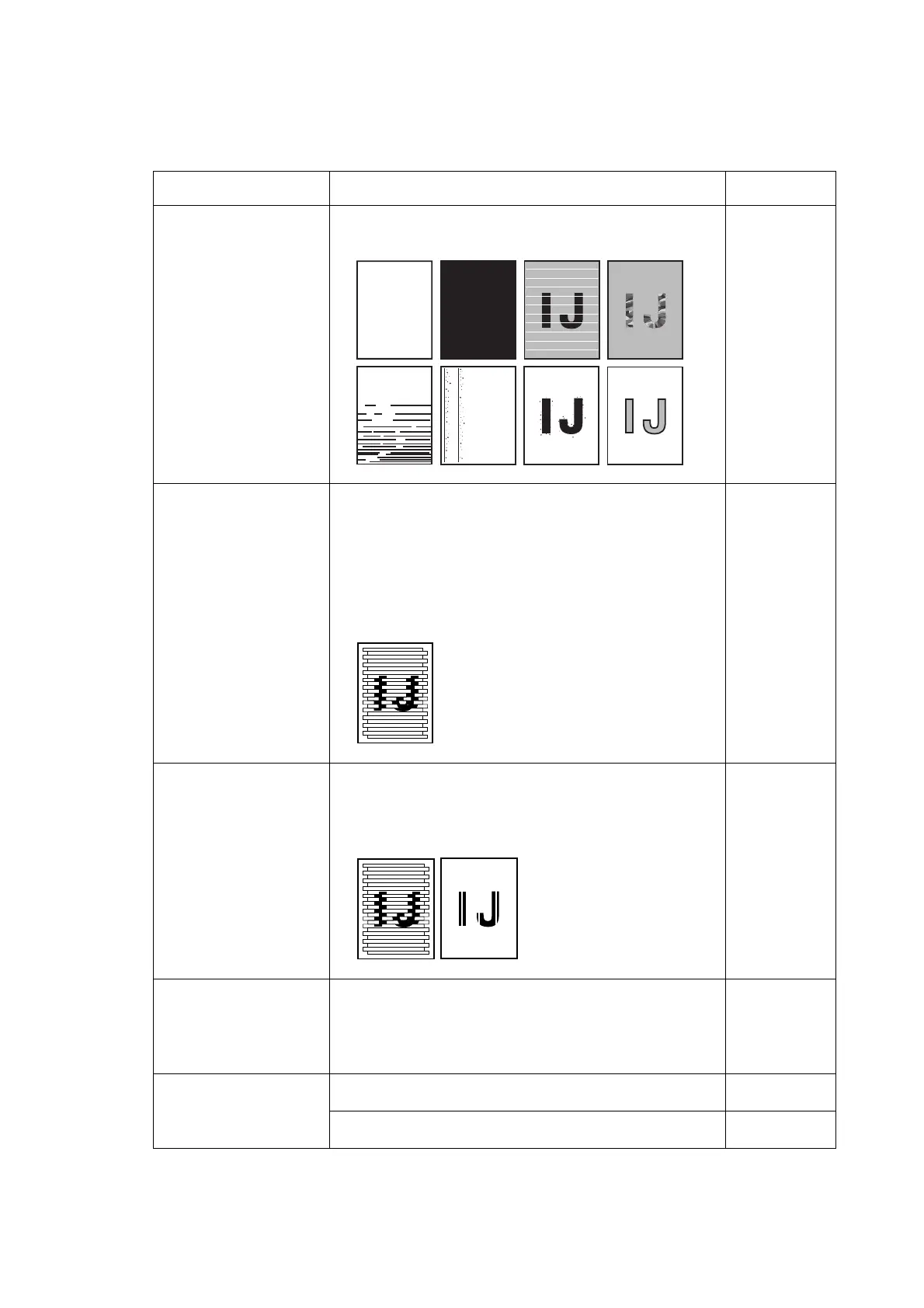

- Any of the following images may appear on the
printout:
---
Carriage motor
- The head/carriage unit will not be able to travel
normally.
- When the power is turned on, the "Unable to Init.
3*" (for models with color LCD) or "Init. Unable
3*" (for models with monochrome LCD) appears on
the LCD.
- The following image may appear on the printout:
30, 31, 32,
33
CR encoder strip
- The head/carriage unit will not be able to travel
normally.
- Any of the following images may appear on the
printout:
30, 31, 32,
33
Ink cartridge PCB
- The "Ink Empty XX" message will appear even
though there is ink.
- Even though the ink has run out, the "Ink Empty
XX" message will not appear.
26, 27, 28,
29
- A paper jam will occur.
80, 82
Paper width sensor
- Print on the platen without paper.
---
