7-8 Confidential

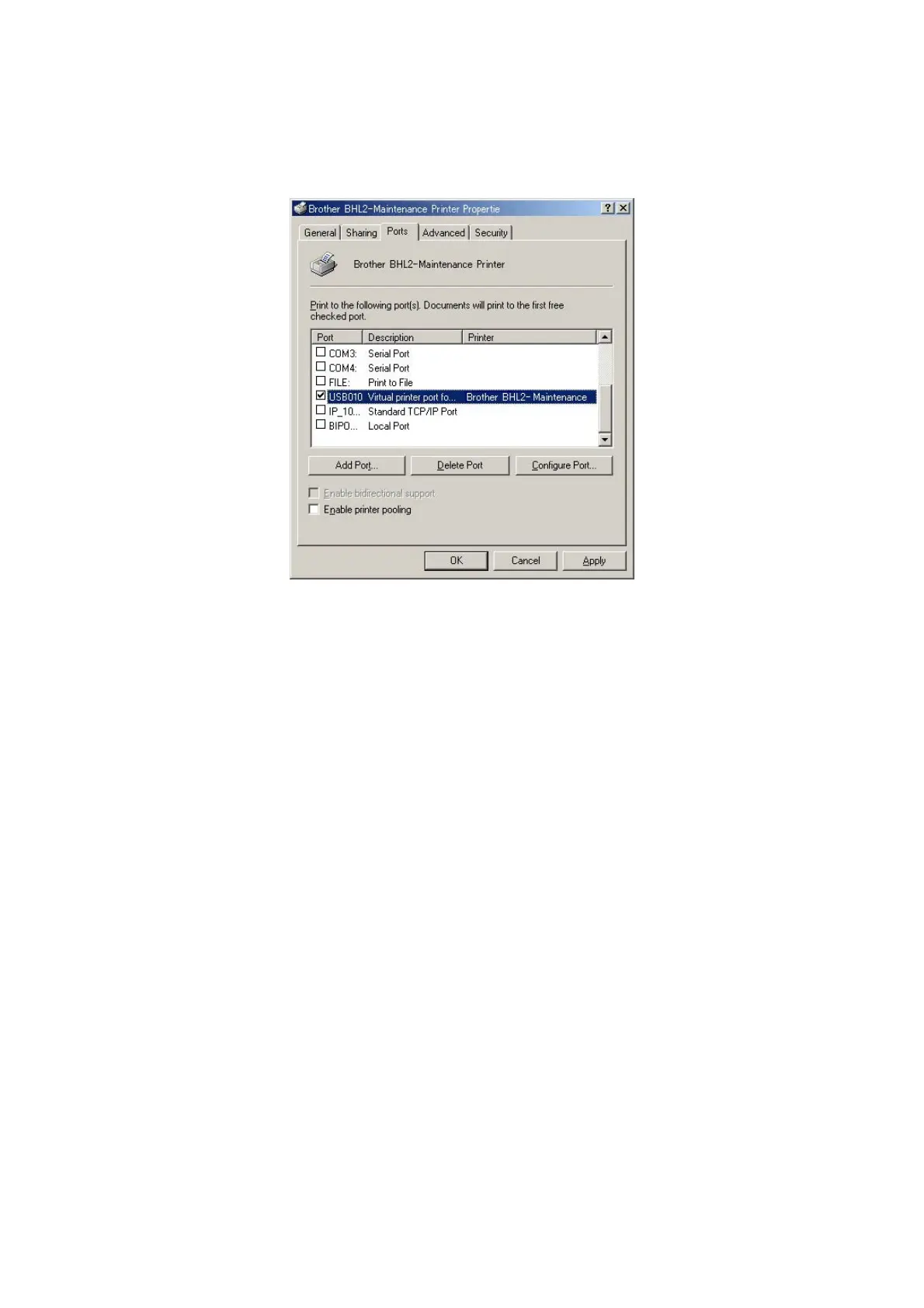

The BHL2-Maintenance Printer Properties window appears as shown below.
4) Click the Ports tab.
In this example, the port number assigned to the Brother BHL2-Maintenance Printer is USB010.
(9) In the Head Info. box on the BrUsbSn screen (page 7-6), type the 15-digit property code (e.g.,
ALR778402F00000) which is printed on the bar code label attached to the lower cover. Click
the OK button.
(10) To check that the entered head property code is correct (using function code 68 in Chapter 9,
Section 9.1.4.17), press the 6 and 8 keys in this order. Then press the 2, 5, 8, and 0 keys in this
order.
The LCD shows the current head property information (15-digit code) stored in the EEPROM
on the main PCB.
(11) Check that the character string entered in step (9) appears.
If it is OK, press the Stop/Exit key.
If something other than that appears, check the connection between the PC and machine and go
back to step (6).
