[ 4 ] Correct the positioning error of the head/carriage unit
(1) Run "filedg32.exe" in the folder created.

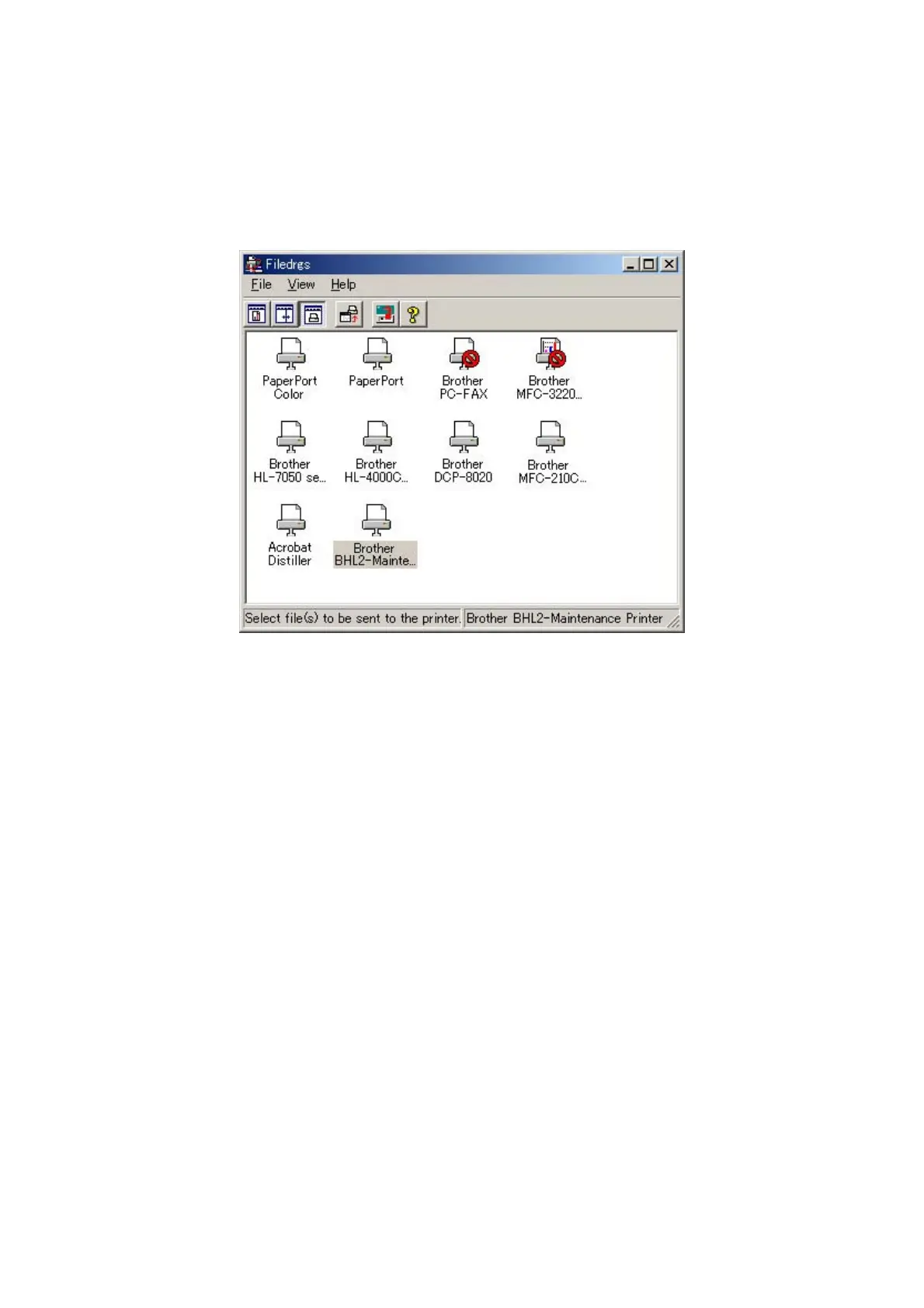

The Filedrgs window appears as shown below.
(2) Drag and drop the "incline.prn" icon onto the BHL2-Maintenance Printer icon in the Filedrgs
window shown above.
The machine displays the "RECEIVING DATA" on the LCD and prints out the "Incline
Adjust" test pattern shown on the next page.
(3) Out of the three rows of the "Incline Adjust" test pattern (on the next page), check the middle
row and select the block that is the least uneven print. Make a note of that block number.
To Next Page
