7-9 Confidential
[ 2 ] Clean the new head/carriage unit (Function code 76)
(1) Open the ink cartridge cover, set new ink cartridges into the ink refill ASSY, and close the ink
cartridge cover.
(2) Carry out "Initial purge" (with function code 76) using the steps below. (See Chapter 9, Section
9.1.4.21.)
Press the 7 and 6 keys in this order.
The machine displays "CLEANING ALL" on the LCD and enters the purge mode.
Press the 4 and Black Start (Mono Start) keys in this order.
The machine starts an initial purge that refills the ink supply tubes and the new print head with
fresh ink.
[ 3 ] Print out a test pattern (Function code 09)
To check that the head/carriage unit normally sprays ink droplets from all head nozzles, print out a
test pattern with function code 09 (see Chapter 9, Section 9.1.4.4) with the following steps.
(1) Press the 0 and 9 keys in this order.
(2) If a missing dot or any other print problem is found, go back to [ 2 ] above to clean the
head/carriage unit again.

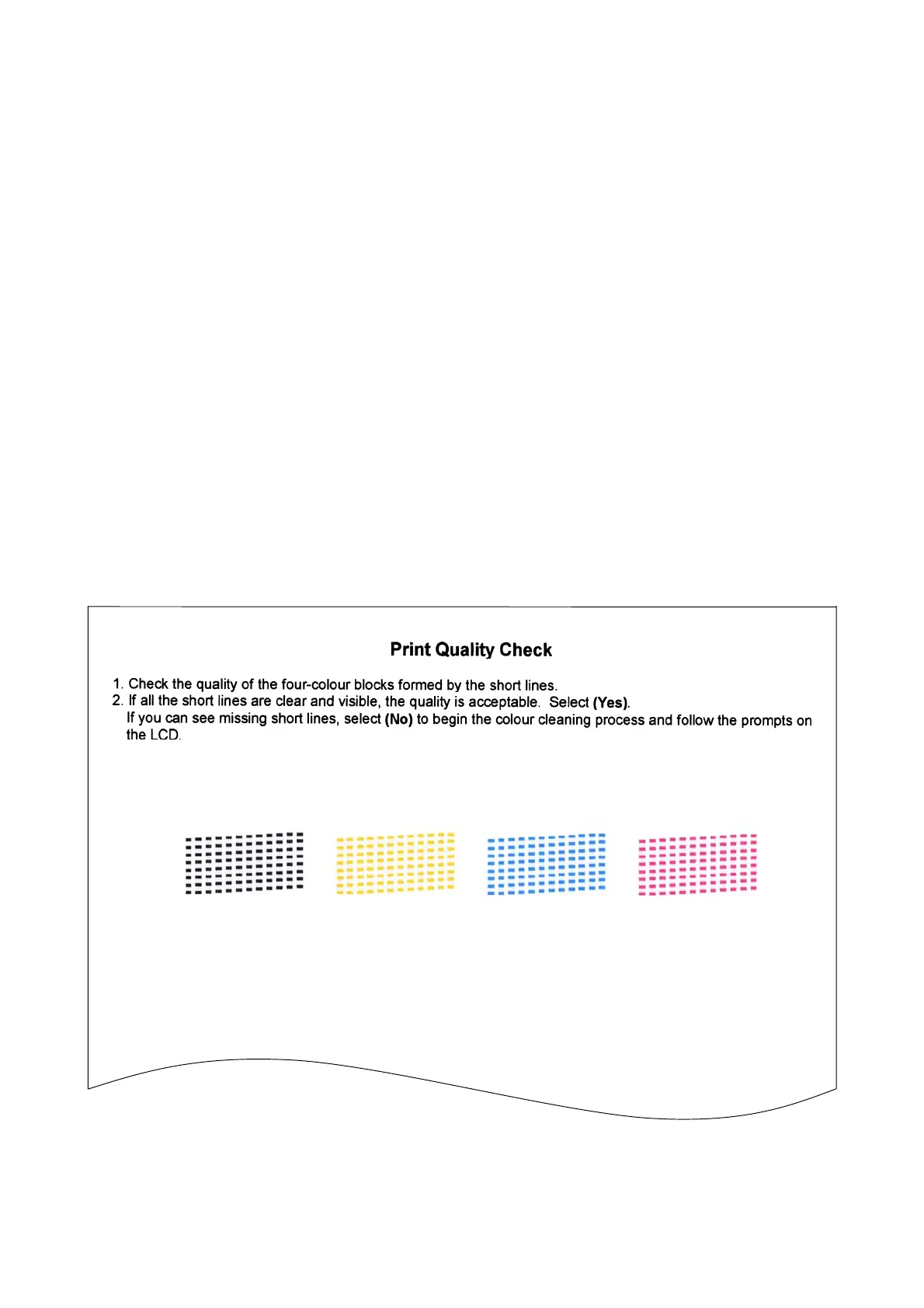

Test Pattern
To Next Page
