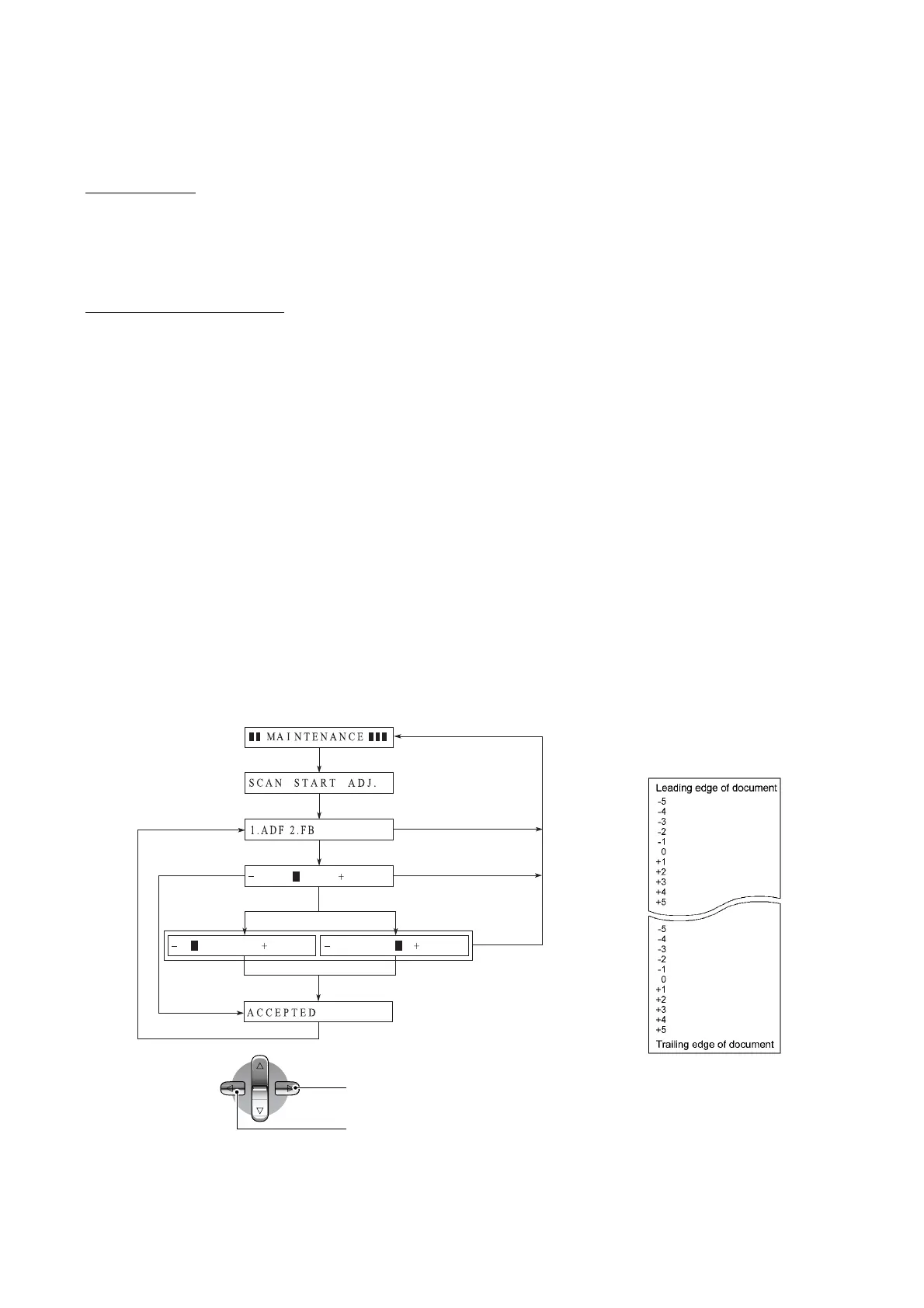

9.1.4.10 Fine Adjustment of Scanning Start/End Position (Function code 54)
 Function
This function allows you to adjust the scanning start/end position.
For models without an ADF, selecting "1.ADF" in steps (2) and (3) below produces nothing. Select
"2.FB" to adjust the start/end position of flat-bed scanning.
 Operating Procedure
(1) Press the 5 and 4 keys in this order in the initial stage of the maintenance mode.
The "SCAN START ADJ." appears on the LCD.
(2) Wait for the LCD to display the "1.ADF 2.FB."
(3) Press the 1 or 2 key, and the current scanning position correction value appears.
You can adjust the correction value to 11 levels from +5 to -5 (mm).
(4) To increase the correction value, press the right arrow key; to decrease it, press the left arrow
key.
If you press the Stop/Exit key, the machine returns to the initial stage of the maintenance mode
without making change of the correction value.
(5) Press the OK key.
The "ACCEPTED" appears on the LCD. After one second, the LCD returns to the "1.ADF
2.FB" screen.
(6) Press the Stop/Exit key to return to the initial stage of the maintenance mode.
5 and 4 keys
1 or 2 key
Stop/Exit key
Stop/Exit key
OK key
Stop/Exit
key
OK key
1 second later
Right arrow keyLeft arrow key
NOTE: The relationship between the
scanning start/end positions and their
correction values is shown below.
Right arrow ke
y
Left arrow key
