6.1.5 Control Panel ASSY, Scanner Cover Sensor Actuator, Ink Cartridge Cover Sensor Actuator,
and Cover Sensor PCB
Control panel ASSY
(1) Remove the three screws from the control panel ASSY.
(2) Pull up the rear end of the control panel ASSY and turn it up slightly.
NOTE: Do not pull the control panel ASSY away from the machine since it is connected to the
machine with a short LCD flat cable* and harnesses.
(3) While holding the control panel ASSY at an angle of approx. 45°, disconnect the LCD flat
cable* and panel-main harness from the main PCB, and the cover sensor harness from the
control panel PCB.
*For models with color LCD
(6_24)

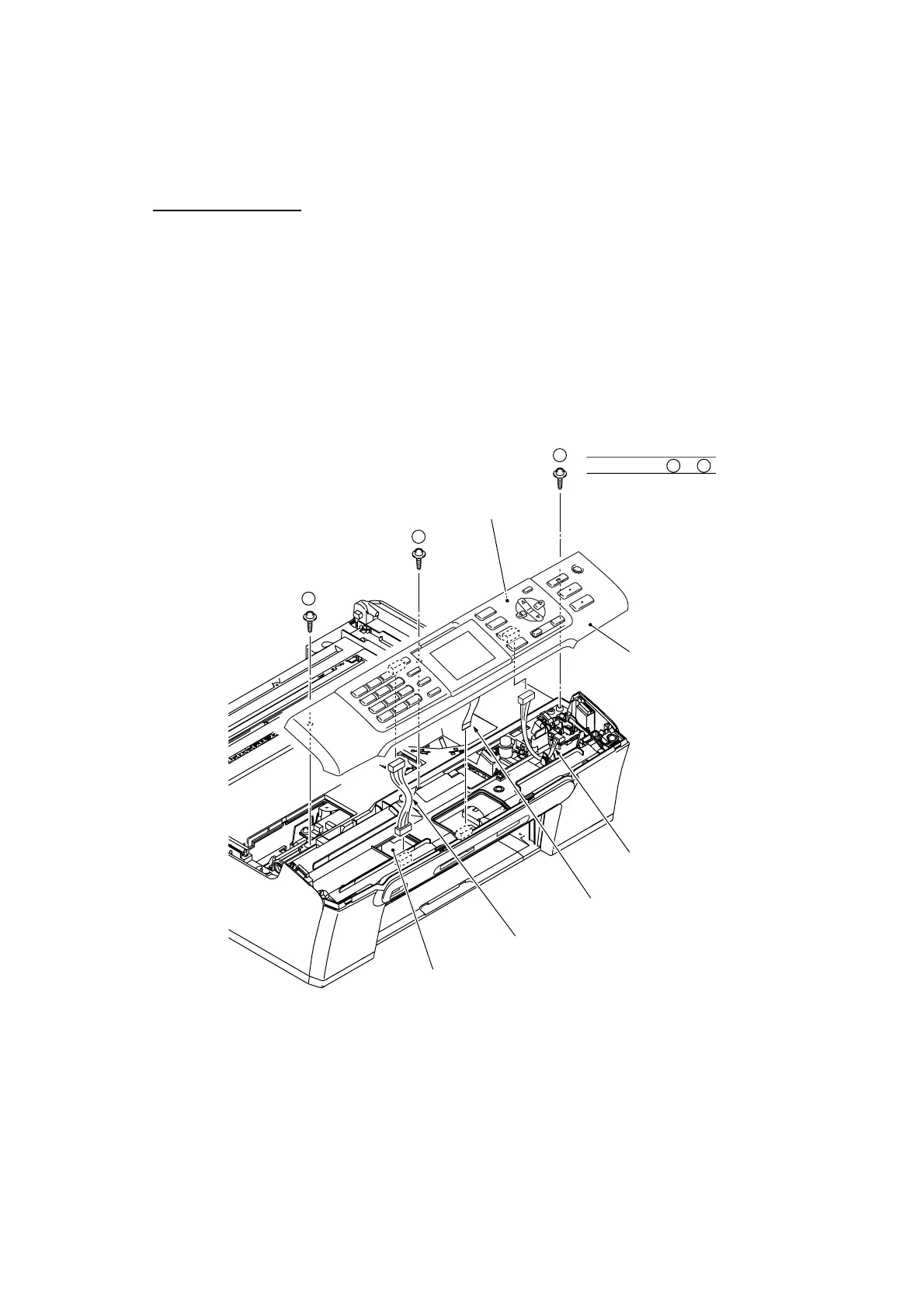

Tighten these screws
in the order of 1 to 3 .
Control panel PCB
Taptite, cup B M3x10
Main PCB
Panel-main harness
Cover sensor harness
Control panel ASSY
1
2
3
LCD flat cable*
