Brother MFC260C User Manual

6-13 Confidential
6.1.3 ADF & Document Cover ASSY* (Document Cover)

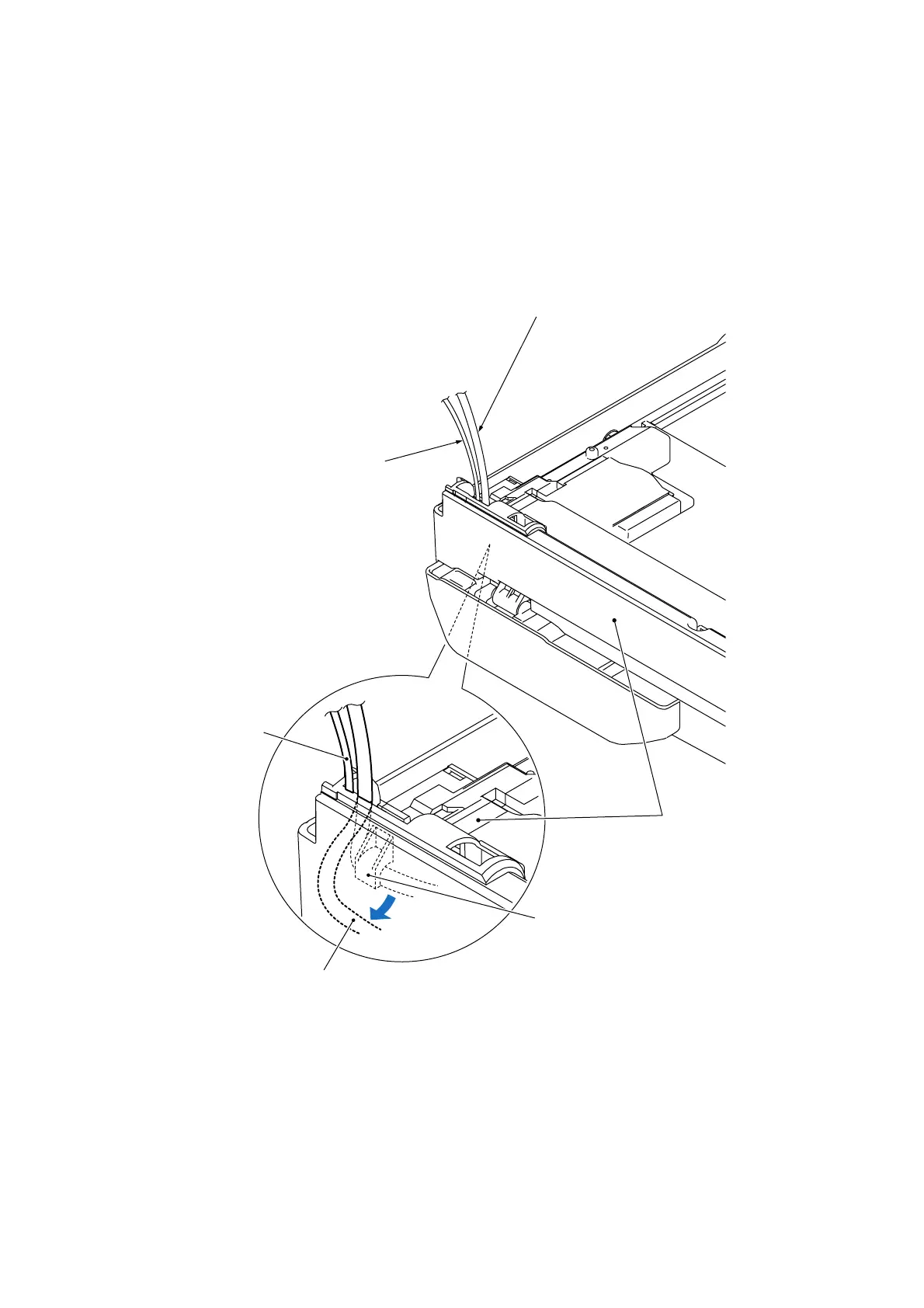

(1) Release the bundle of harnesses (ADF motor harness*, grounding wire*, and document front
and rear sensor harnesses*) from the cable guide in the rear corner of the scanner cover as
shown below.
*For models with ADF
Scanner cover
(placed upside down)
(6_12)
Bundle of harnesses
(ADF motor harness*, grounding wire*,
and document front and rear sensor harnesses*)
CIS motor harness
CIS motor harness
Bundle of harnesses
Cable guide
(Rear)
