7-19 Confidential
[ 7 ] Margin adjustment in borderless printing (Function code 66)
Before starting the operation below, be sure to set letter-size paper for printing a check pattern.
(1) On the PC, run "filedg32.exe" in the folder created in Section 7.1.1.

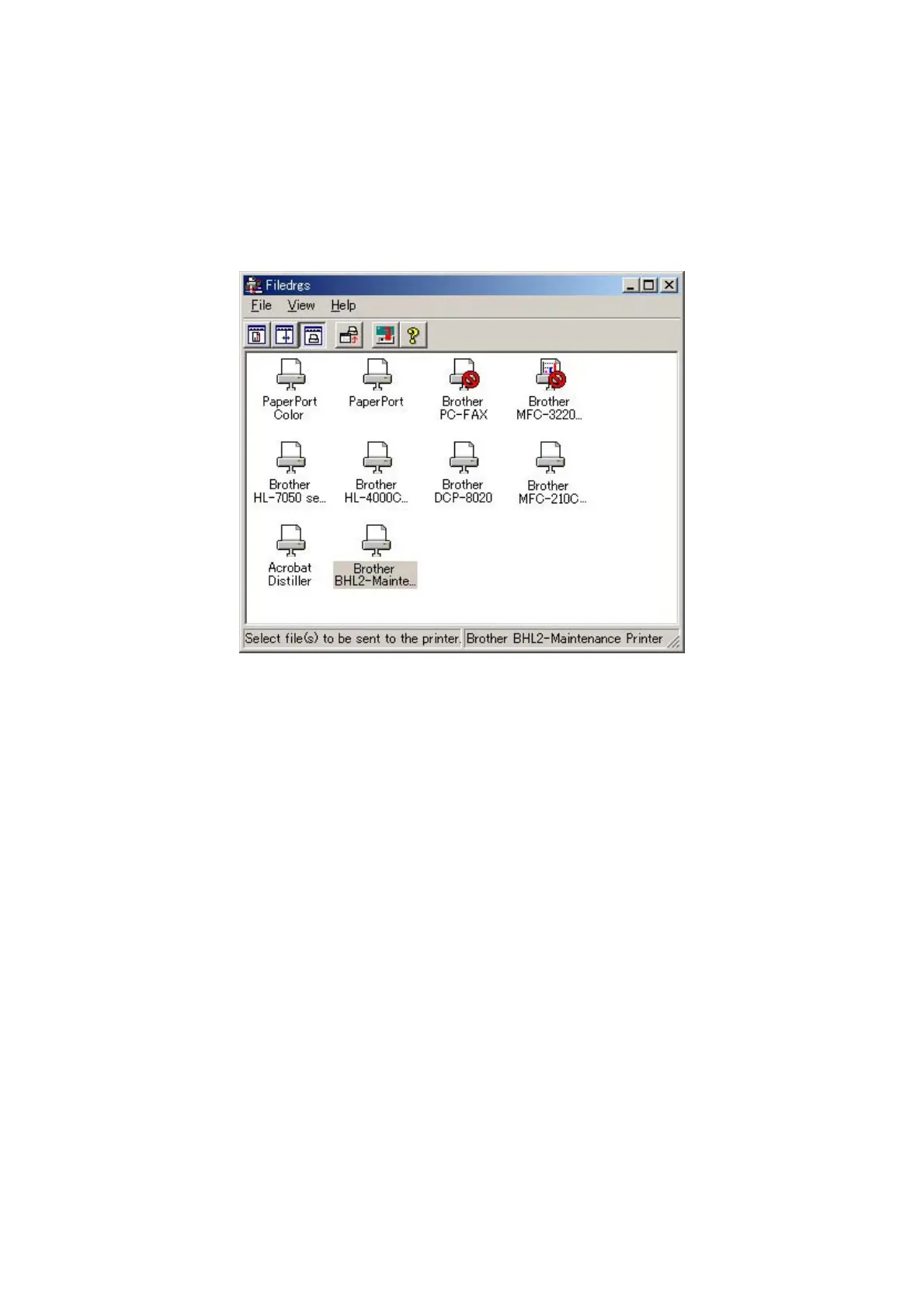

The Filedrgs window appears as shown below.
(2) Drag and drop the "media.prn" onto the BHL2-Maintenance Printer icon in the Filedrgs window
shown above.
The machine displays the "RECEIVING DATA" on the LCD and prints out the "MEDIA
CHECK" pattern (see page 7-21 for a sample printout).
(3) Measure the left and right margins on the printout.
(Example) Left: 1.3 mm, Right: 1.4 mm
If both margins are within the range from 0.9 to 1.1 mm, no adjustment is required.
(4) If either margin is out of the specified range, press the 6 key twice on the machine.
The "MEDIA SENSOR ADJ" appears. (Note: The Media Sensor refers to the paper width
sensor.)
(5) To make the machine ready for data entry, press the * key.
The "LEFT: 10" appears on the LCD.
To Next Page
