6.1.6 Components of Control Panel ASSY
For models with color LCD
(1) Place the control panel ASSY upside down.
(2) Pull four latches "x" and remove the control panel PCB to the front.
(3) Remove the two rubber keypads and the keys.

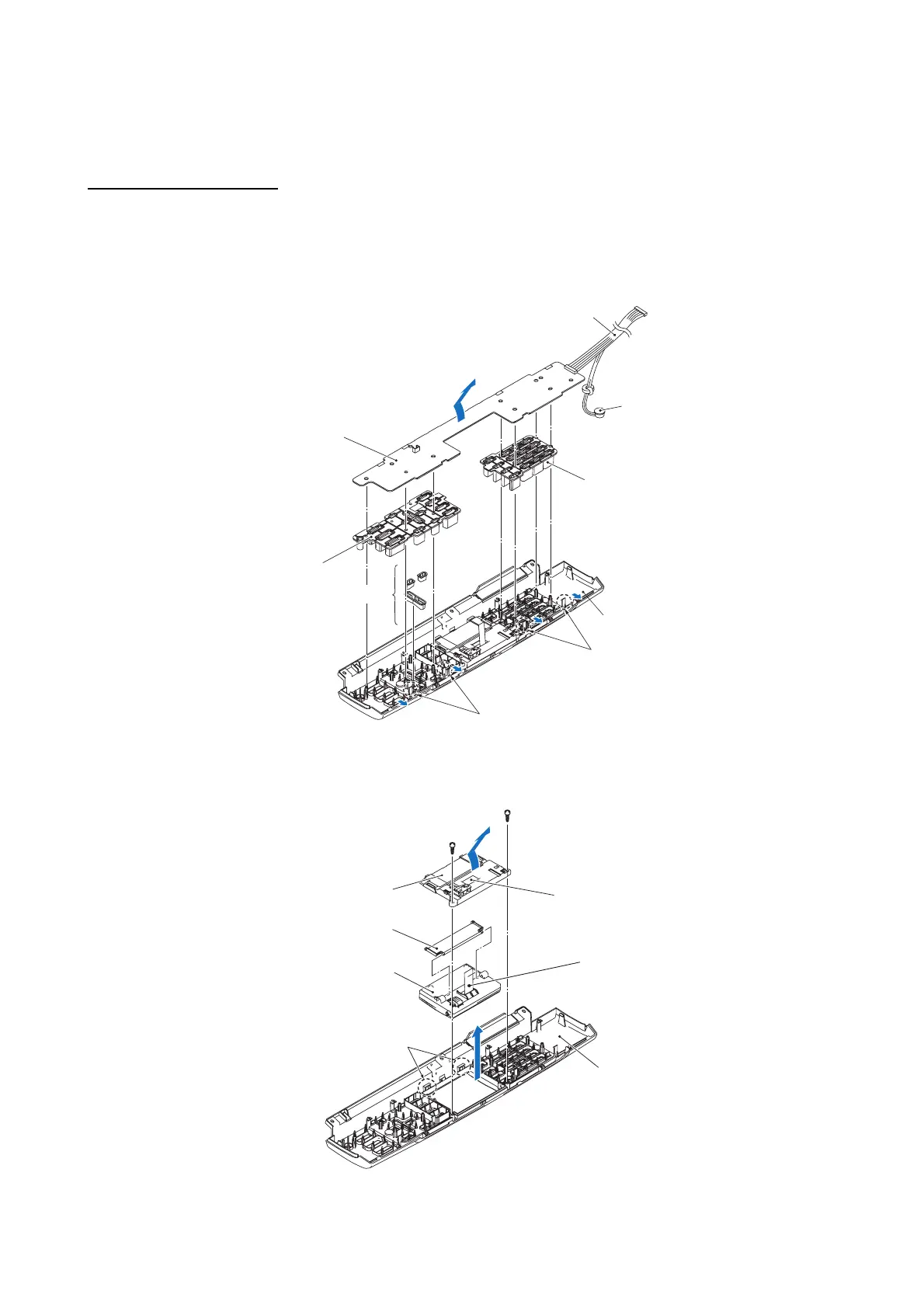

(6_26)
(Front)
Control panel PCB
Rubber keypad
Rubber keypad
Latches "x"
Latches "x"
Control panel
(placed upside down)
Panel-main harness
Keys
Microphone
(For models with TAD)
(4) Remove the two screws and lift up the LCD support cover.
(5) Take the color LCD unit out of the control panel.
(6) Warp the cable protection plate and release it from the color LCD.
(6_27)
Square opening
Taptite, bind B M3x8
LCD support cover
Cable protection plate
Color LCD
Latches
(Front)
Control panel
(placed upside down)
LCD flat cable
There are three types of color LCDs: 4.2-/3.3-inch wide color LCDs and 2.0-inch color
LCD. Their removal/installation procedures are the same although these three types are
different in shape. The illustrations here are based on the model with 2.0-inch color LCD.
To Next Page
