Brother MFC260C - Scanner Cover (Scanner Unit)

6-7 Confidential
6.1.2 Scanner Cover (Scanner Unit)
The scanner cover should be removed together with the ADF & document cover ASSY*
(document cover) whose removal procedure is given in Section 6.1.3. The disassembly of the ADF
& document cover ASSY* is detailed in Section 6.1.4.
*For models with ADF
(1) Open the scanner cover until it locks.

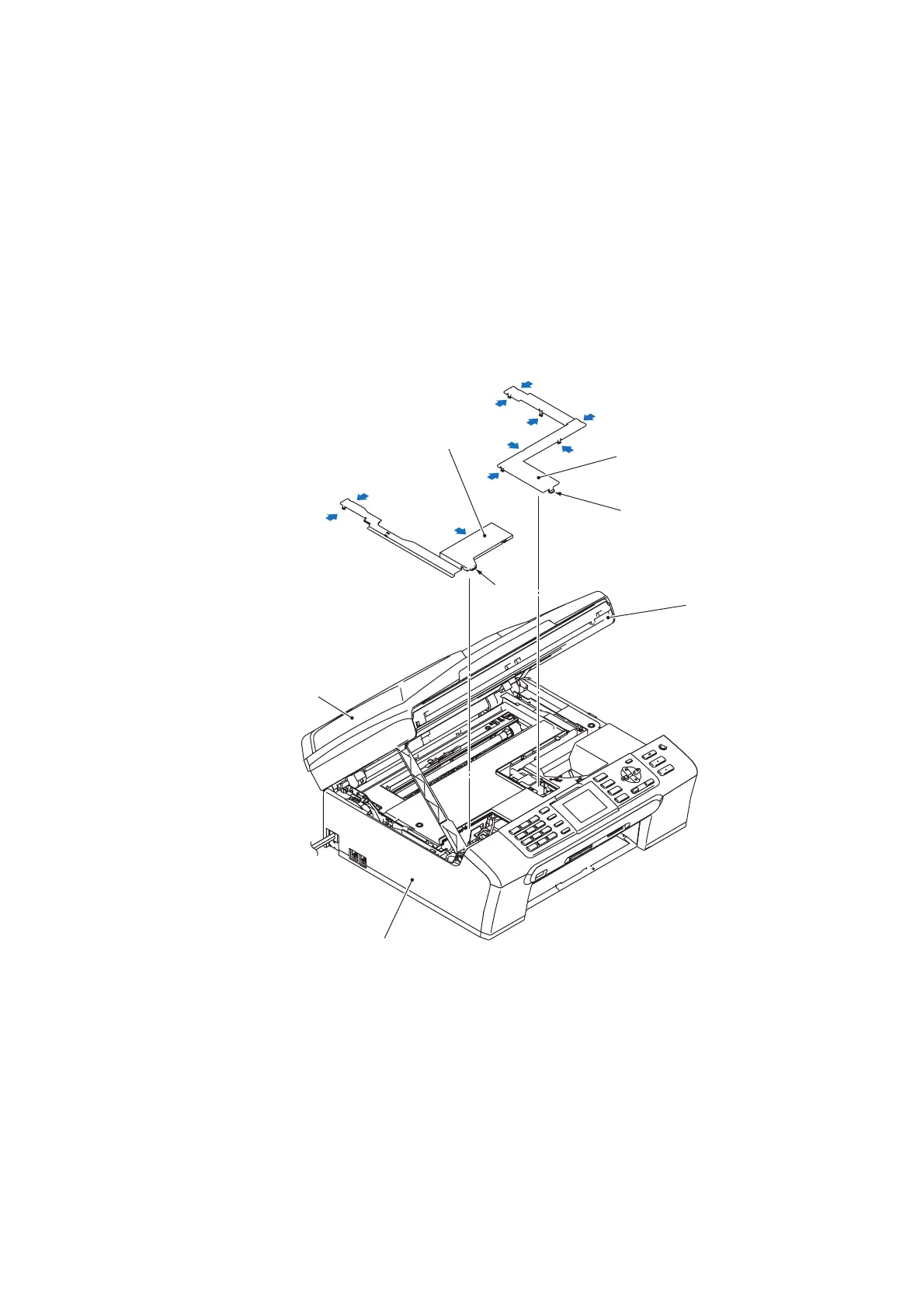

(2) Remove the CIS flat cable cover and the harness cover by inserting the tip of a flat screwdriver
into the slots and releasing the latches.
(6_04)
Slots (latches)
Harness cover
Slots (latches)
Upper cover
Scanner cover
(Scanner unit)
Pawl
Pawl
CIS flat cable cover
ADF & document
cover ASSY
