Brother MFC260C User Manual

6-75 Confidential
Upper cover
(Rear)
Document front sensor harness
Document rear sensor harness
CIS motor harness
ADF motor harness
Grounding wire
Main PCB
Route the bundle of document
front and rear sensor harnesses
on this side.
Route the CIS motor harness
and the bundle of ADF motor
harness and grounding wire
on this side.
(6_10_440CN)
Upper cover
(Rear)
Document rear sensor harness
Document front sensor harness
CIS motor harness
ADF motor harness
Grounding wire
Main PCB
Route the bundle of document
front and rear sensor harnesses
on this side.
Route the CIS motor harness
and the bundle of ADF motor
harness and grounding wire
on this side.
(6_10_240C)

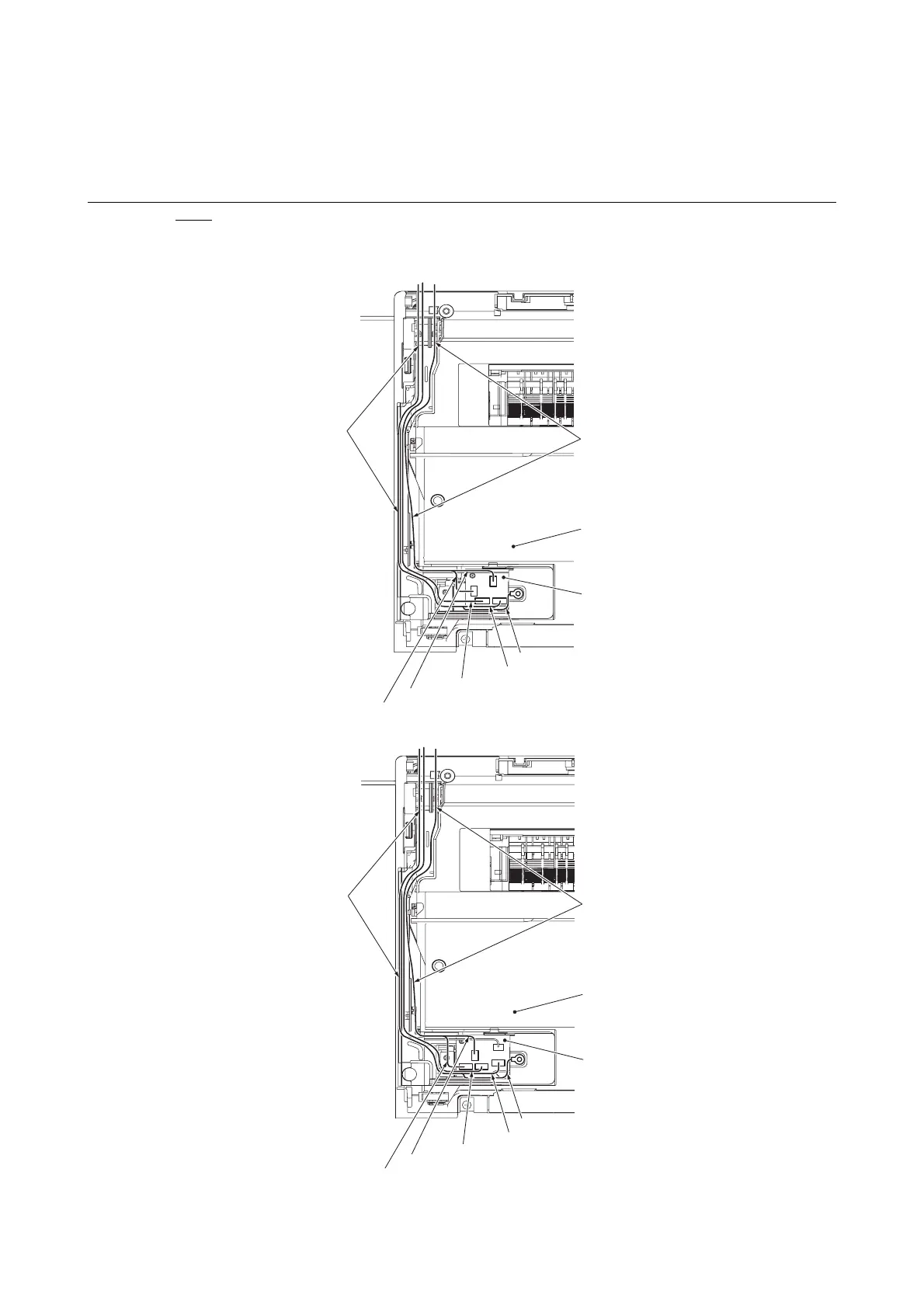

6.1.20 Routing of the Harnesses, Flat Cables, and Ink Supply Tubes
*For models with ADF
Routing A: CIS motor harness, document front and rear sensor harnesses*, ADF motor harness* and grounding
wire*
 On the upper cover
Models except MFC265C/260C/235C
MFC265C/260C
