6-30 Confidential
6.1.7 Charge Stand ASSY (for models with cordless handset)
(1) Remove the two screws from the bottom charge cover.
(2) Release the two latches on the bottom charge cover and pull the cover down and off the top
charge cover.
(3) While pulling the hook on the top charge cover outwards, slide the cover to the rear and take it
off the upper cover.
(4) Disconnect the charge harness from the charge PCB.

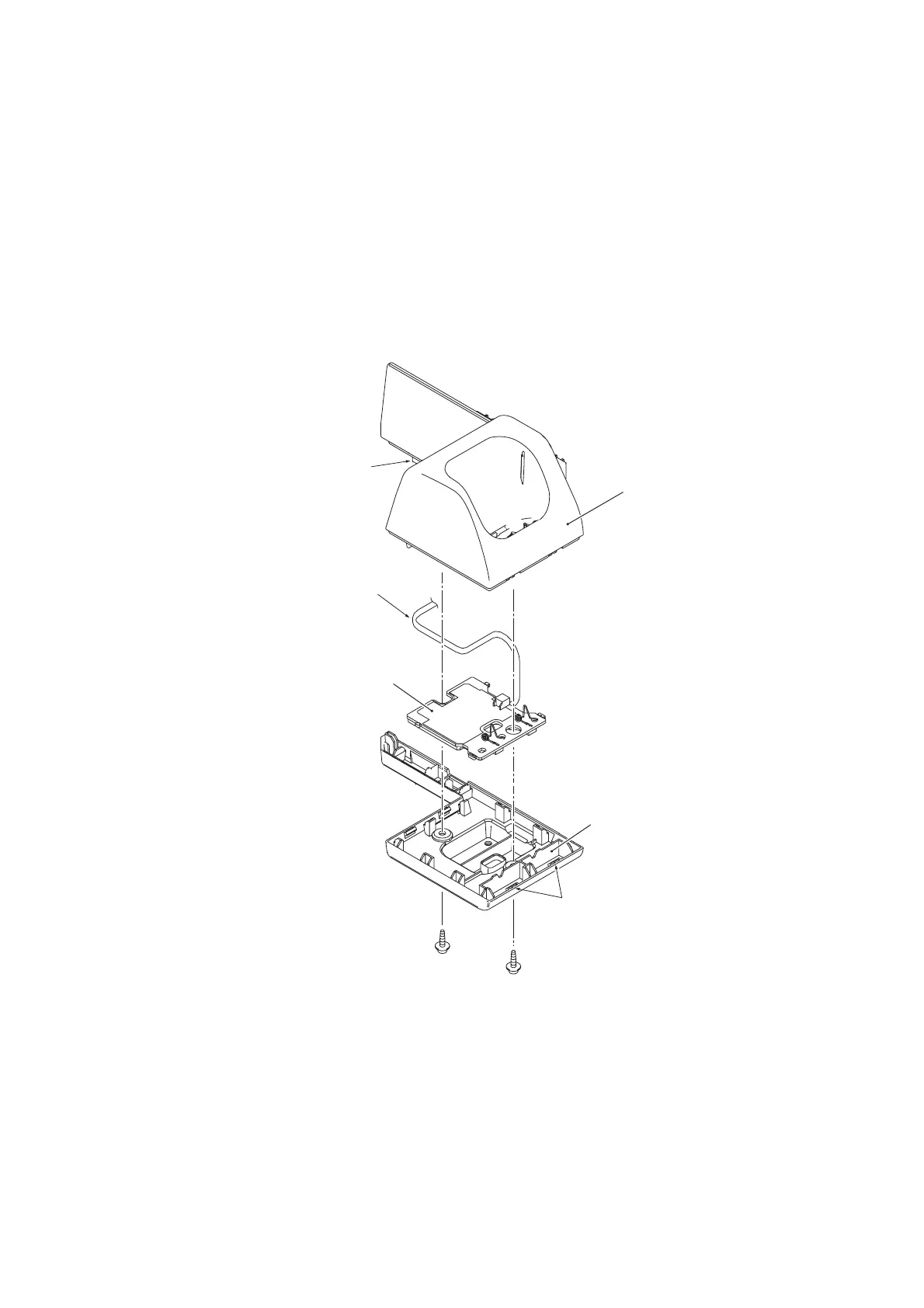

Top charge cover
Charge PCB
Bottom charge cover
(6_01_1)
Latches
Charge harness
Hook
Taptite, cup B M3x10
