Brother MFC260C User Manual

6-81 Confidential

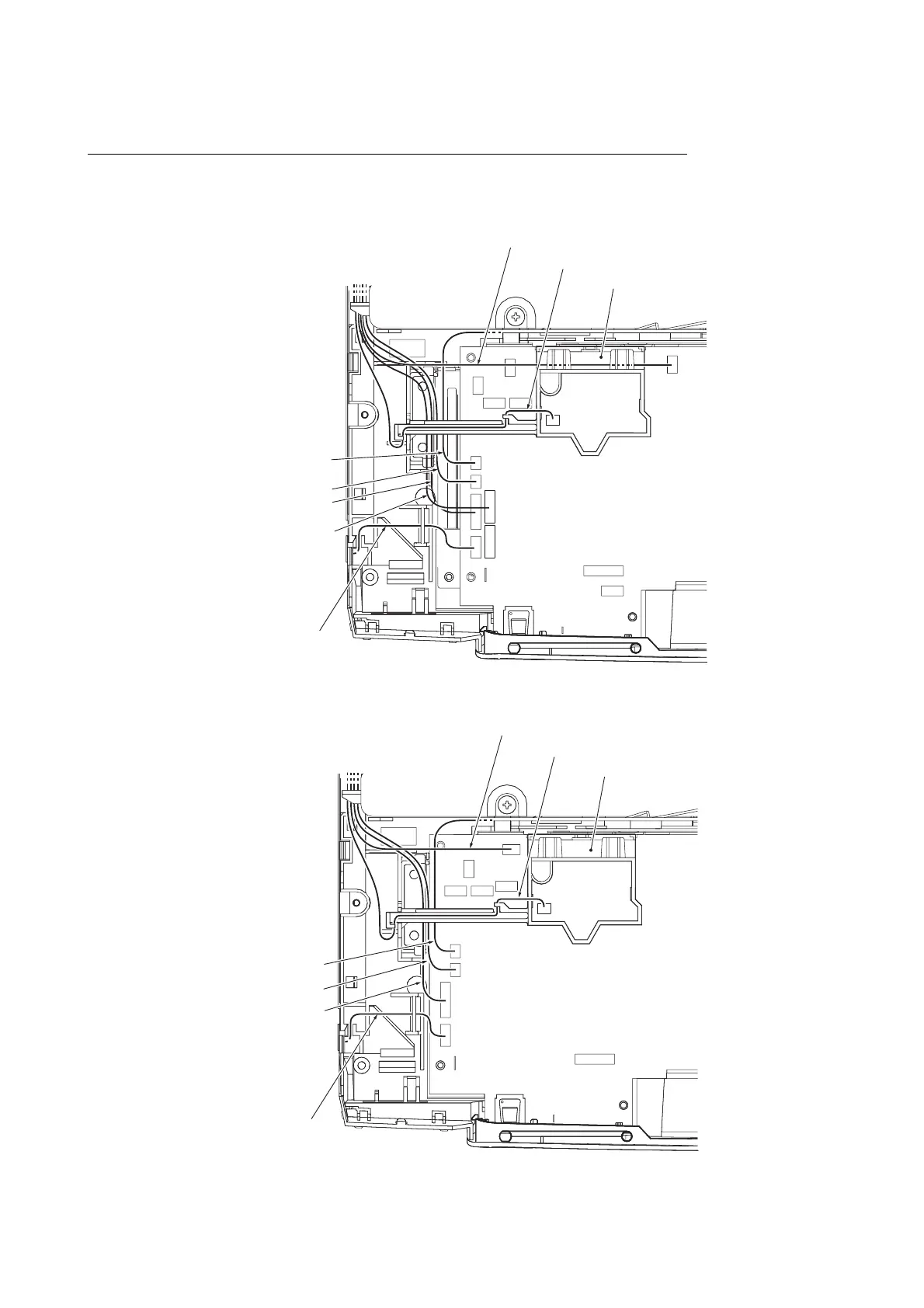

Routing F: Main-MJ (LINE) and Main-MJ (EXT) harnesses through the SDAA enclosure
Models except MFC265C/260C/235C
*
1
For models with handset
*
2
For models with cordless handset
SDAA enclosure
Main-MJ (LINE) harness (blue)
Main-MJ (EXT) harness (black)
Carriage motor harness
Paper feed motor harness
PF encoder/registration
sensor harness
Power supply harness
Hook switch harness
Charge harness
Main PCB
(6_36_1_e)
*
1
*
2
MFC265C/260C/235C
SDAA enclosure
Main-MJ (LINE) harness (blue)
Main-MJ (EXT) harness (black)
Carriage motor harness
Paper feed motor harness
PF encoder/registration
sensor harness
Power supply harness
Main PCB
(6_36_1_240C)
