Brother P-touch QL-710W User Manual

III - 9
(4) Turn the machine upside down.
(5) Remove the two screws.
(6) Pull up the section “A” of the panel cover, and remove the panel cover to the
direction of the arrow from the upper cover.

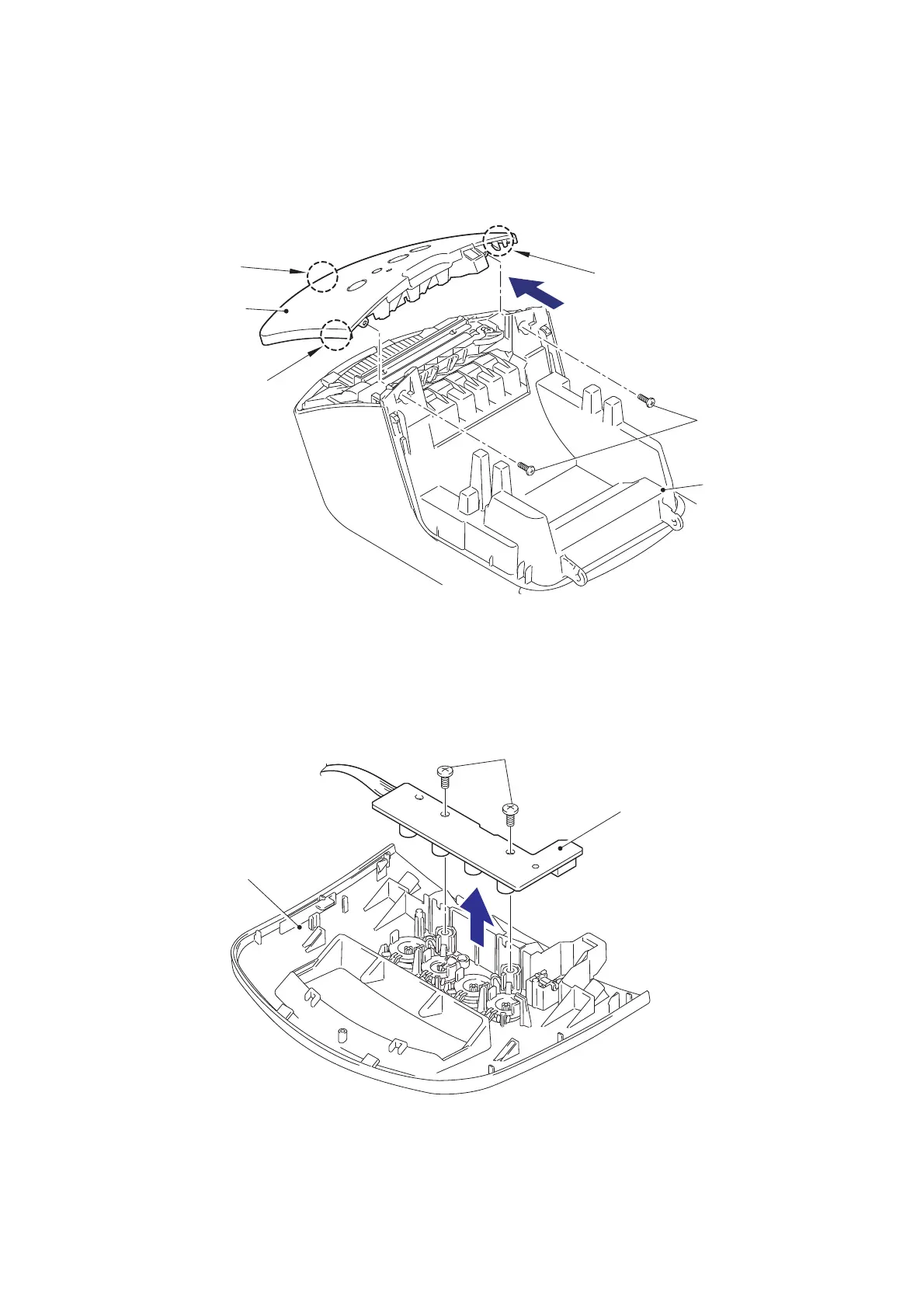

Fig. 3.4-8 Removing the Panel Cover (3)
(7) Turn the panel cover upside down.
(8) Remove the two screws, and then remove the SB PCB ASSY from the panel
cover.
Fig. 3.4-9 Removing the Panel Cover (4)
Screws
Panel cover
Hook
Hook
Section “A”
Upper cover
Screws
Panel cover
SB PCB ASSY

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
