III - 10

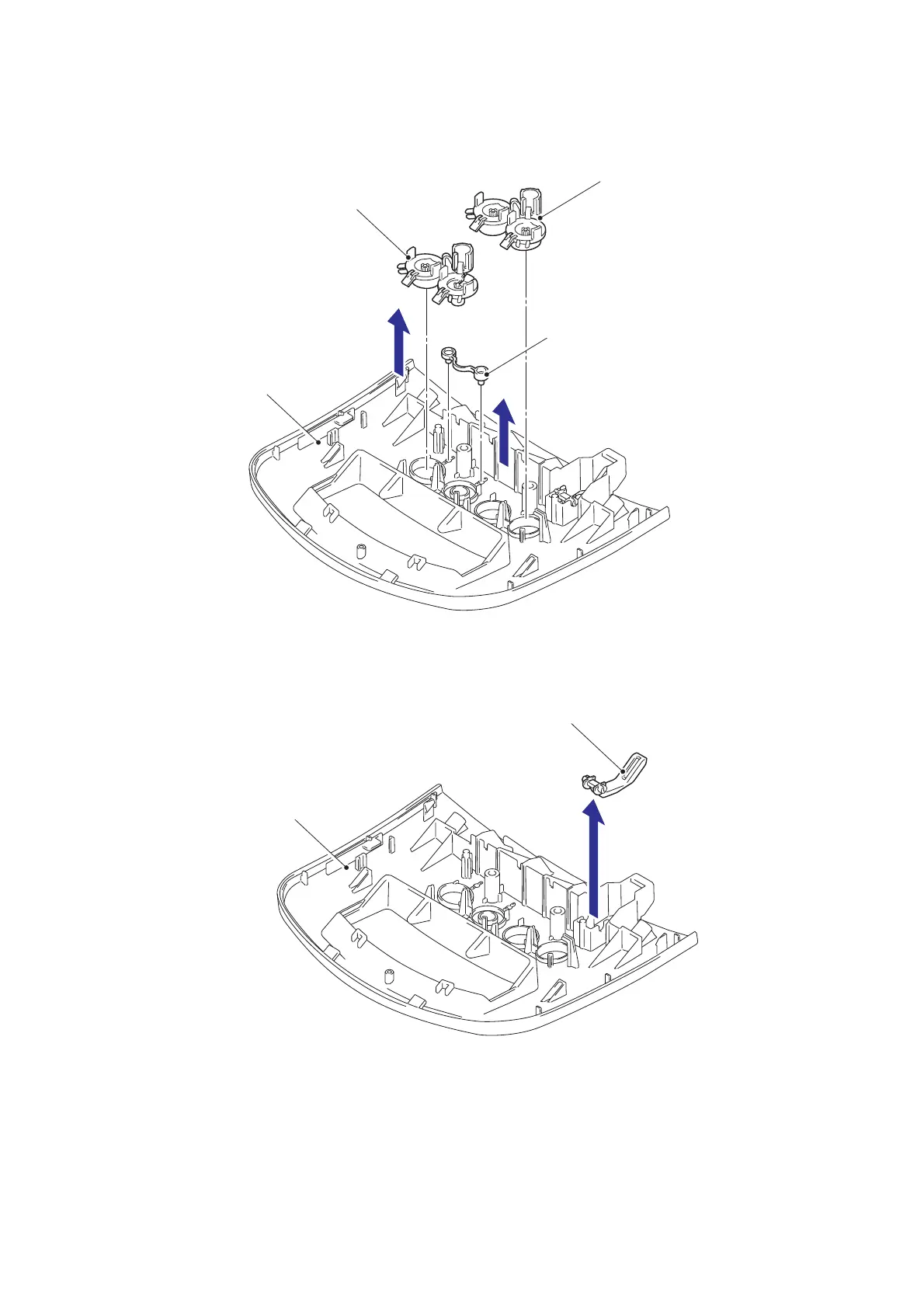

(9) Remove the power button, the feed button and the LED guide from the panel
cover.
Fig. 3.4-10 Removing the Panel Cover (5)
(10) Remove the cover sensor arm from the panel cover.
Fig. 3.4-11 Removing the Panel Cover (6)
Panel cover
LED guide
Feed button
Power button
Panel cover
Cover sensor arm
