III - 29
(3) Set the two head springs L onto the bosses of the mecha ASSY.

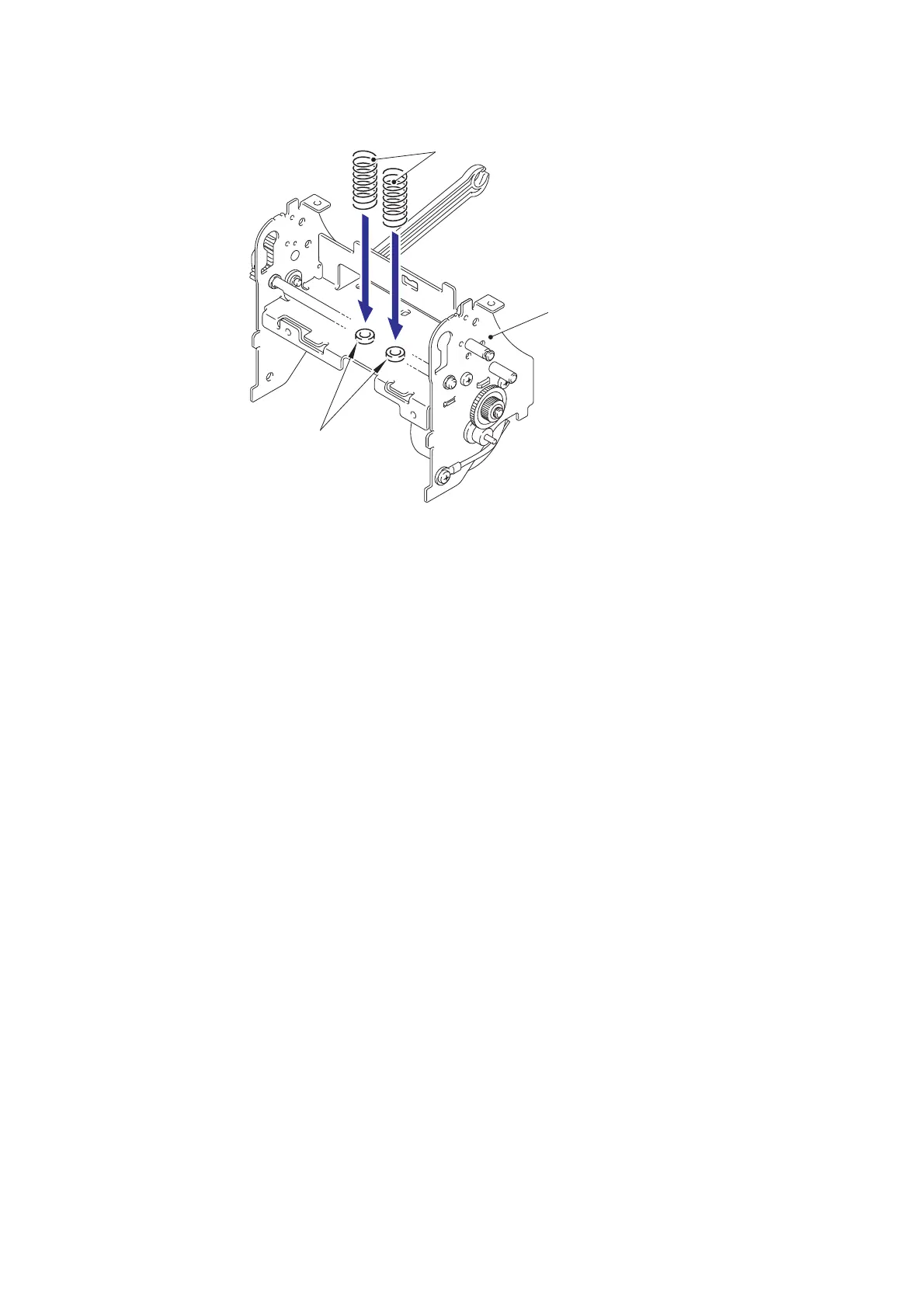

Fig. 3.5-3 Reassembling the Mecha ASSY (3)
Head springs L
Mecha ASSY
Bosses
