III - 33
(9) Set the platen gear, the double gear B, and the double gear C onto the mecha
ASSY in this order.
NOTE 1: Confirm that the hook of the double gear C is securely hooked on.
NOTE 2: Confirm that each gear moves smoothly.

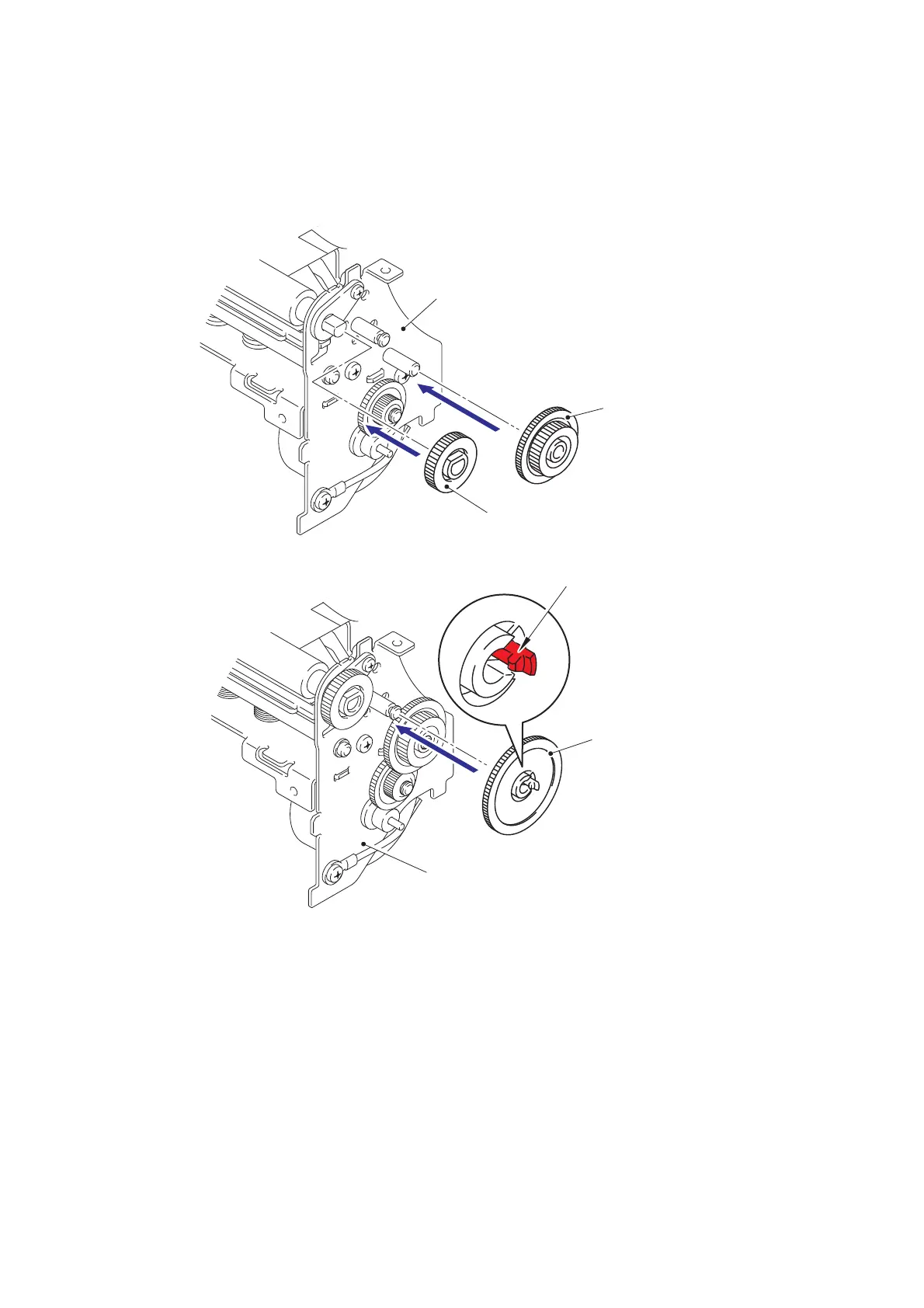

Fig. 3.5-8 Reassembling the Mecha ASSY (8)
Mecha ASSY
Double gear B
Platen gear
Hook
Double gear C
Mecha ASSY
9b
9a
9c
