III - 32
(6) Set the platen shaft bushing (left side) onto the mecha ASSY with the screw.
(7) Set the platen ASSY onto the mecha ASSY.

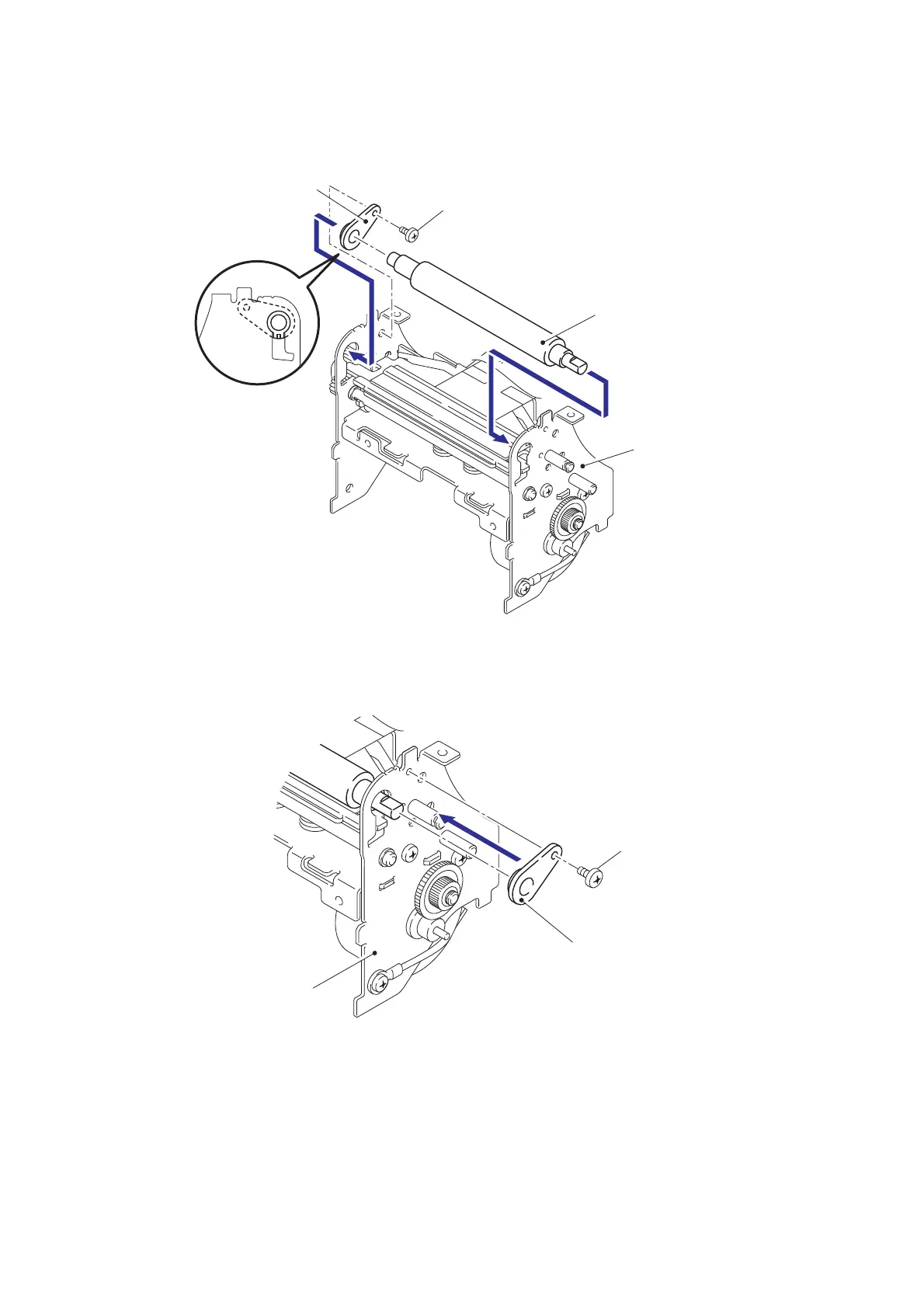

Fig. 3.5-6 Reassembling the Mecha ASSY (6)
(8) Set the platen shaft bushing (right side) onto the mecha ASSY with the screw.
Fig. 3.5-7 Reassembling the Mecha ASSY (7)
Platen shaft bushing
(Left side)
Platen ASSY
Mecha ASSY
Screw
Screw
Platen shaft bushing
(Right side)
Mecha ASSY
