(5) Set the head hold spring onto the mecha ASSY as shown in the figure below.
NOTE: Be careful not to cut your fingers.

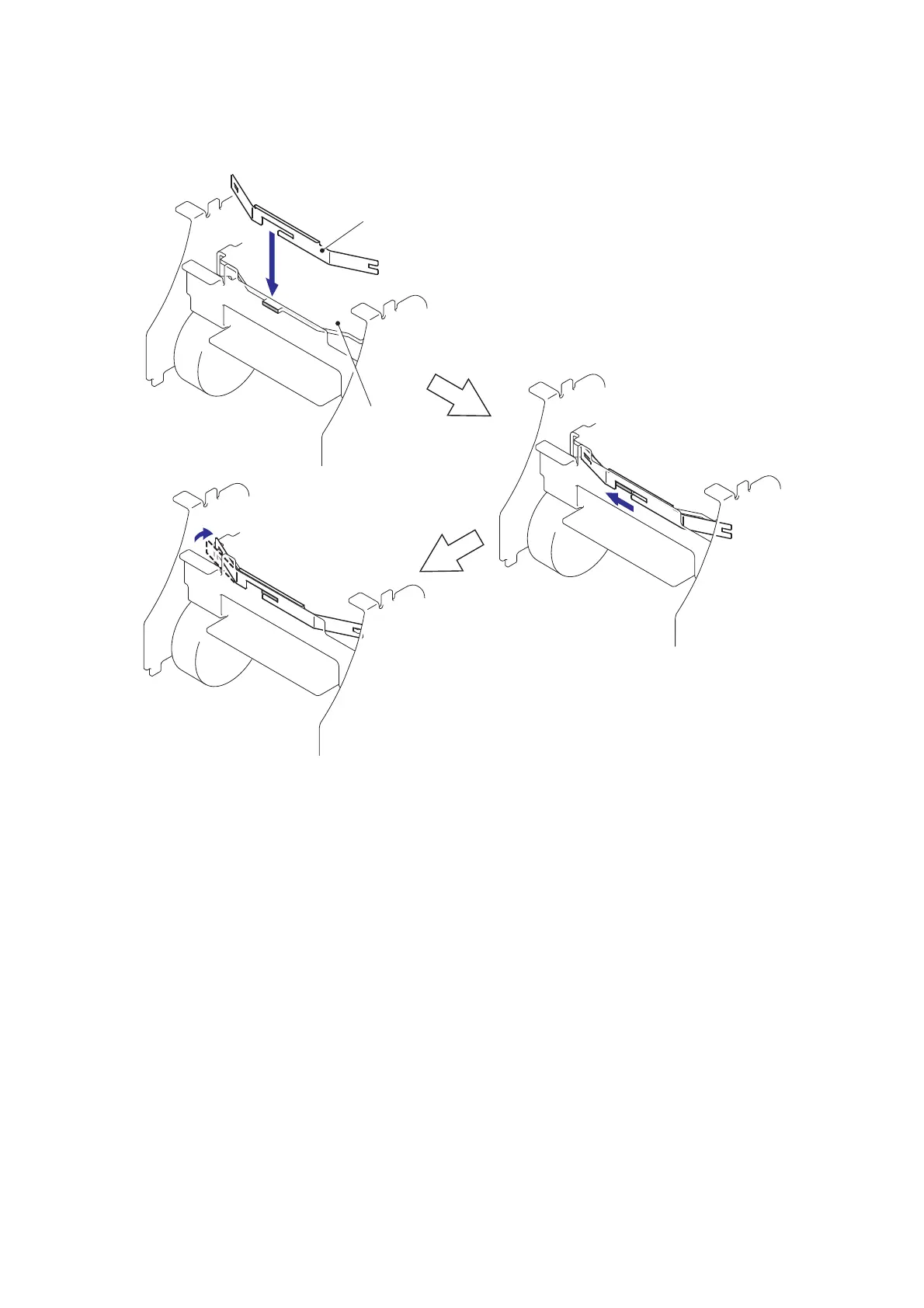

Fig. 3.5-5 Reassembling the Mecha ASSY (5)
Mecha ASSY
Head hold spring
5a
5b
5c
