3. FUNCTION SETTINGS
16
Standard device settings (500 to 599)
No. Setting range
Initial
value
Setting
units
Setting details
500
OFF, 1
～
3
1
1 Presser foot lifter SW function
OFF: Disabled
1: Presser foot lifter switch
2: Puller switch(change over) ON/OFF each time switch is pressed
3: Puller switch ON only while switch is being pressed
* Puller operation is enabled when MSW-960 is set to "1"
* If set to puller
switch, the presser foot lifting function using the switch is
disabled.
550
0
～
1
0
1
Automatic presser foot lifter type
0: Solenoid type
(*) Duty while chopping can be varied using MSW-565.
1: Pneumatic type
(*) Duty while chopping can be varied using MSW-566.
・
This is not initialized during initialization mode.
551
0
～
500
(ms)
150
(ms)
10
(ms)
Sewing machine motor start delay time from solenoid signal has been
turned OFF when presser foot is raised
559
OFF/1
～
2
OFF
1
Feed control ON/OFF when thread wiper
OFF: Disabled
1: (Not used) * Operation is the same as if set to "OFF".
2: Enabled (this is useful for reducing thread wiping errors)
(*) For -
[][]3 specifications, this only operates when the stitch pitch is 3
mm or less during thread trimming.
560
1
～
200 (ms)
1
(ms)
1
(ms)
Thread wiping and presser foot lift operation timing after thread trimming
・Thread wiping enabled
・
Thread wiping disabled
560: Delaying timing from sewing motor stops to thread wiper solenoid ON
561: Thread wiper solenoid ON time
562:
Delayed timing from thread wiper solenoid is OFF to presser foot lifter
solenoid is ON
561
10
～
200
(ms)
60
(ms)
10
(ms)
562
10
～
200
(ms)
50
(ms)
10
(ms)
563
10
～
990
(ms)
300
(ms)
10
(ms)

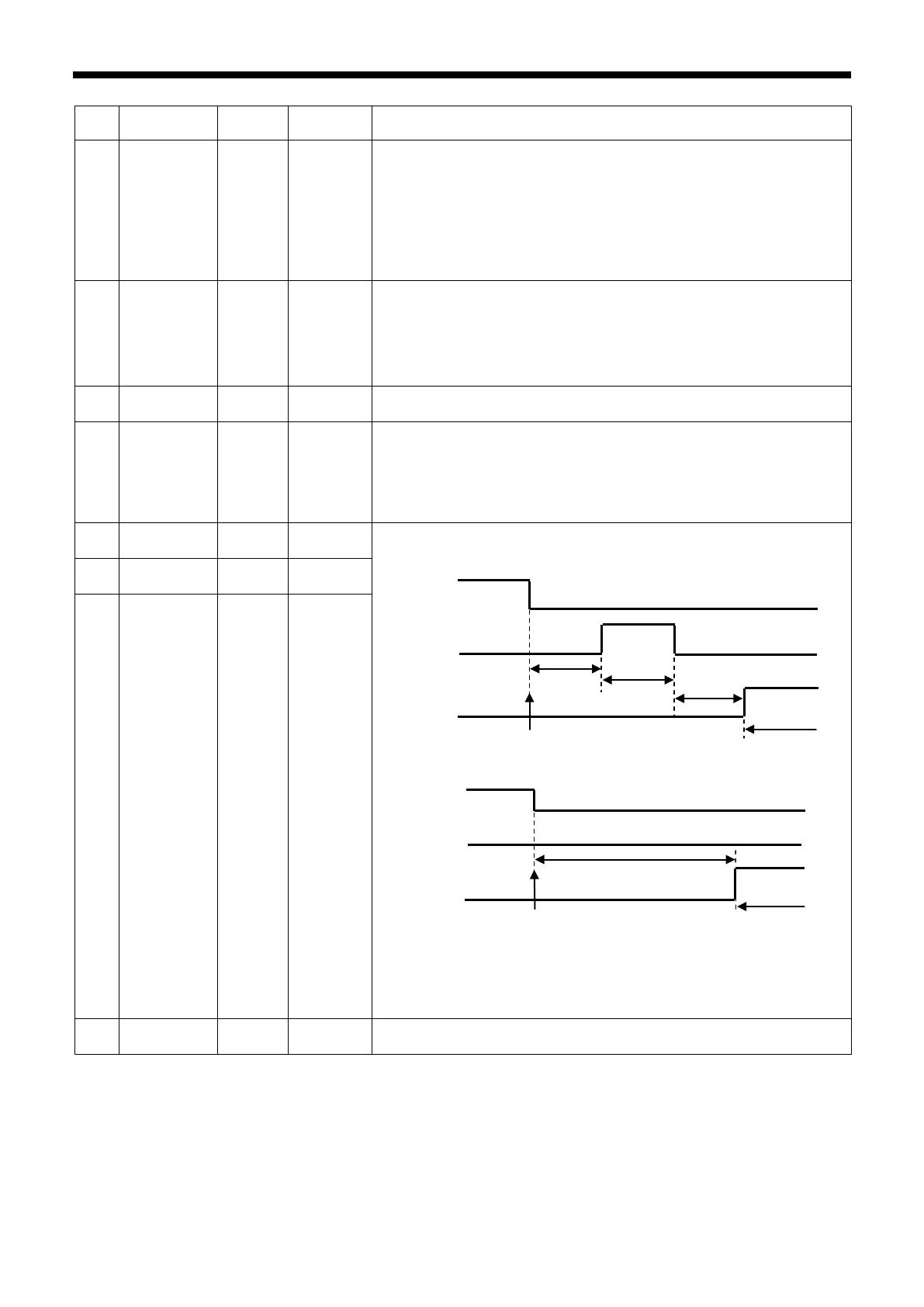

Fully ON time, output signal for presser foot lifter solenoid
No.560
No.561
No.562
No.563
Motor
Thread wiping
Presser foot lifting
Needle up stop
90ms
No.563
Motor
Thread wiping
Presser foot lifting
Needle up stop
