Brother TD-2020 Service Manual

II - 2
2.1.2 Press Contact and Release Mechanism of Thermal Head
The head ASSY is pressed firmly against the platen roller by the force of the head
spring. When the release lever is lifted, the lock of the release lever is unlocked so
that the roll cover is released. The tape can be loaded into the machine in this state.
When the head ASSY is pressed against the platen roller, close the roll cover.

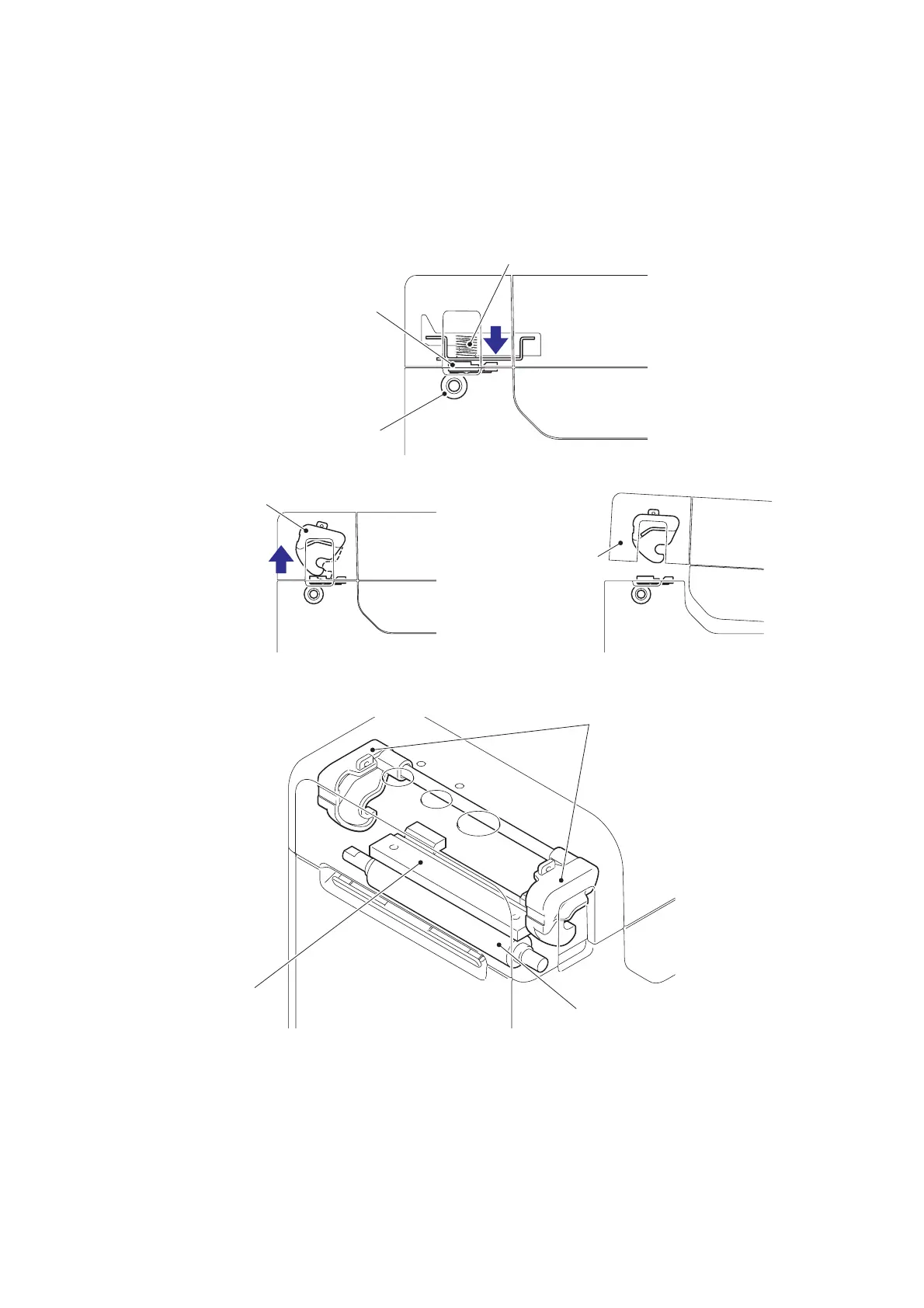

Figure 2.1-2 Press Contact and Release Mechanism of Thermal Head
Head spring
Head ASSY
Platen roller
Release lever
Roll cover
Release levers
Platen roller
Head ASSY

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
