[ 8 ] Removing the Roll Cover Front, Roll Cover Clear, and Roll Cover Outer B
(1) Remove the four taptite bind B M2.6X8 screws from the back side of the roll
cover inner.
(2) Remove the six taptite bind B M2.6X8 screws. Lift the roll cover outer B to
remove the roll cover front and roll cover clear from the roll cover inner.

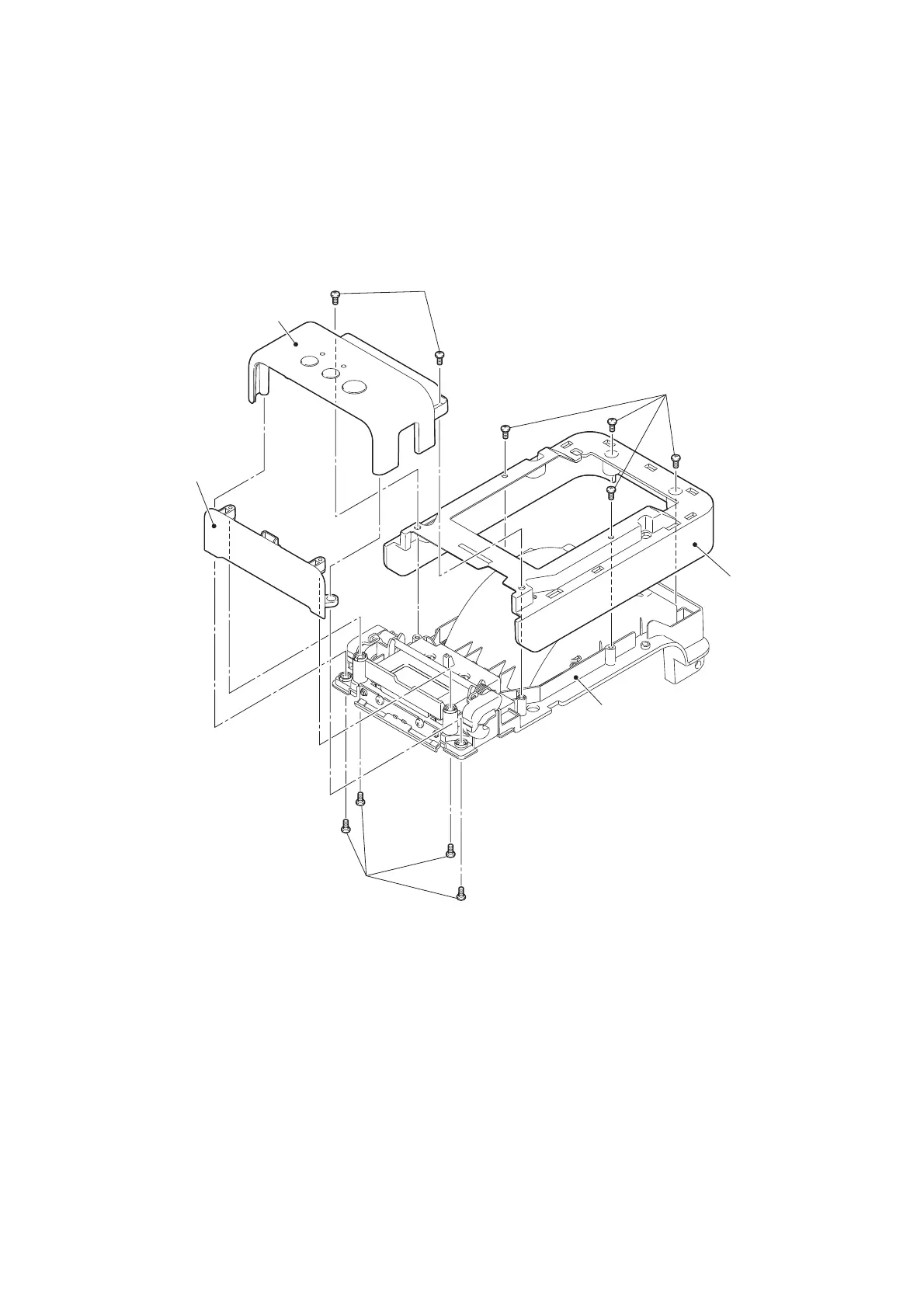

Figure 3.4-11
Taptite bind B
M2.6X8
Roll cover clear
Roll cover inner
Taptite bind B M2.6X8
Roll cover outer B
Roll cover front
Taptite bind B M2.6X8
