Brother TD-2020 Service Manual

1 - 14
1.2.11 Adjust Transmission Sensor
Adjusts sensor read value to allow transmission sensor to detect label and separator. Also
checks cover sensor function when the cover is opened or closed. 80GS OJI roll ASSY must be
used for sensor adjustment. Cut the media in advance as it is wider than the machine. Also,
make sure that the sensor is positioned properly. Starting inspection with wrongly positioned
sensor would cause shipment of product which is unable to detect media gap.

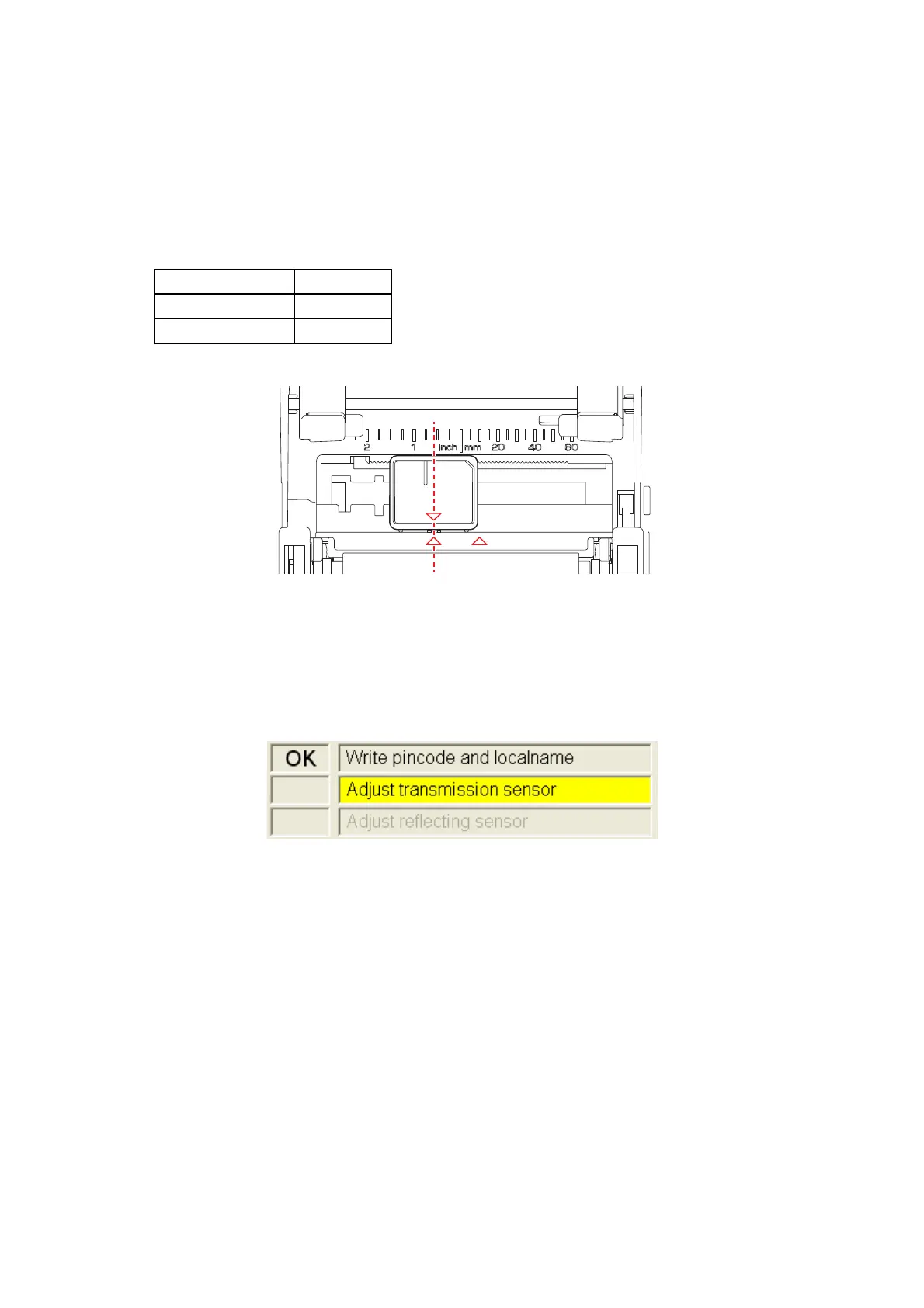

Figure 17. Correct position of the sensor
(1) Open the cover of the machine to set 80GS OJI roll ASSY to the sensor read section and
close the cover. Set the roll ASSY so that the gloss surface of the media faces up.
(2) Make sure that the "Adjust transmission sensor" field is highlighted in yellow and press
the [Run] button to start the inspection.
Figure 18. "Adjust transmission sensor" start-up
Model Inspection
TD-2000 Valid
TD-2100N Valid

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
