Brother TD-2020 Service Manual

IV - 7

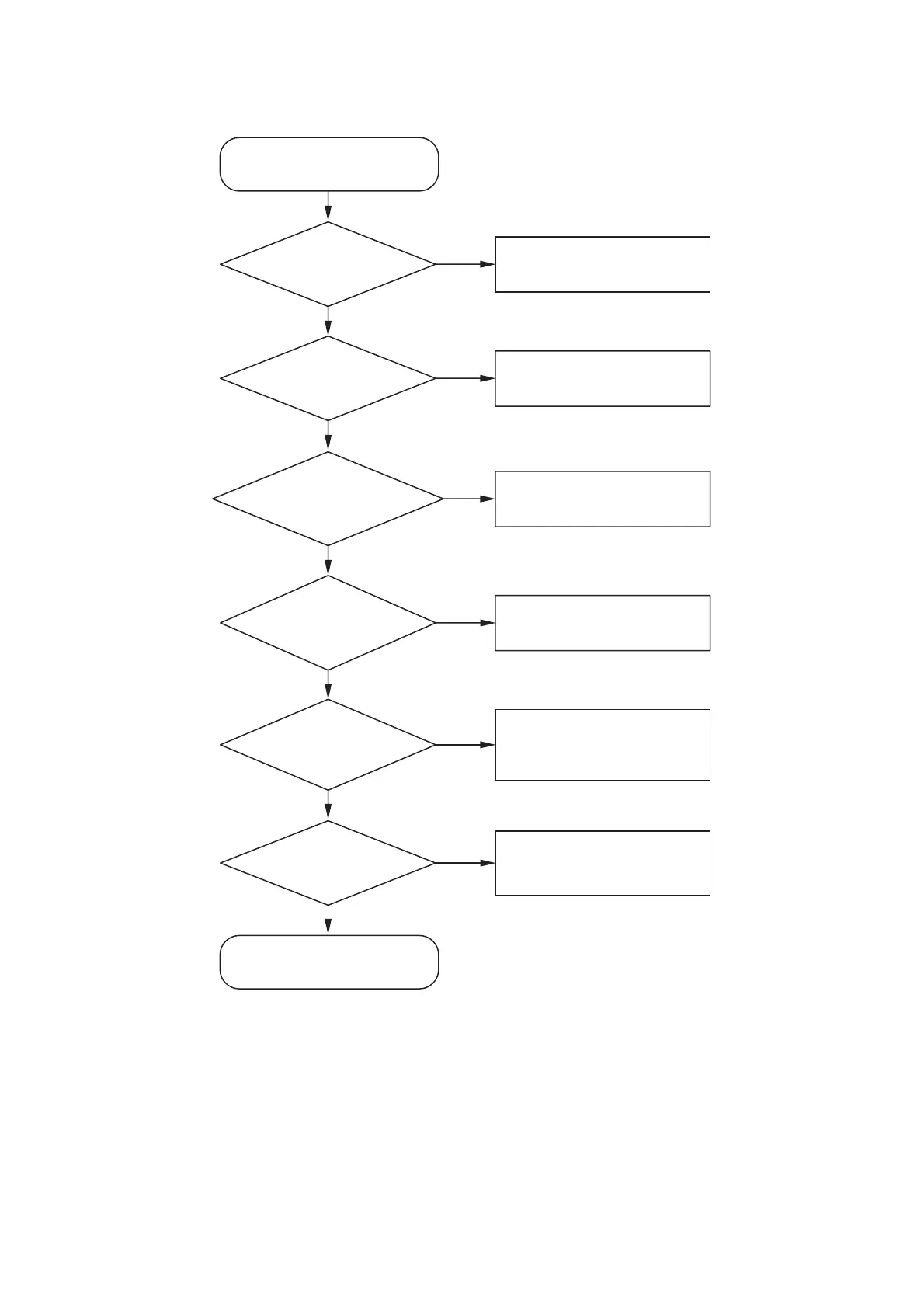

[ 6 ] The RS232C interface malfunction.
Y
N
Y
N
Are the printer driver
and P-touch editor installed
onto the PC correctly?
Y
N
Y
N
Is the interlink cable
(cross) used?
The interface malfunction.
Is the RS232C cable
connected correctly?
Correct the connection.
Use the interlink cable.
Re-install the driver and editor
correctly.
Set the baud rate correctly.
Set the system of the flow control
of the PC to the "Hardware".
The SATA cable is defective.
Replace the cable.
Y
N
N
Is the port set to COM port
in printer driver property?
Y
Is the setting
(including baud rate flow
control) of printer and
PC correct?
Is the SATA cable damaged?
Set to COM port.
Replace the main PCB ASSY.

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
