Brother TD-2020 Service Manual

III - 10
[ 5 ] Removing the Roll Cover ASSY
(1) Release the edge of the damper spring from the damper groove. Remove the
retaining ring 2.5 and pull out the damper shaft to remove the damper and the
damper spring.
(2) Release the edge of the damper spring 2 from the damper groove. Remove the
retaining ring 2.5 and pull out the damper shaft to remove the damper and the
damper spring 2.
(3) Remove the roll cover ASSY from the machine and pull out each harness from
the two holes of the machine.

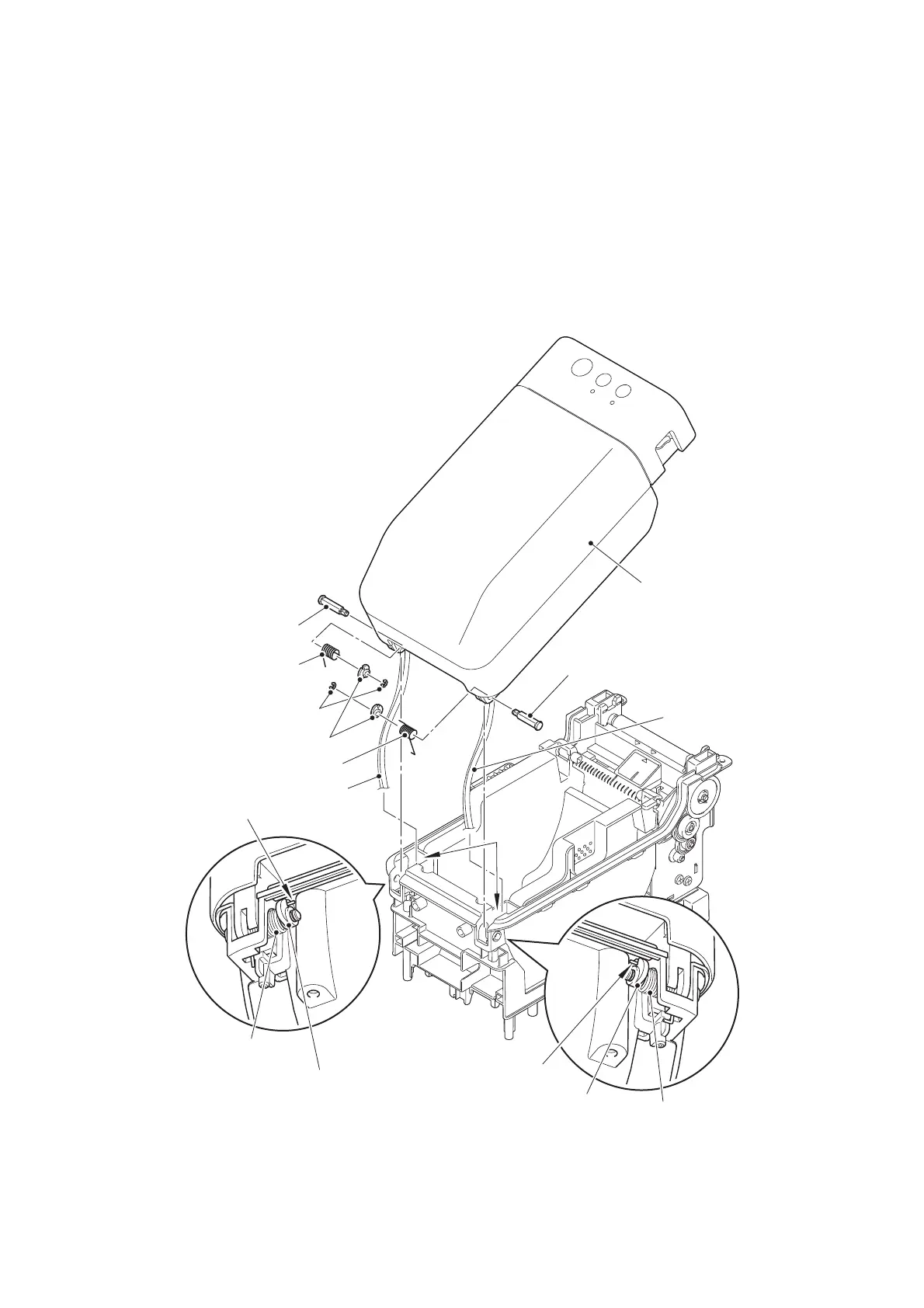

Figure 3.4-8
Damper shaft
Roll cover ASSY
Damper shaft
Harness
Damper spring 2
Retaining rings E2.5
Dampers
Damper spring
Harness
Edge
Damper spring 2
Damper
Holes
Edge
Damper
Damper spring

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
