III - 7
[ 3 ] Removing the Main PCB ASSY
(1) Turn the machine upside down.
(2) Remove the two tapes A from the main PCB ASSY and the machine.
(3) Disconnect all harnesses connected to main PCB ASSY.
(4) Remove the five taptite bind B M2.6X8 screws to remove the main PCB ASSY
from the machine.
(5) Remove the tape B and tape C from the main PCB ASSY.

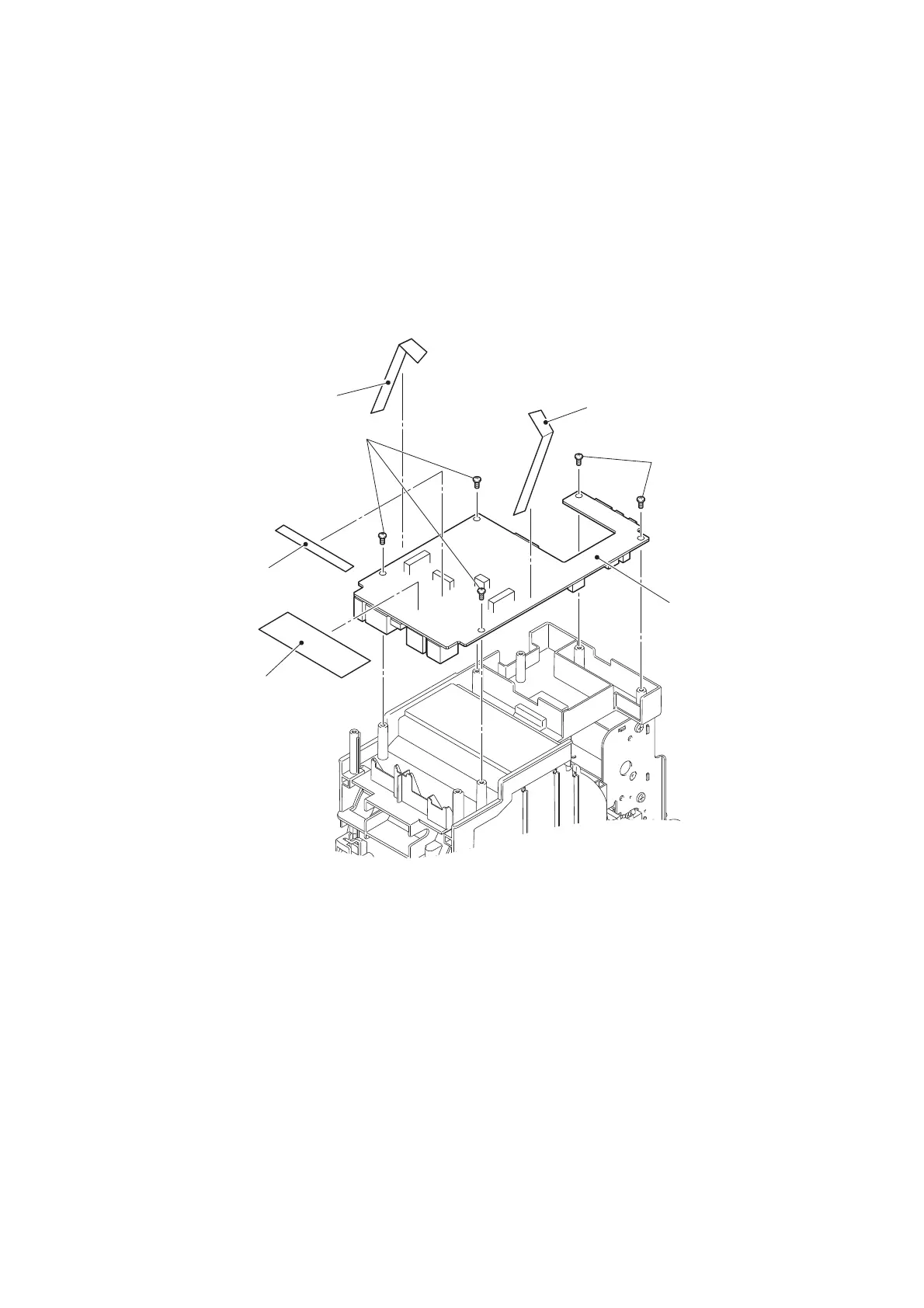

Figure 3.4-5
Tape C
Tape A
Main PCB ASSY
Tape B
Taptite bind B M2.6X8
Tape A
Taptite bind B M2.6X8
To Next Page
