Brother TD-2020 - 13 ]Attaching the Roll Cover ASSY

III - 42
[ 13 ]Attaching the Roll Cover ASSY
(1) Insert each harness into the two holes of the machine, and set the roll cover
ASSY to the machine.
(2) Align the cut surface and set the damper shaft to the machine. Align edge A of the
damper spring to the groove of the machine, and set it to the damper shaft. Align
the cut surface to set the damper to the damper shaft, and attach the retaining ring
E2.5. Engage edge B of the damper spring with the damper groove.
NOTE: When assembling the damper, push the damper spring outward.
(3) Align the cut surface and set the damper shaft to the machine. Align edge C of the
damper spring 2 to the groove of the machine, and set it to the damper shaft. Align
the cut surface to set the damper to the damper shaft, and attach the retaining ring
E2.5. Engage edge D of the damper spring 2 with the damper groove.
NOTE: When assembling the damper, push the damper spring 2 outward.

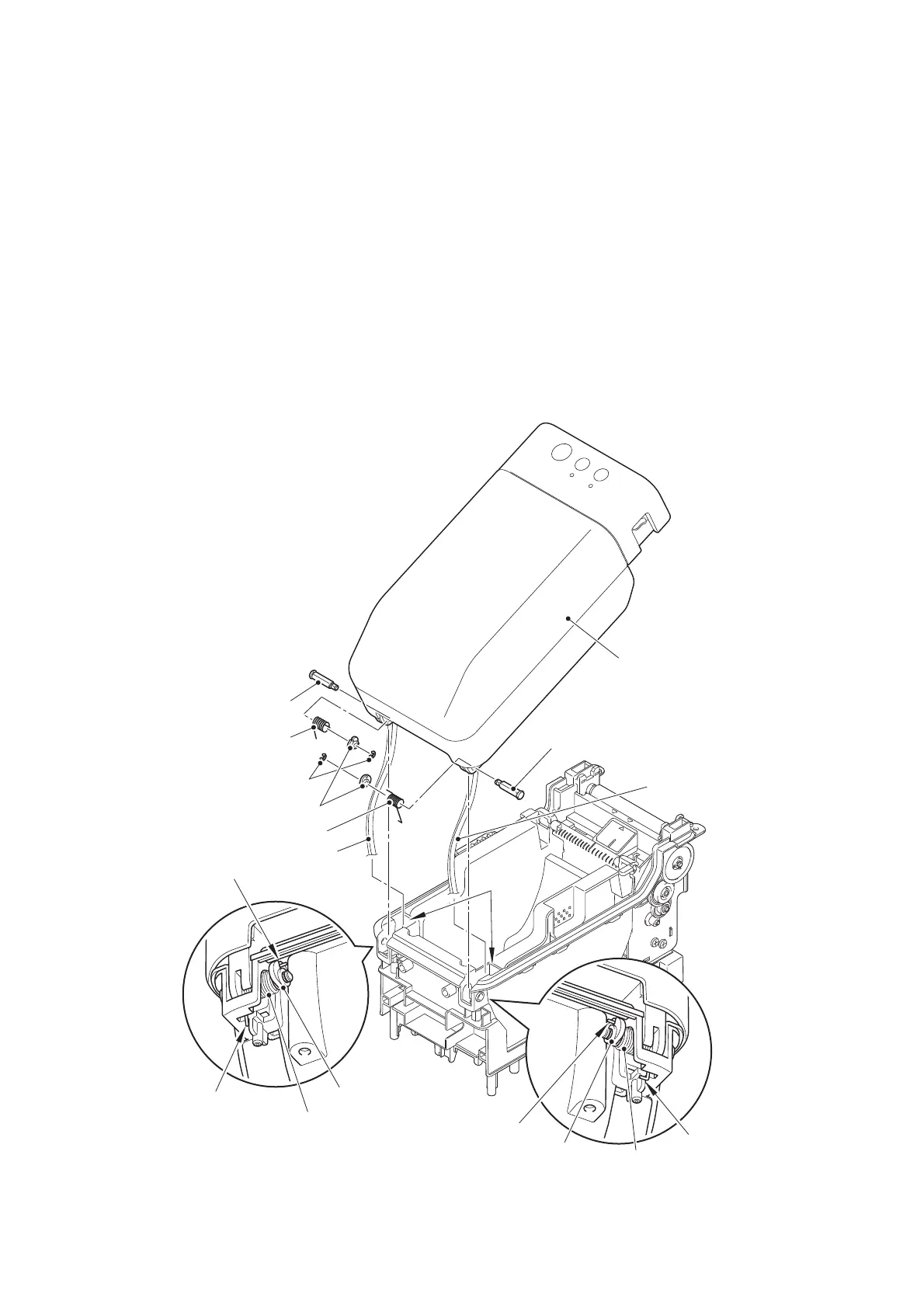

Figure 3.5-17
Damper shaft
Roll cover ASSY
Damper shaft
Harness
Damper spring 2
Retaining rings E2.5
Dampers
Damper spring
Harness
Edge D
Damper spring 2
Damper
Holes
Edge B
Damper
Edge C
Damper spring
Edge A
