Brother TD-2020 Service Manual

III - 20
[ 14 ]Removing the Cover Open Sensor and Movable Sensor PCB ASSY
(1) Remove the taptite bind B M2.6X6 screw to remove the SW hold plate and the
cover open sensor from the upper cover.
(2) Slide the movable sensor PCB ASSY in the direction of the arrow, and remove it
by aligning its four tabs to four notches on the upper cover.

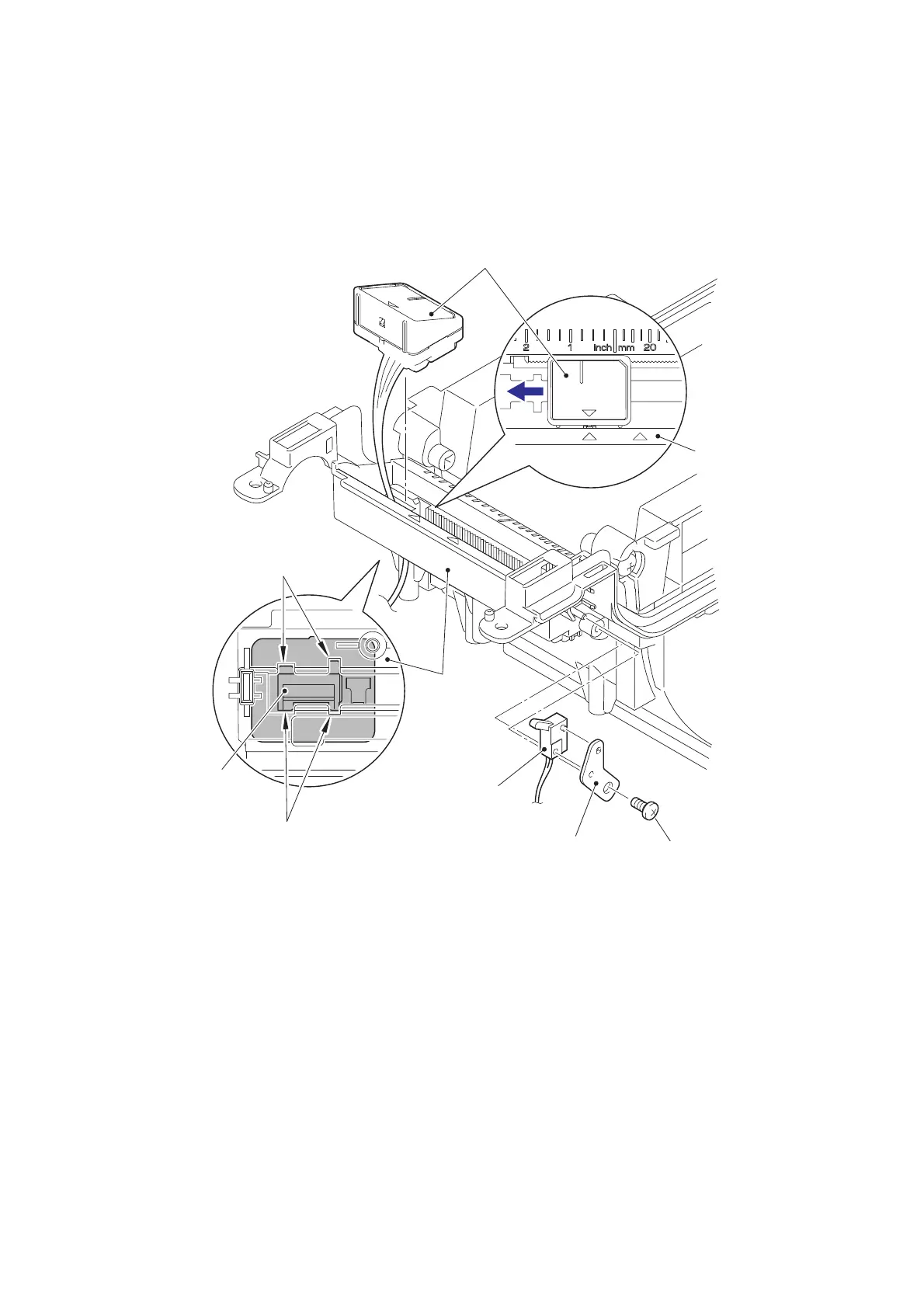

Figure 3.4-18
Tabs
Movable sensor PCB ASSY
Movable sensor
PCB ASSY
Cover open sensor
SW hold plate
Tabs
Taptite bind B M2.6X6
Upper cover
Upper cover

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
