Brother TD-2020 Service Manual

1 - 15
(3) Check that the separator jig set in the sensor read section on the machine is matched with
the image displayed on the "Adjust transmission sensor" window.
→ If matched, step to the next.
→ If not matched, hold down the [NG] button to stop the inspection.

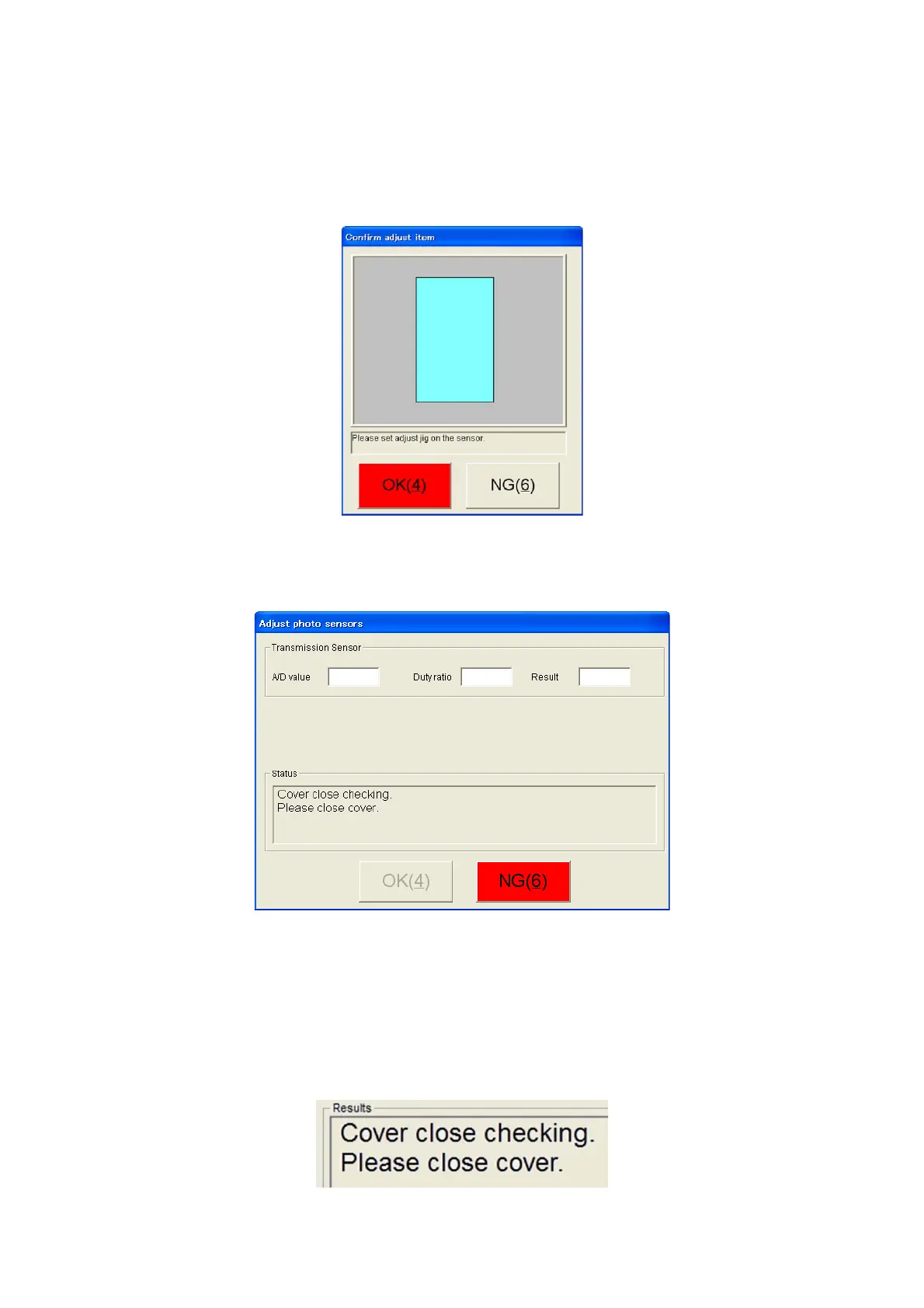

Figure 19. "Adjust transmission sensor" window
(4) The adjust photo sensor window appears as soon as the inspection starts.
Figure 20. "Adjust photo sensors" window
If the cover of the machine is open at that time, the "Adjust photo sensors"
window is closed automatically and the inspection ends up as NG. "Cover check
error. Cover is open." appears in the "Results" field.
→ The inspection is inoperable if the cover of the machine is open at the beginning of the
inspection. Set the separator jig in the sensor read section and make sure to close the cover.

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
