Using the M4 TORNADO Software
130
User Manual

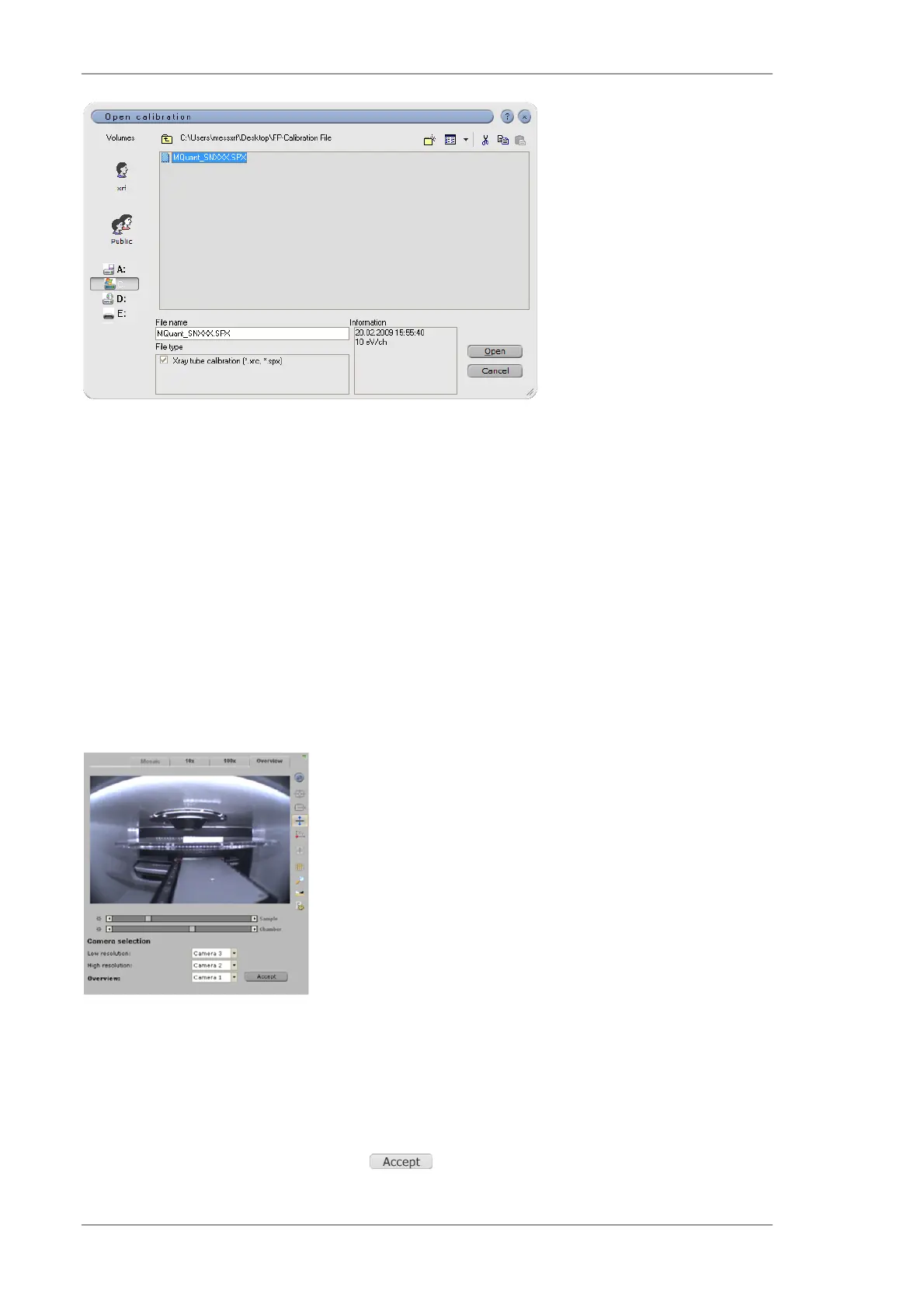

Fig. 60 Selection of a calibration file
6.12 Adjustment of the Instrument
The instrument must be carefully adjusted so that the full functionality is guaranteed. For the
adjustment the tabs in the workspace System can be used. The following adjustment procedures
are necessary.
6.12.1 Selection of camera ports
The attribution of the cameras to different USB ports will be done automatically by the software.
Therefore, in case of using another USB port on the PC it is possible that the attribution of the
cameras changes (avoid this if possible, please keep the original video USB port). The correct
definition of the cameras to the ports is possible in the workspace System>>Imaging.
Fig. 61 Selection of the camera ports
For that purpose the cameras have to be selected with the Tabs. The corresponding camera will
be highlighted (bold type) in the list shown below the image. The camera corresponding to the
selection can be chosen from the menu next to the highlighted camera (1,2 or 3).
These settings have to be confirmed with .
