Bruker M4 TORNADO User Manual

Using the M4 TORNADO Software
92
User Manual
Automatic stop of the measurement
according to the required accuracy
Finishing of the measurement with
given measurement time or preset
counts in a defined energy region
Settings for quantification

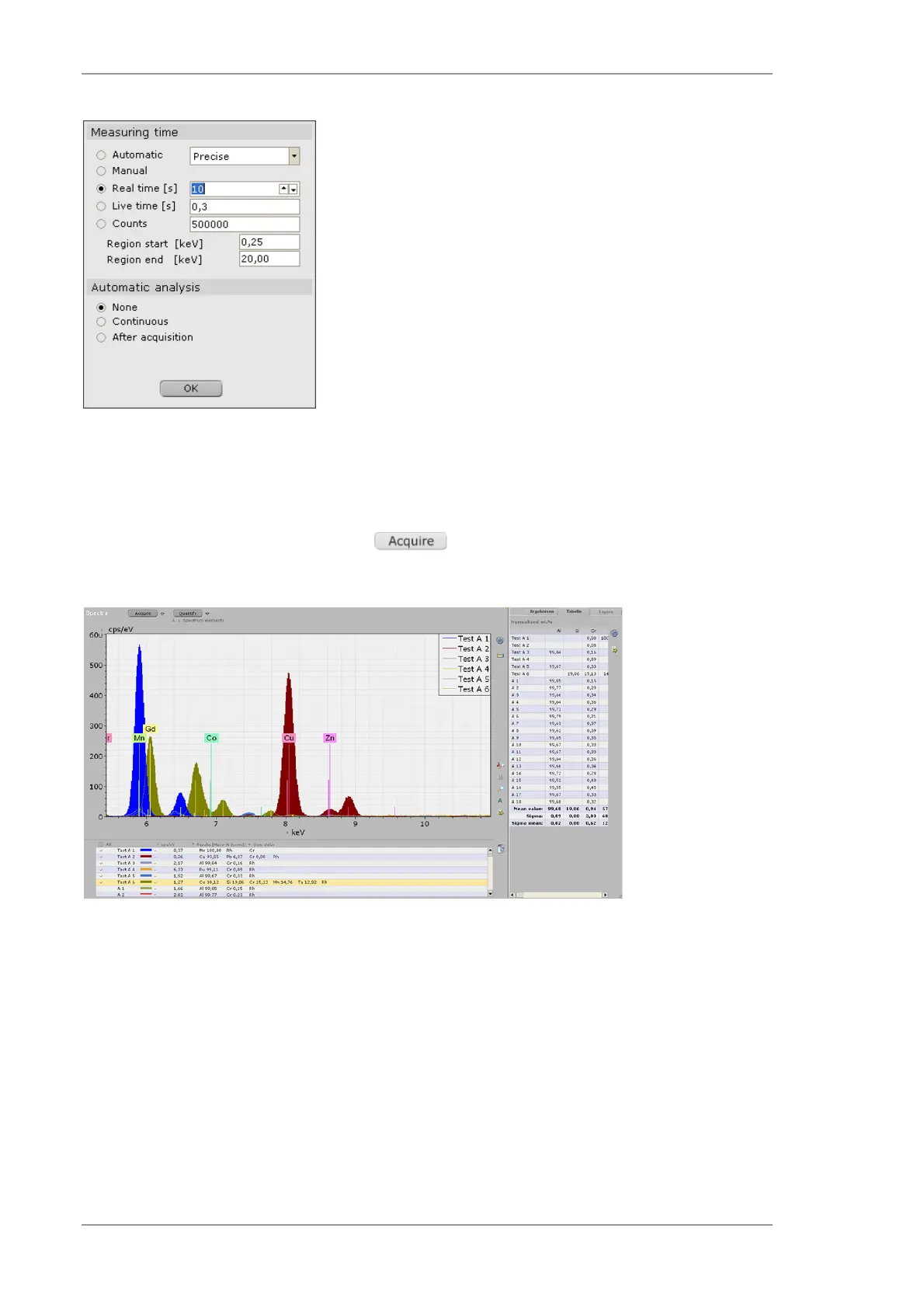

Fig. 34 Definition of acquisition parameters
6.6.2 Measurement and data evaluation
The measurement can be started with the button. The stage moves then to the first
position of the defined points and the measurement is started.
Fig. 35 The Multi-Point workspace - result
The spectrum of every object will be saved and displayed in the list of the measured spectra.
From there they can be manipulated, evaluated and quantified (see section 6.3 and 6.4). The
functions for the data evaluation in the spectrum window are described in Table 21.
6.6.3 Quantification
Quantification can be performed as described in section 6.4.3.
