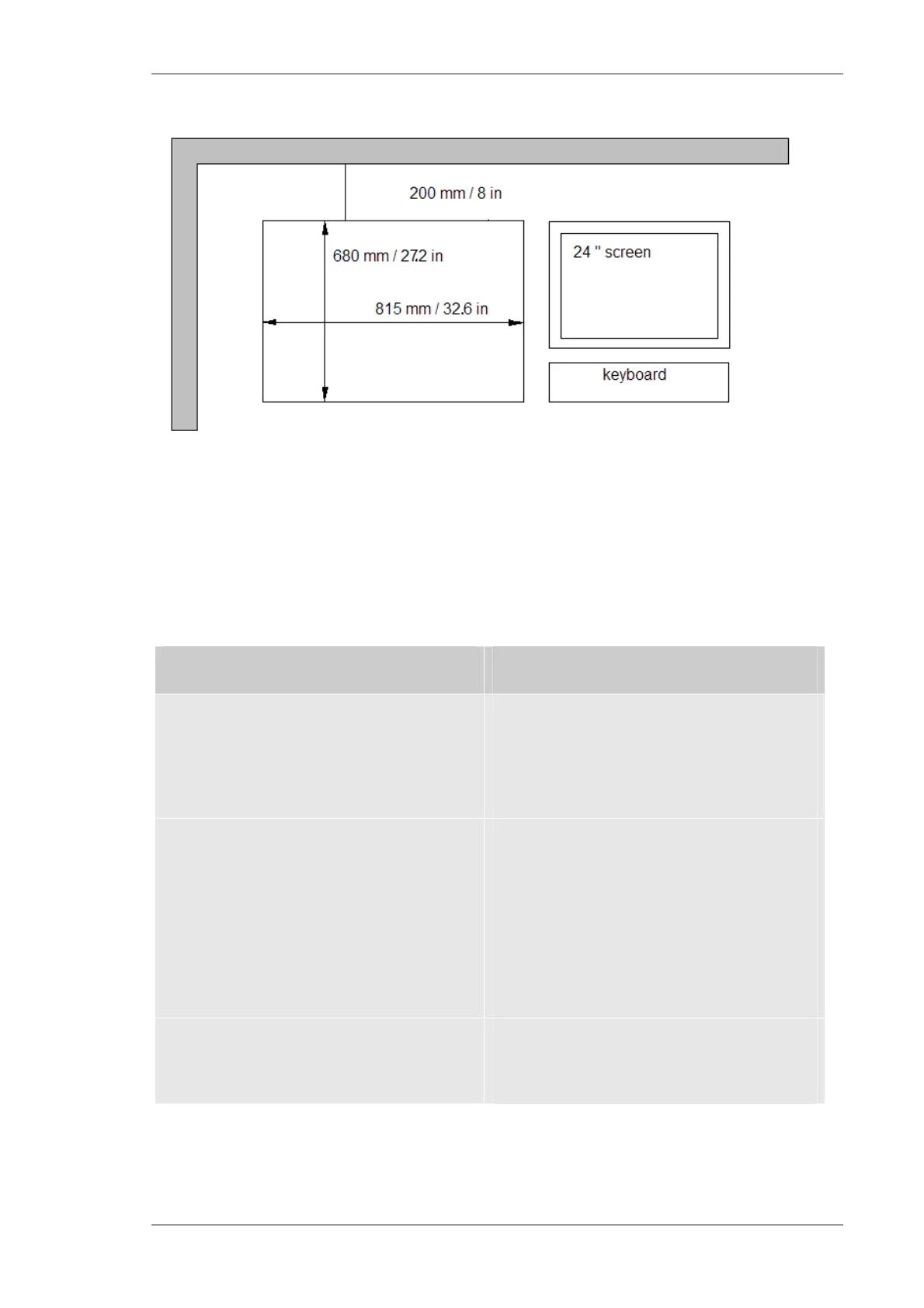

Fig. 7 Room planning for the installation of the M4 TORNADO
4.3.2 Electrical connection
The electrical connections required for the M4 TORNADO are specified in Table 6.
Table 6 Electrical connections
Electrical connection Dimensions
Spectrometer 100 V…240 V
50 Hz…60 Hz
max. 400 W
Vacuum pump 100 V – 120 V, 50 Hz or
100 V – 120 V, 60 Hz or
210 V – 230 V, 50 Hz
max. 530 W (during pumping)
max. 60 W (for vacuum)
Control computer and periphery depending on the PC
max. 150 W
