2002 Buell S3T: Chassis 2-27
HOME
4. See Figure 2-34. Install push rod.
a. Screw push rod into turn buckle.
b. Seat brake pedal height adjustment. See 1.5
BRAKES.
11WARNING1WARNING
Always verify proper operation of relief port (see Step 7).
A plugged or covered relief port can cause brake drag or
lockup, which may cause loss of vehicle control which
could result in death or serious injury.
5. Verify proper operation of the master cylinder relief port.
Actuate the brake lever with the reservoir cover removed.
A slight spurt of fluid will break the surface if all internal
components are working properly.
6. Add brake fluid and bleed brake system. See 1.5
BRAKES.
7. Figure 2-36. With motorcycle in a level position, check
that brake fluid is between the upper and lower marks on
reservoir. Add D.O.T. 4 BRAKE FLUID if necessary. Be
sure gasket and cap on reservoir fit securely.
11WARNING1WARNING
Check for proper brake lamp operation before riding
motorcycle (see Step 8). Visibility is a major concern for
motorcyclists. Failure to have proper brake lamp opera-
tion could result in death or serious injury.
8. Turn ignition key switch to IGN. Apply rear brake pedal to
test brake lamp operation. Turn ignition key switch to
LOCK.

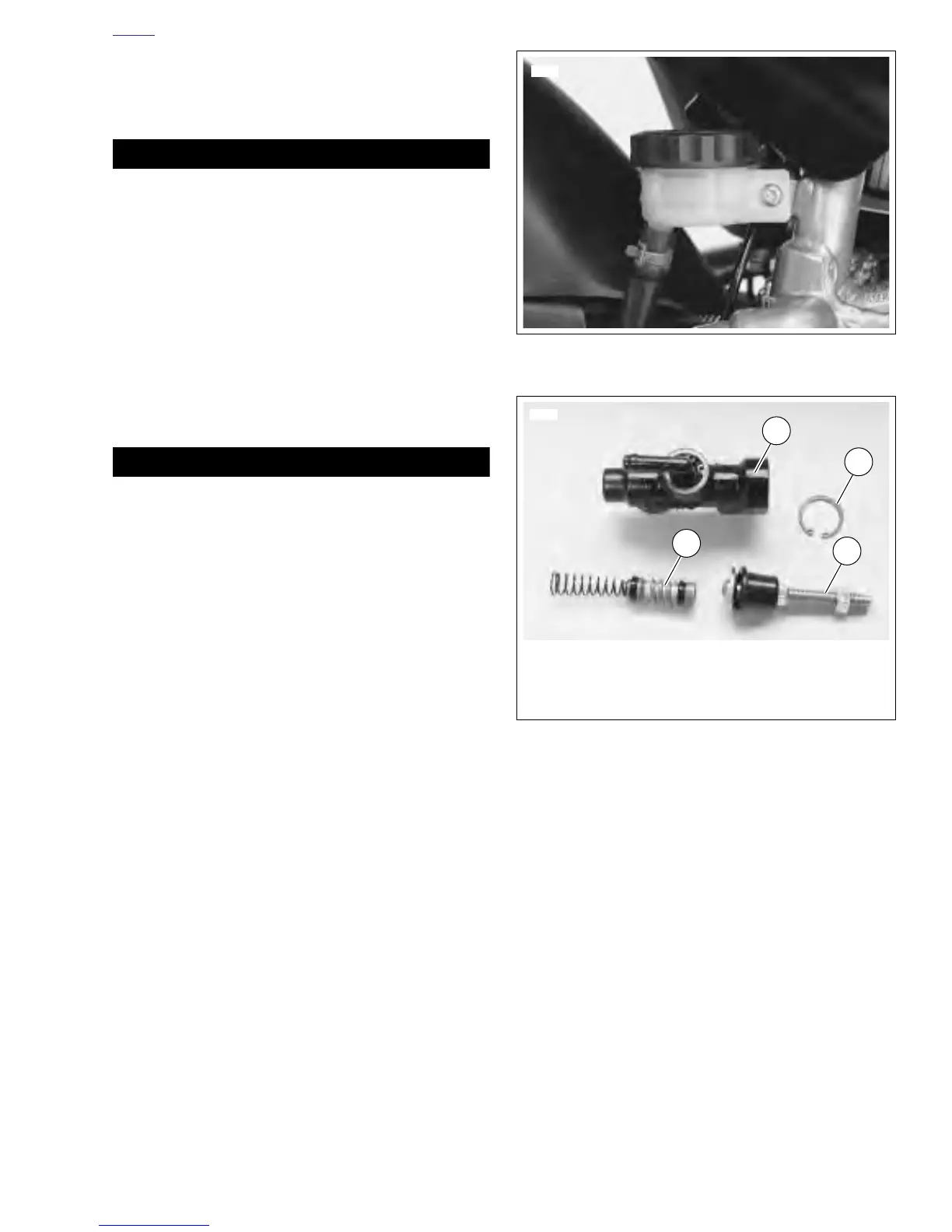

Figure 2-36. Remote Reservoir
Figure 2-37. Master Cylinder Internals
4688a
1
2
3
4
1. Master Cylinder Body
2. Snap Ring
3. Rod Assembly
4. Piston Assembly
