CHECK ENGINE LAMP ON CONTINUOUSLY 4.11
GENERAL
If the engine stop switch is set to RUN with the engine off,
and the ignition key switch is turned ON, the check engine
lamp should illuminate for four seconds. See Figure 4-21.
Following the initial period of illumination, the lamp should go
off for four seconds. It may then come back on for an eight
second period (for a stored error) or remain on continuously
(current error).
DIAGNOSTICS
Diagnostic Notes
The reference numbers below correlate with the circled num-
bers on the Test 4.11 flow chart.
1. See Figure 4-22. If the lamp goes off when the black
ECM connector [10] is unplugged, the BK/Y wire is not
shorted to ground.

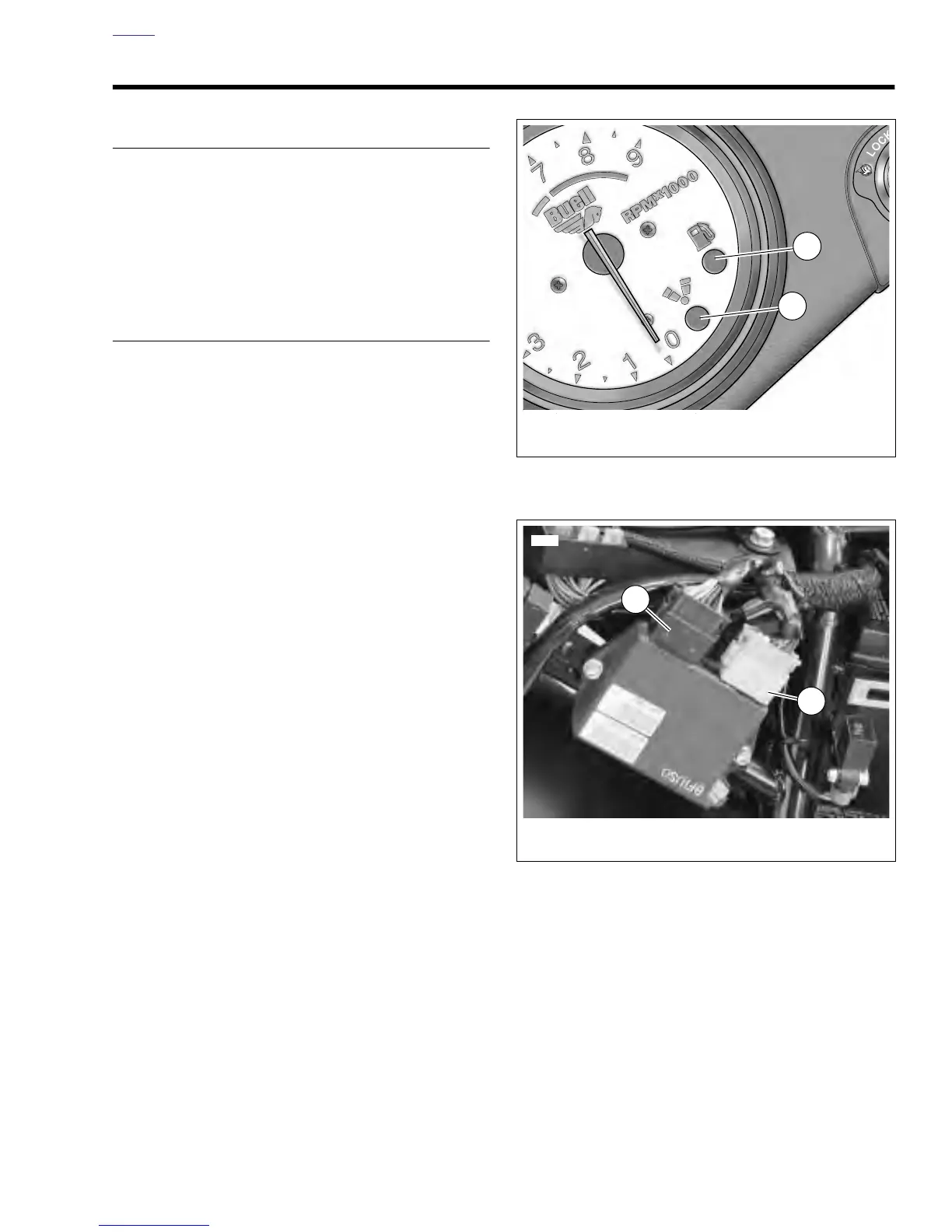

Figure 4-21. Check Engine Lamp
Figure 4-22. Electronic Control Module
1. Low Fuel Lamp
2. Check Engine Lamp
1
2
b0548xox
1. ECM Connector [10] (Black)
2. ECM Connector [11] (Gray)
1
2
6929
