2002 Buell S3T: Chassis 2-63
REAR FENDER 2.32
REMOVAL
1. Have someone sit on the vehicle to compress the motor-
cycle’s suspension.
2. See Figure 2-99. Remove two screws (1) and washers
(2) from right side wellnuts (4).
3. Remove screw (5) and washer (6) from front wellnut (7).
4. Remove screw (8) washer (9) from brake line clamp on
the left side.
5. Pull fender over rear tire.
INSTALLATION
1. See Figure 2-100. Position fender over tire, making sure
that the brake hose is on the outside of the fender as
shown.
2. See Figure 2-99. Secure clamp with screw (8) and
washer (9).
3. Have someone sit on the motorcycle to compress the
motorcycle’s suspension.
4. Apply LOCTITE THREADLOCKER 243 (blue) to all
screws.
a. Install screw (5) and washer (6) into wellnut (7).
b. Install screws (1) and washers (2) into wellnuts (4).

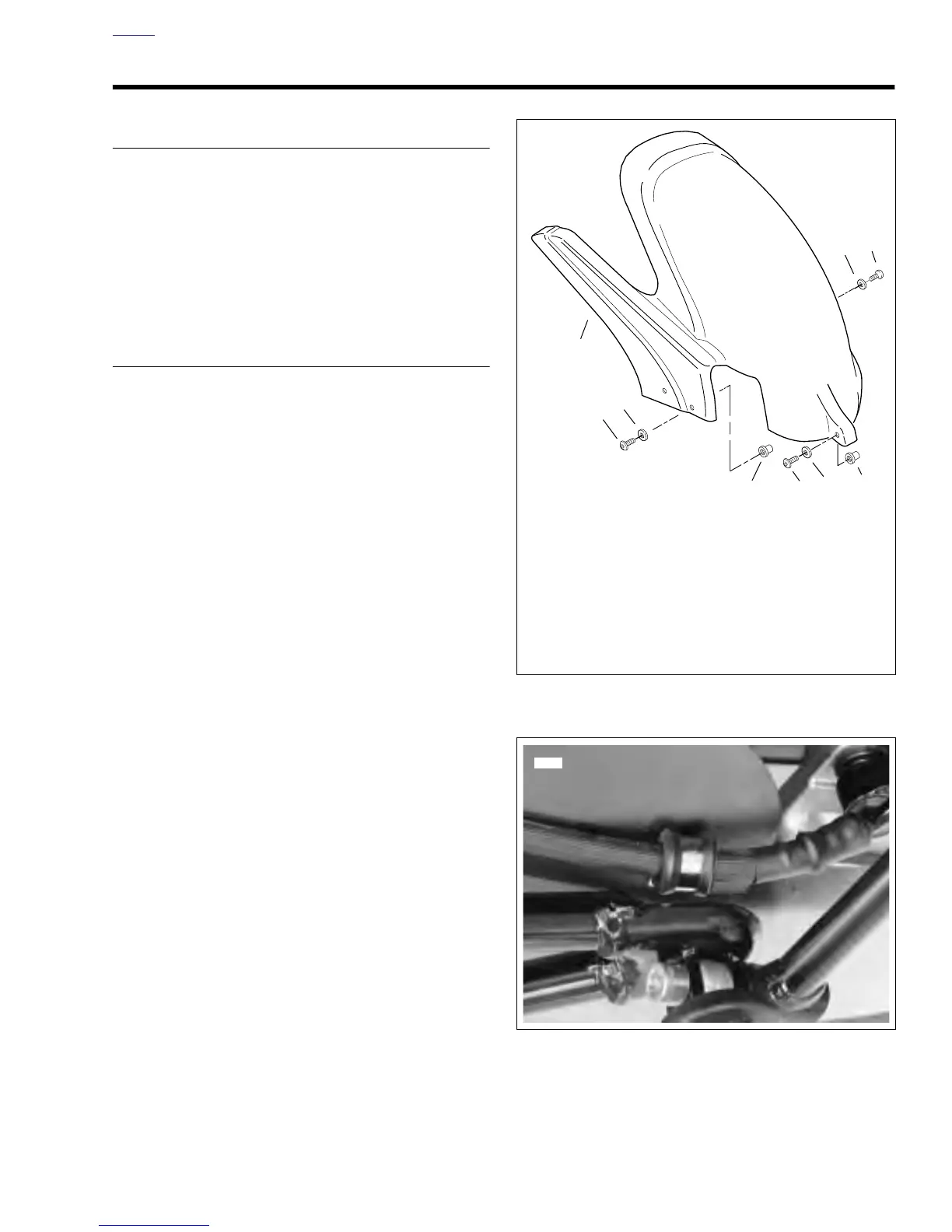

Figure 2-99. Rear Fender
Figure 2-100. Rear Fender With Brake Hose
1. Screw (2)
2. Washer (2)
3. Fender
4. Wellnut (2)
5. Screw
6. Washer
7. Wellnut
8. Screw
9. Washer
b0608x2x
1
2
3
9
4
5
6
7
8
