2-62 2002 Buell S3T: Chassis
FRONT FENDER 2.31
REMOVAL
1. Remove front wheel. See 2.5 FRONT WHEEL.
2. See Figure 2-98. Remove both lower mounting screws
(metric) and washers (7).
3. Remove upper mounting screws (1, 5) and washer and
spacer (3) on each side. Do not remove brake line guide
(2) and speedometer cable guide (6) from around lines/
cables unless necessary.
4. Carefully slide fender downward between fork legs.
INSTALLATION
1. Place washer and spacer (3) around brake line guide (2)
as shown in Figure 2-98. The guide retaining loop points
outward and back. Install screw (1) through assembly,
but do not tighten at this time.
2. Place washer and spacer (3) around speedometer cable
guide (6). The guide retaining loop points outward and
back. Install screw (5) through assembly, but do not
tighten at this time.
3. Install lower mounting screws (7) (metric). Plastic washer
fits between fork leg and back of fender. Tighten to
10-15 in-lbs (1-2 Nm).
4. Tighten upper mounting screws (1, 5) to 20-25 in-lbs
(2-3 Nm).
5. Install front wheel. See 2.5 FRONT WHEEL.

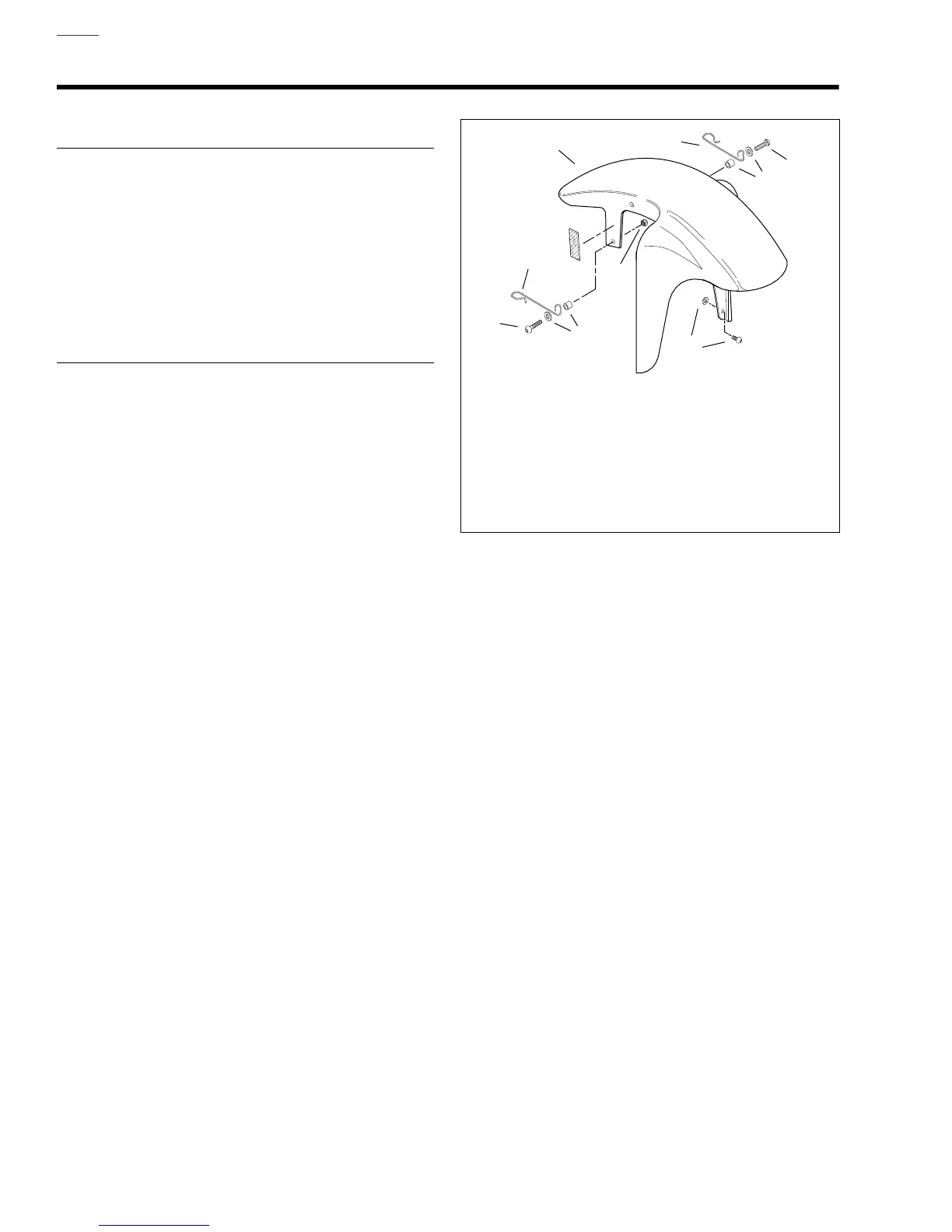

Figure 2-98. Front Fender
b0407x2x
1. Screw
2. Brake Line Guide
3. Washer and Spacer (2)
4. Locknut (2)
5. Screw
6. Speedometer Cable Guide
7. Screw (metric) and Washer (2)
8. Front Fender
1
3
5
7
4
8
3
2
6
