SPARK PLUGS 1.17
INSPECTION
Check spark plugs:
● Inspect at every 5000 mile (8000 km) service interval.
● Replace every 10,000 mile (16,000 km) service interval.
● Use only Harley-Davidson 10R12 spark plugs (Part No.
27661-00Y).
1. Disconnect cables from both spark plugs.
2. Remove spark plugs.
3. See Figure 1-40. Compare your observations of the plug
deposits with the descriptions provided below.
a. A wet, black and shiny deposit on plug base, elec-
trodes and ceramic insulator tip indicates an oil
fouled plug. The condition may be caused by one or
more of the following: worn pistons, worn piston
rings, worn valves, worn valve guides, worn valve
seals, a weak battery or a faulty ignition system.
b. A dry, fluffy or sooty black deposit indicates a carbu-
retor air-fuel mixture that is too rich, engine idling for
excessive periods of time and/or enrichener usage
for excessive periods of time.
c. A light brown, glassy deposit indicates an over-
heated plug. This condition may be accompanied by
cracks in the insulator or by erosion of the elec-
trodes and is caused by an air-fuel mixture that is
too lean, a hot-running engine, valves not seating or
improper ignition timing. The glassy deposit on the
spark plug is a conductor when hot and may cause
high-speed misfiring. A plug with eroded electrodes,
heavy deposits or a cracked insulator must be
replaced.
d. A plug with a white, yellow, tan or rusty brown pow-
dery deposit indicates balanced combustion. Clean
off spark plug deposits at regular intervals.
4. If the plugs require cleaning between tune-ups and
replacement plugs are not available, proceed as follows:
a. Degrease firing end of spark plug using ELECTRI-
CAL CONTACT CLEANER. Dry plug with com-
pressed air.
b. Use a thin file to flatten spark plug electrodes. A
spark plug with sharp edges on its electrodes
requires 25%-40% less firing voltage than one with
rounded edges.
5. If the plugs cannot be cleaned, replace with No. 10R12
spark plugs.
6. Check electrode gap with a wire-type feeler gauge. Gap
should be 0.038-0.043 in. (0.97-1.09 mm).
7. See Figure 1-41. Apply LOCTITE ANTI-SEIZE to first
few threads of spark plugs. Install and tighten to 11-18 ft-
lbs (15-24 Nm).
8. Connect spark plug cables. Longer cable attaches to
rear cylinder spark plug. Verify that cables are securely
connected to coil and spark plugs.

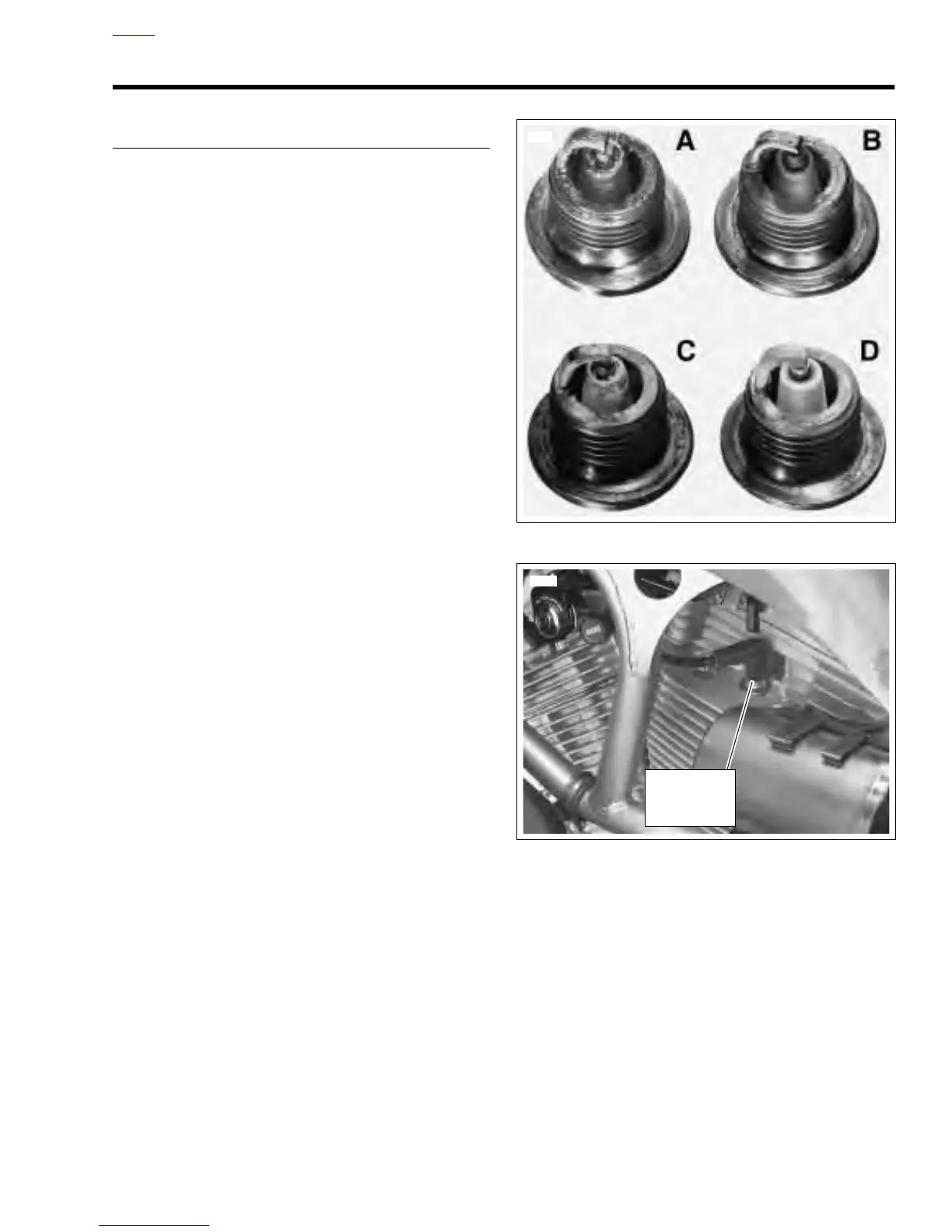

Figure 1-40. Typical Spark Plug Deposits
Figure 1-41. Spark Plugs (Typical)
11-18 ft-lbs
(15-24 Nm)
Anti-Seize
