SPEEDOMETER SENSOR 7.11
REMOVAL
1. See Figure 7-62. Remove bolt (1) to detach speedome-
ter sensor (2) from crankcase.
2. See Figure 7-63. Disconnect 3-place Deutsch connector
[65] for speedometer sensor.
a. Remove seat and tail section. See 2.33 TAIL SEC-
TION.
b. Locate connector [65] near battery negative terminal
(-) and disconnect.
INSTALLATION
1. See Figure 7-62. Install bolt (1) to attach speedometer
sensor (2) to crankcase.
2. Connect speedometer sensor connector [65] to wiring
harness.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control which could result in death or serious
injury.
3. Install tail section and seat. See 2.33 TAIL SECTION.

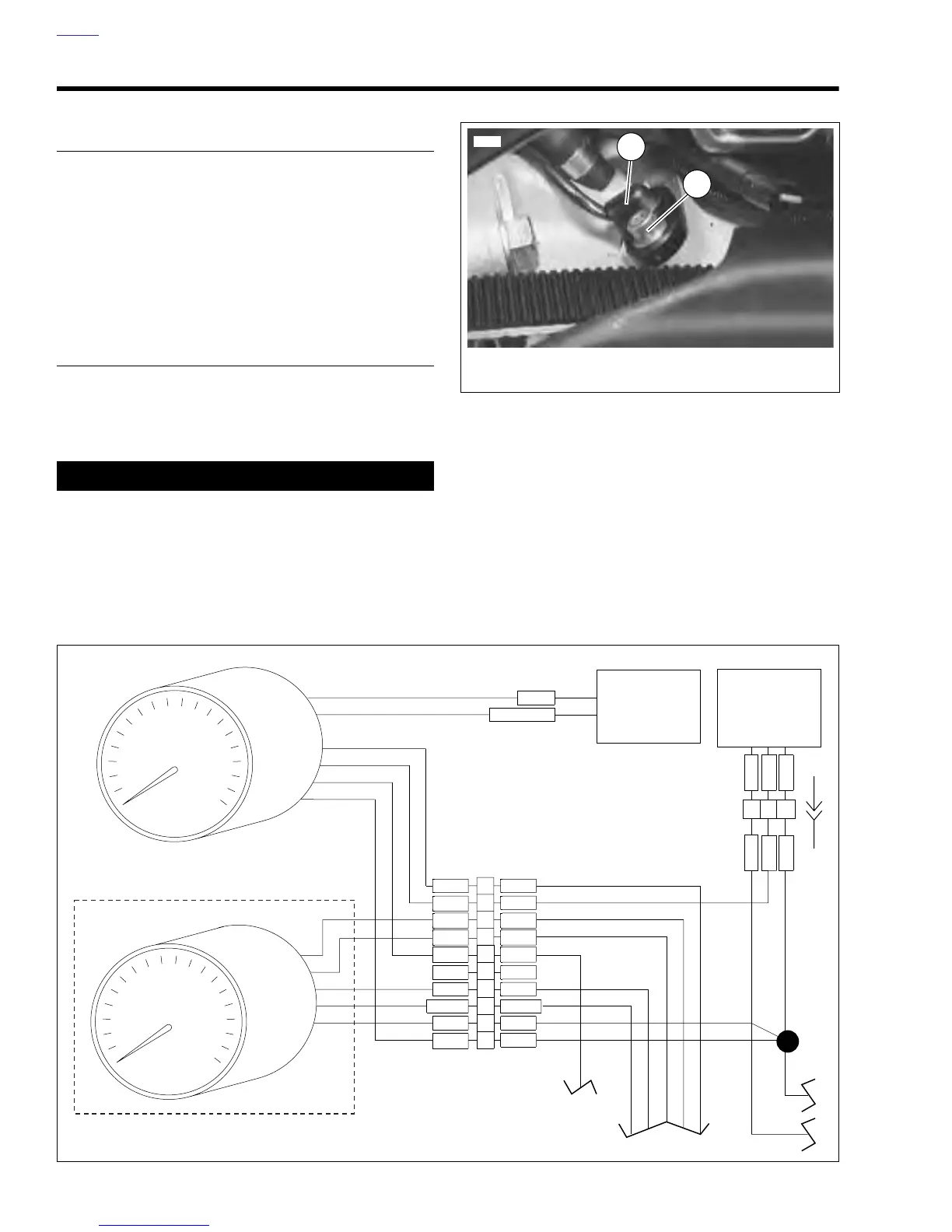

Figure 7-62. Speedometer Sensor
1
6991
2
1. Bolt
2. Speedometer Sensor
Figure 7-63. Speedometer Sensor Wiring
2
3
4
O/W
1
W
O/W
BKBK
5
6
7
8
9
10
OO
Y/R Y/R
R
--
PK PK
BK/Y BK/Y
BK
BK
BK
LT BE/W
W
ABC
BK
W
GY
BK
W
R
R
Speedometer
b0670x2x
Tachometer
Odometer
Reset
Button
Speedometer
Sensor
Instrument
Connector
[39]
3-Place Deutsch
Connector [65]
