RELAY BLOCK 7.9
GENERAL

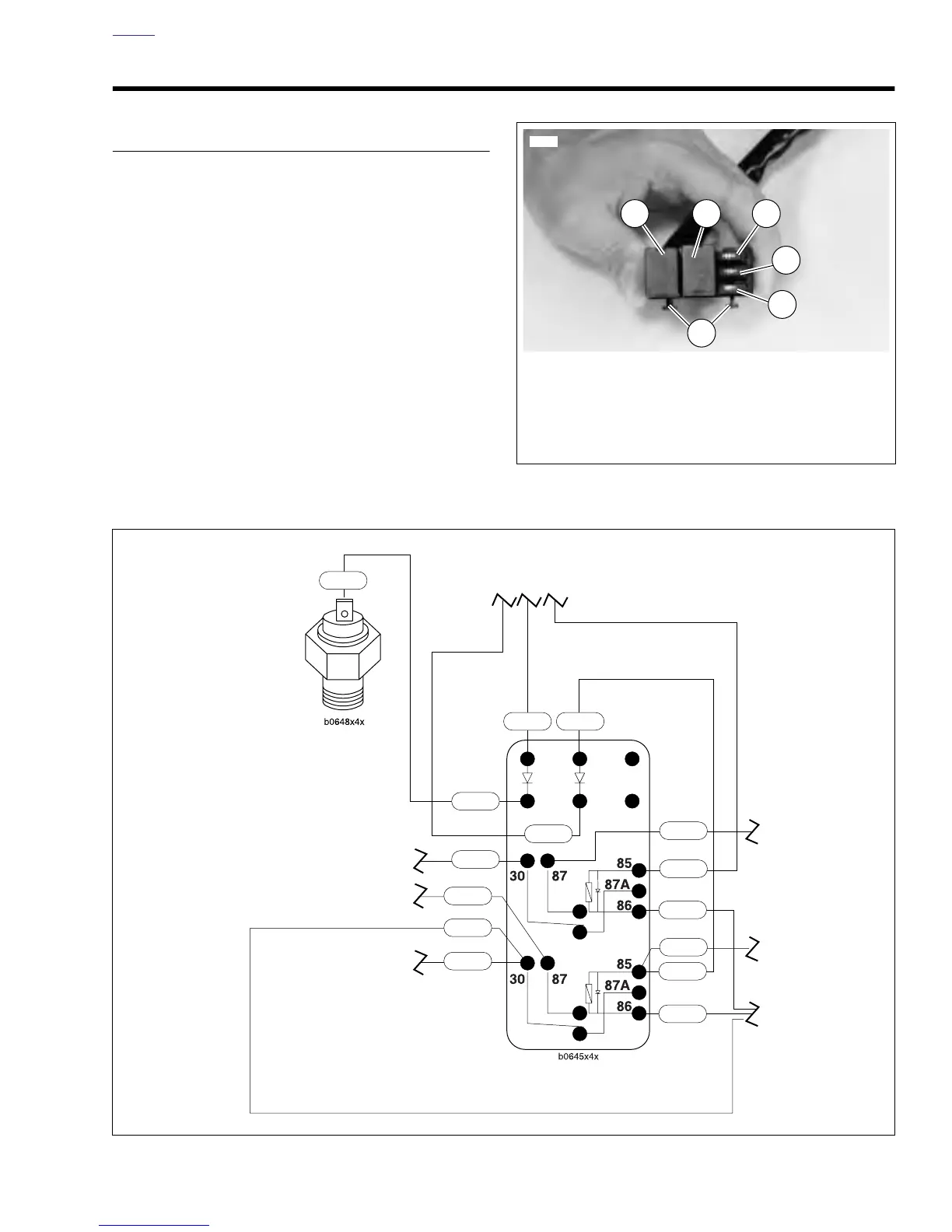

See Figure 7-55. The block contains two relays (1, 2), two
diodes (3, 4) and one space for a replacement diode (5).
The relay block is located on the right side of the vehicle,
under the tail section.
Relay block wiring is shown in Figure 7-56.
Figure 7-55. Relay Block
1. Ignition Relay
2. Starter Relay
3. Starter Circuit Diode
4. Ignition Circuit Diode
5. Spare Diode
6. Mounting Tabs
6763
3
4
6
5
21
Figure 7-56. Relay Wiring
TN/W
TN/W
Relay Block
Diode 1
Diode 2
To Fuse Block
Ignition Relay
To Clutch
Switch [95]
TN/GN
TN
Neutral
Switch
TN
TN/W
To Side Stand
Switch [60]
W/BK
To Right Handle-
bar Switch [22]
TN/GN
R/BK
To Ignition Fuse
GY/O
GY
To ECM
To Starter
Solenoid
GN
BK/R
GY/O
TN/GN
To Next Page
