2-66 2002 Buell S3T: Chassis
FRONT FAIRING 2.34
REMOVAL
Front Fairing
1. See Figure 2-105. Remove both fairing bags (4).
2. Remove both front turn signals (7).
a. Disconnect bullet connectors on turn signal wires.
b. Remove nut and screw (6) to detach turn signals.
Use caution not to scratch front fairing.
3. Remove two nuts (metric) on each mirror (5). Remove
mirrors while supporting front fairing. Pull front fairing
away from front fairing bracket.
4. Remove six screws and washers (1) to separate wind-
shield (2) from front fairing (3).
Front Fairing Mount
1. Remove front fairing.
2. Remove dash panel and gauges. See 2.26 HANDLE-
BARS.
3. Detach headlamp connector from bulb. See 7.1 HEAD-
LAMP.
NOTE
If replacing front fairing mount, remove headlamp.
4. Cut all cable straps holding wiring to front fairing mount.
Note routing of wires before removing wires from mount.
5. See Figure 2-106. Remove two locknuts (1), washers (2)
and bolts (3) to detach front fairing mount from steering
head.

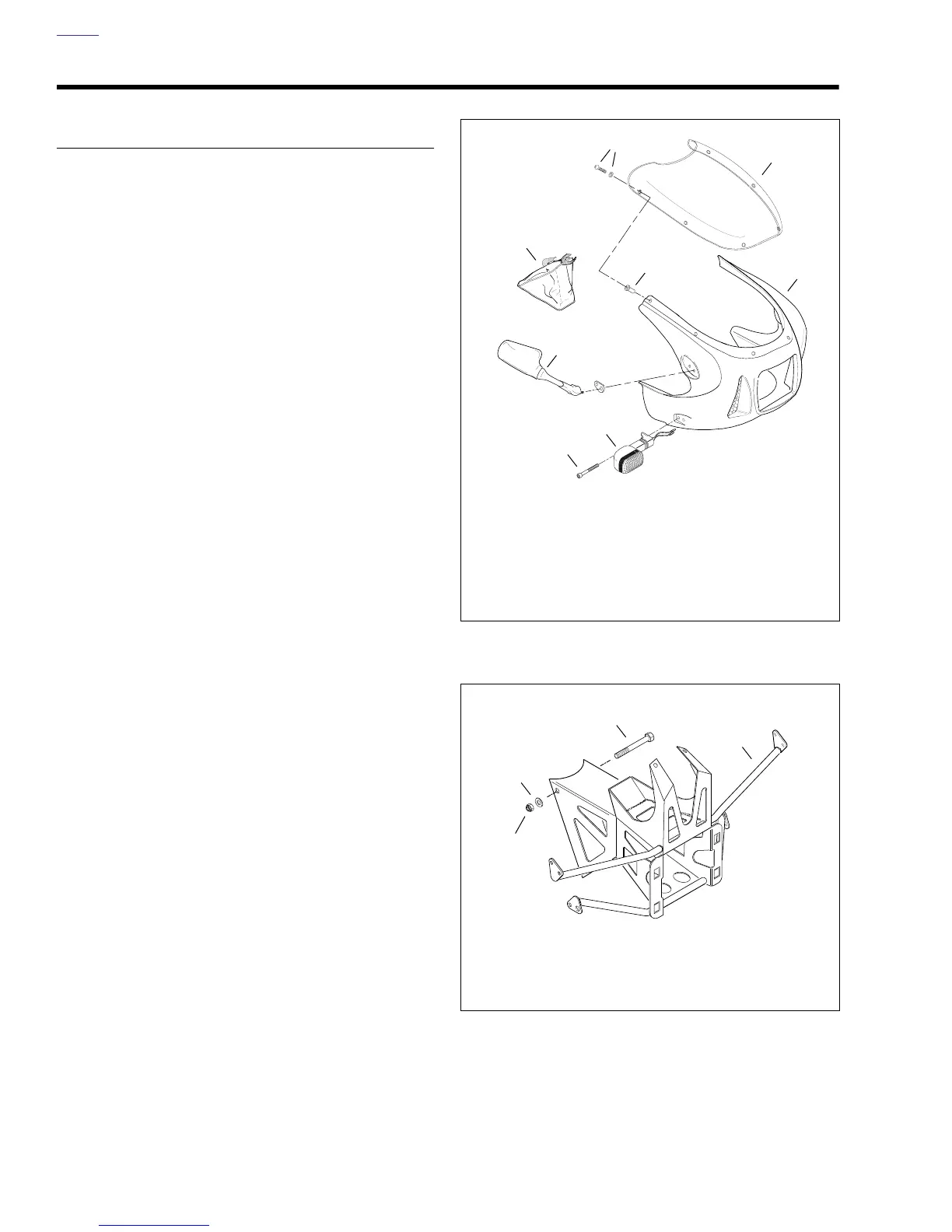

Figure 2-105. Front Fairing
Figure 2-106. Front Fairing Mount
b0424x2x
1. Screw, Washer and Wellnut (6)
2. Windshield
3. Front Fairing
4. Fairing Bag (2)
5. Mirror (2) (4 metric Nuts not shown)
6. Screw (2) (2 Nuts not shown)
7. Turn Signal (2)
1
2
3
5
6
7
1
4
b0425x2x
3
2
1
4
1. Locknut (2)
2. Washer (2)
3. Bolt (2)
4. Front Fairing Mount
