2002 Buell S3T: Chassis 2-67
INSTALLATION
Front Fairing Mount
1. Align and install front fairing mount on frame.
a. See Figure 2-107. Front brake line (5) must run on
gearcase cover side of fairing mount.
b. Throttle cables (6) and all other wiring must run on
primary cover side of fairing mount.
c. See Figure 2-106. Attach fairing mount to steering
head using two locknuts (1), washers (2) and bolts
(3). Tighten to 22-25 ft-lbs (30-34 Nm).
2. Install and/or connect headlamp. See 7.1 HEADLAMP.
3. See Figure 2-108. Use new cable straps (3) to secure
wires (1, 2) to front fairing mount.
4. Install dash panel and both gauges. See 2.26 HANDLE-
BARS.
5. Install front fairing.
Front Fairing
1. See Figure 2-105. Attach windshield to front fairing using
six screws and washers (1).
2. Align front fairing on front fairing mount. Loosely install
both mirrors (5) using two nuts (metric) on each.
3. Install front turn signals (7). See 7.3 TURN SIGNALS.
4. Tighten both nuts (metric) on mirrors to 7-10 in-lbs (0.8-
1.1 Nm).
5. Install both fairing bags (4).

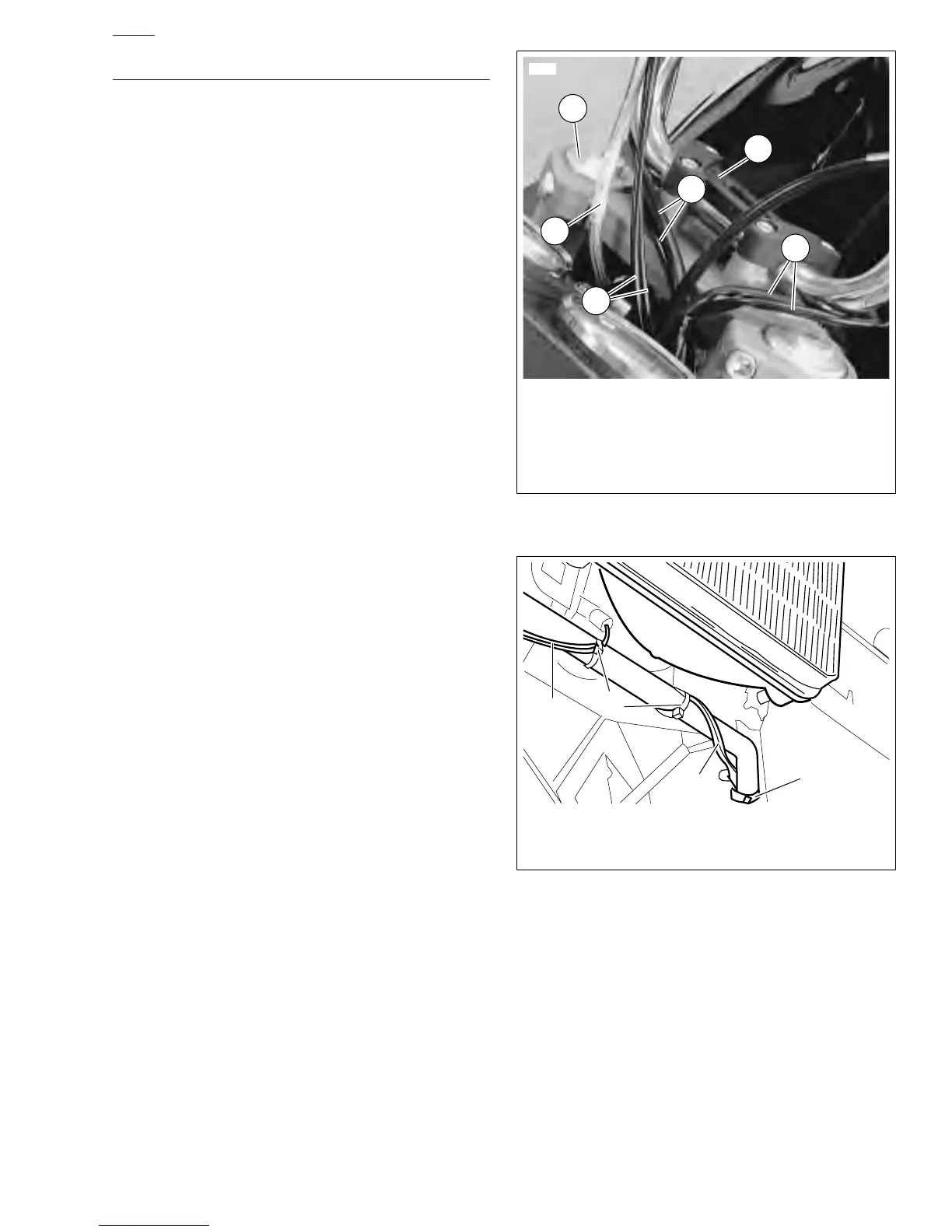

Figure 2-107. Front Fairing Mount Alignment
Figure 2-108. Cable Straps
6287
1. Right Hand Control Cables
2. Left Hand Control Cables
3. Handlebar Clamp on Upper Triple Clamp
4. Fork Tube
5. Front Brake Line
6. Throttle Cables
2
1
3
4
5
6
b0469x2x
1
1. Right Turn Signal Wires
2. Left Turn Signal Wires
3. Cable Straps
3
