2002 Buell S3T: Chassis 2-61
STONE GUARD 2.30
REMOVAL
1. See Figure 2-97. Remove two screws (1) and washers
(2) securing lower belt guard (3) to swing arm.
2. Remove lower belt guard (3), stone guard (4) and well-
nuts (5) from swing arm.
INSTALLATION
1. See Figure 2-97. Position stone guard (4) with wellnuts
(5) and lower belt guard (3) on swing arm.
2. Secure with two screws (1) and washers (2).

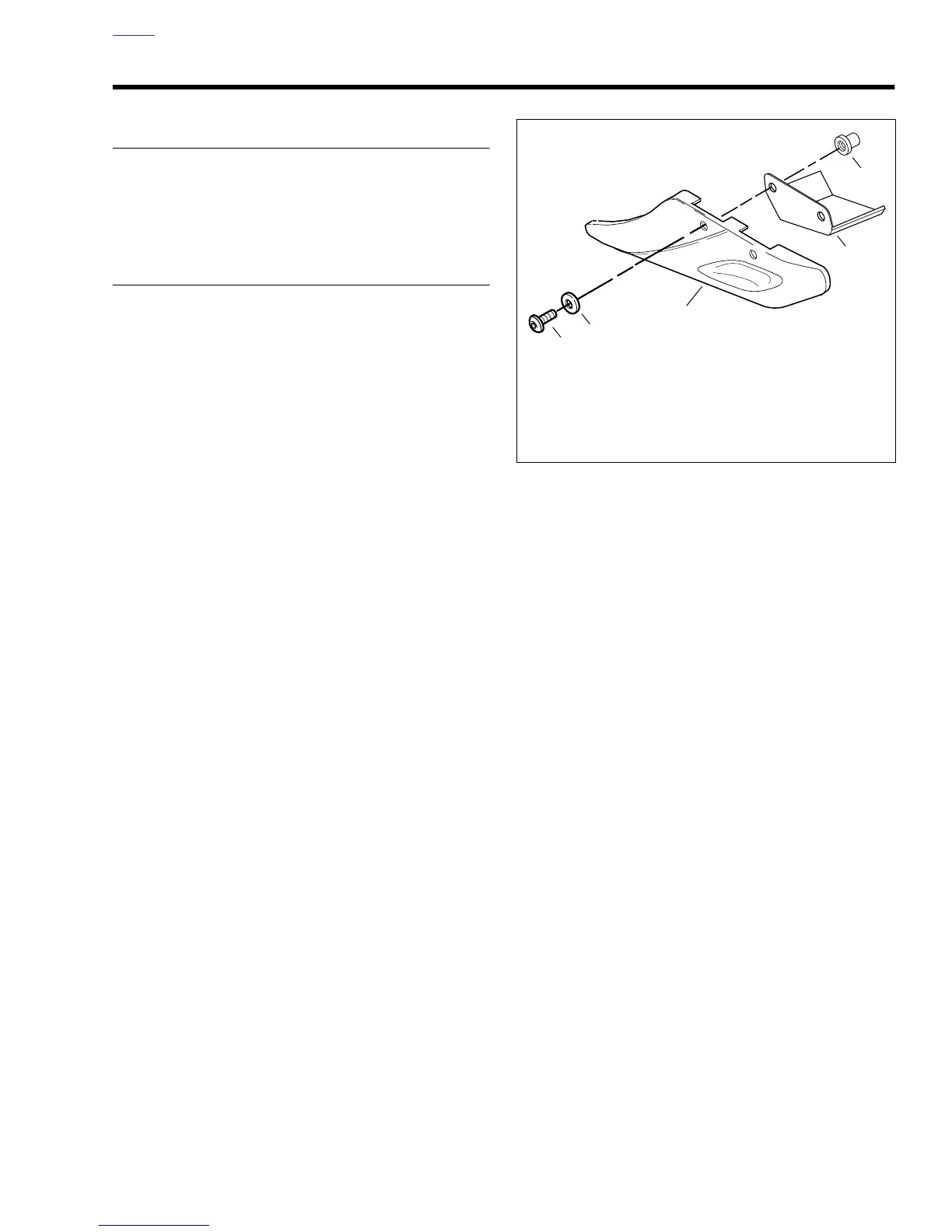

Figure 2-97. Stone Guard
b0612x2x
1. Screw (2)
2. Washer (2)
3. Lower Belt Guard
4. Stone Guard
5. Wellnut (2)
1
4
3
2
5
