TROUBLE CODE 44 4.26
GENERAL
Bank Angle Sensor
See Figure 4-62. A Code 44 occurs when the bank angle
sensor voltage is outside the normal operating range of 0.6-
1.1 volts. This may be caused by:
● Short to ground in harness between sensor and elec-
tronic control module.
● Short to voltage in harness between sensor and elec-
tronic control module.
● Failed sensor.
If this code occurs, the engine may stop running. The engine
may still be restarted and ridden to the dealership for repair.
DIAGNOSTICS
Diagnostic Notes
The reference numbers below correlate with the circled num-
bers on the Code 44 flow charts.
1. Use HARNESS CONNECTOR TEST KIT (Part No. HD-
41404), gray pin probes and patch cord.
2. Connect BREAKOUT BOX (Part No. HD-42682) to ECM.
See 4.7 BREAKOUT BOX.

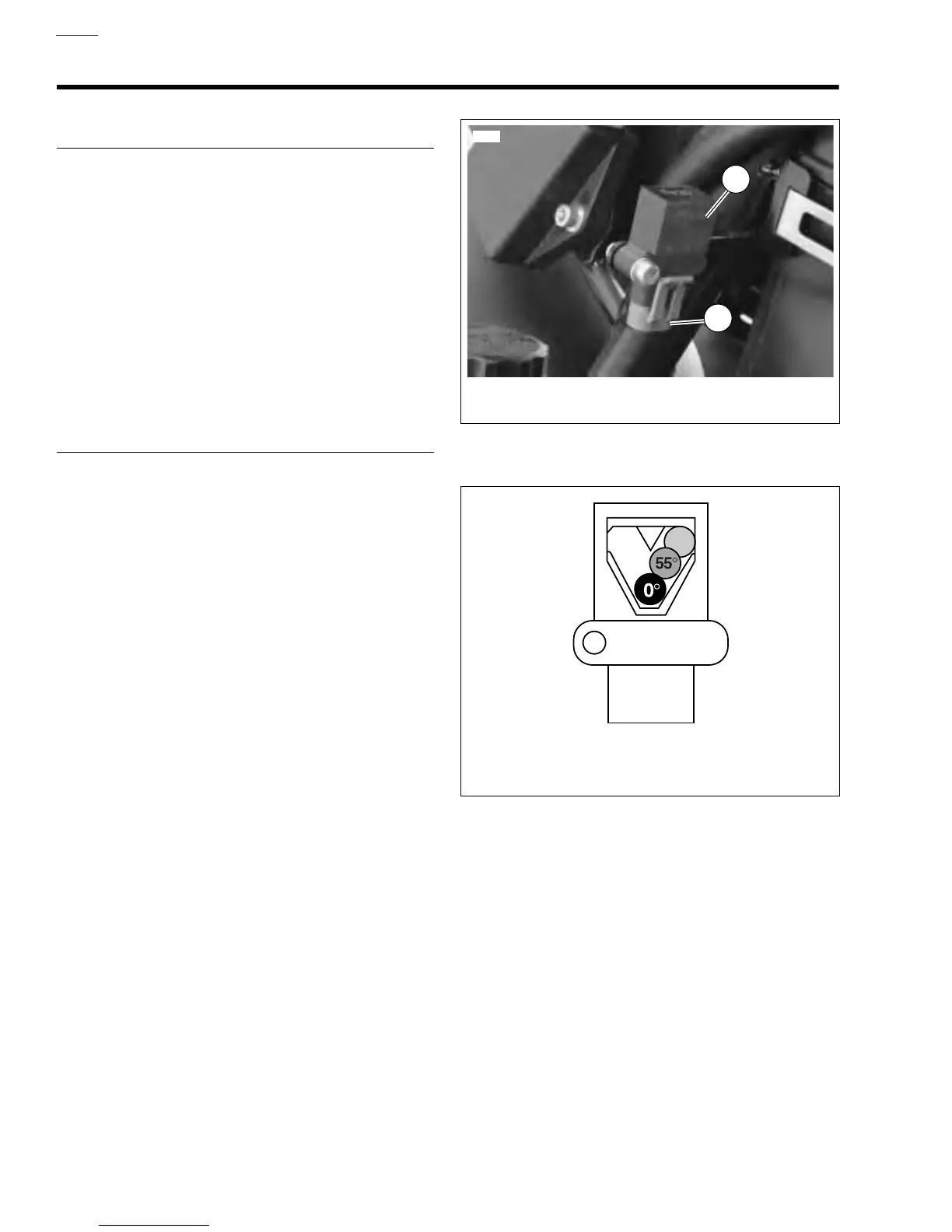

Figure 4-62. Bank Angle Sensor
Figure 4-63. Normal Bank Angle Sensor Operation
1
6768
2
1. Bank Angle Sensor
2. Bank Angle Sensor Connector [134]
When vehicle lean angle exceeds 55°,
ECM shuts off ignition and fuel systems.
