2002 Buell S3T: Fuel System 4-13
HOME
WIGGLE TEST 4.8
GENERAL
The wiggle test checks for the presence of intermittents in a
wiring harness. Depending upon the availability of diagnostic
tools, either version of this test may be used.
PROCEDURE
Using DVOM (Part No. HD-39978)
1. Connect DVOM to wiring harness between the suspect
connections. When diagnosing ECM connections, a
BREAKOUT BOX (Part No. HD-42682) may be used to
simplify the procedure. See 4.7 BREAKOUT BOX.
2. Set DVOM to read voltage changes.
3. Start motorcycle engine and run at idle.
4. Shake or wiggle harness to detect intermittents. If inter-
mittents are present, radical voltage changes will register
on the DVOM.
Using Scanalyzer (Part No. HD-41325)
1. Connect Scanalyzer to vehicle. See 4.5 SCANALYZER.
2. Start motorcycle engine and run at idle.
3. Enter wiggle test mode.
a. Press “5” from the DIAGNOSTIC MENU to enter the
SPECIAL TESTS menu.
b. Press “1” from the SPECIAL TESTS menu to enter
the WIGGLE TEST.
4. Shake or wiggle harness to detect intermittents. If inter-
mittents are present the Scanalyzer will beep, light the
four corner LEDs and display a minus sign when a cur-
rent trouble code is detected. See Figure 4-15.
NOTE
If a current trouble code is present when the wiggle test is
entered, the Scanalyzer will respond as described immedi-
ately upon entering the wiggle test mode. With key ON and
engine off, clear trouble codes and then perform wiggle test
with vehicle running.

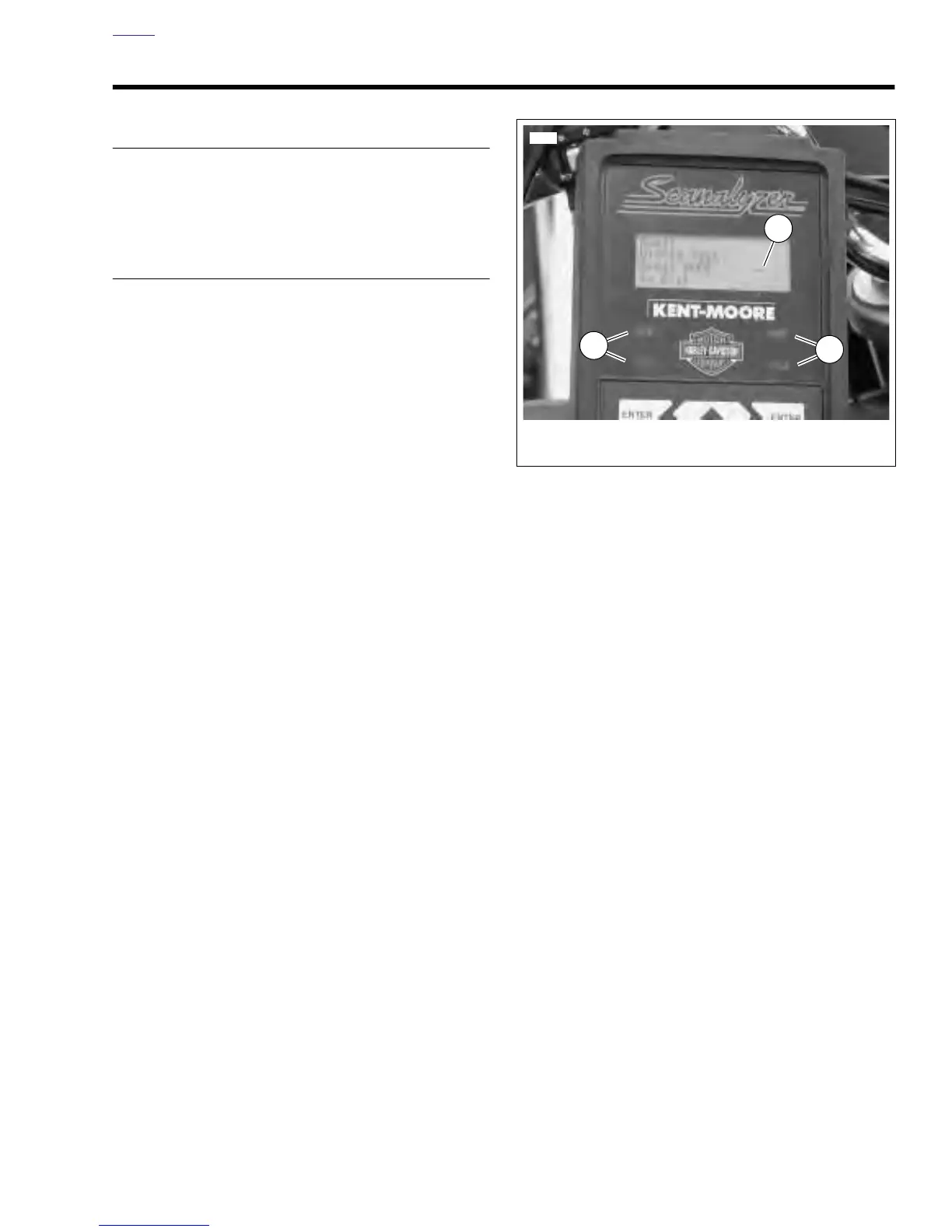

Figure 4-15. Wiggle Test Indicators
1
6931
1. Minus Sign
2. Corner LED (4)
2
2
