2002 Buell S3T: Chassis 2-33
HOME

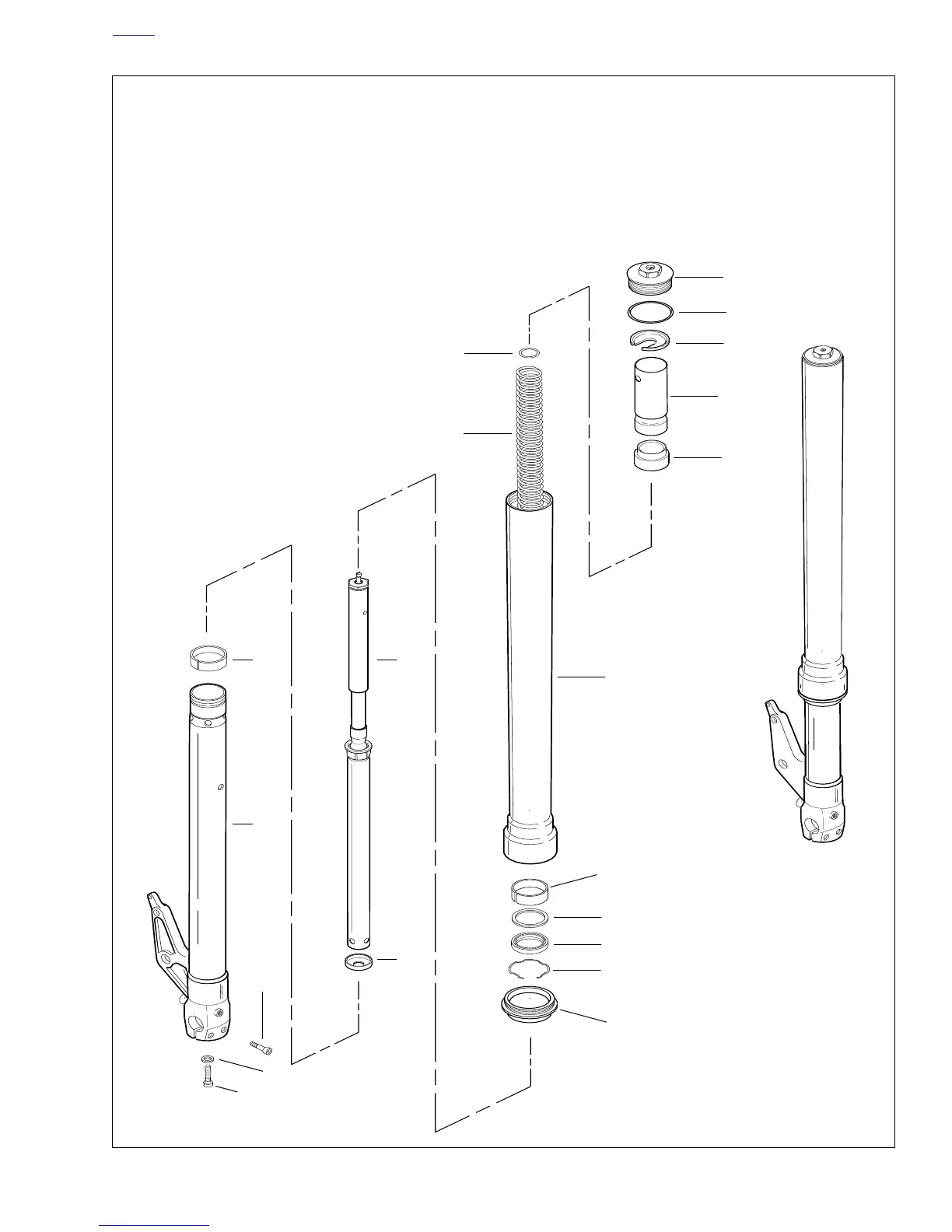

Figure 2-48. Front Fork Assembly
3
6
1
2
4
5
1. Fork Bolt
2. O-Ring
3. Spring Seat Stopper
4. Spring Collar
5. Spring Joint
6. O-Ring
7. Spring
8. Outer Tube
9. Guide Bushing
10. Seal Spacer
11. Oil Seal
12. Stopper Ring
13. Dust Seal
14. Damper Assembly
15. Centering Plate
16. Slide Bushing
17. Slide Pipe
18. Special Washer
19. Center Bolt
20. Mounting Bolt
8
9
10
11
12
13
7
16
18
19
20
b0652x2x
17
14
15
