2002 Buell S3T: Chassis 2-41
6. See Figure 2-63. Secure swingarm in place.
a. Remove both pinch screws (1).
b. Apply LOCTITE THREADLOCKER 243 (blue) to
threads of pinch screws.
c. Install both pinch screws. Tighten to 18-20 ft-lbs (24-
27 Nm).
7. Insert REAR ISOLATOR REPLACEMENT TOOL (Part
No. B-44623) between mount block and frame. NOTE:
Ledge on tool should engage top of mount block.
8. Position rear isolators in mounting position. Slowly lower
frame to place rubber isolators in front of bearing adjust-
ment bolts.
9. Install isolator bolts. See 2.20 REAR ISOLATORS .
10. Attach rear tie bar to swingarm mount block. Tighten to
30-33 ft-lbs (41-45 Nm).
11. Remove scissors jack from under crankcase.
12. Install rear shock bolt (metric). Tighten to 30-33 ft-lbs
(41-45 Nm).
13. Attach feed and drain lines to oil tank and frame. Install
filter and fill motorcycle with proper oil.
a. Use 2.0 quarts (1.89 liters).
14. Attach rear brake pedal to master cylinder pushrod.
15. Attach left side rider footrest and shifter lever. Apply
LOCTITE THREADLOCKER 272 (red) to bolt. Tighten to
23-25 ft-lbs (31-34 Nm).
16. Install rear wheel. See 2.6 REAR WHEEL.

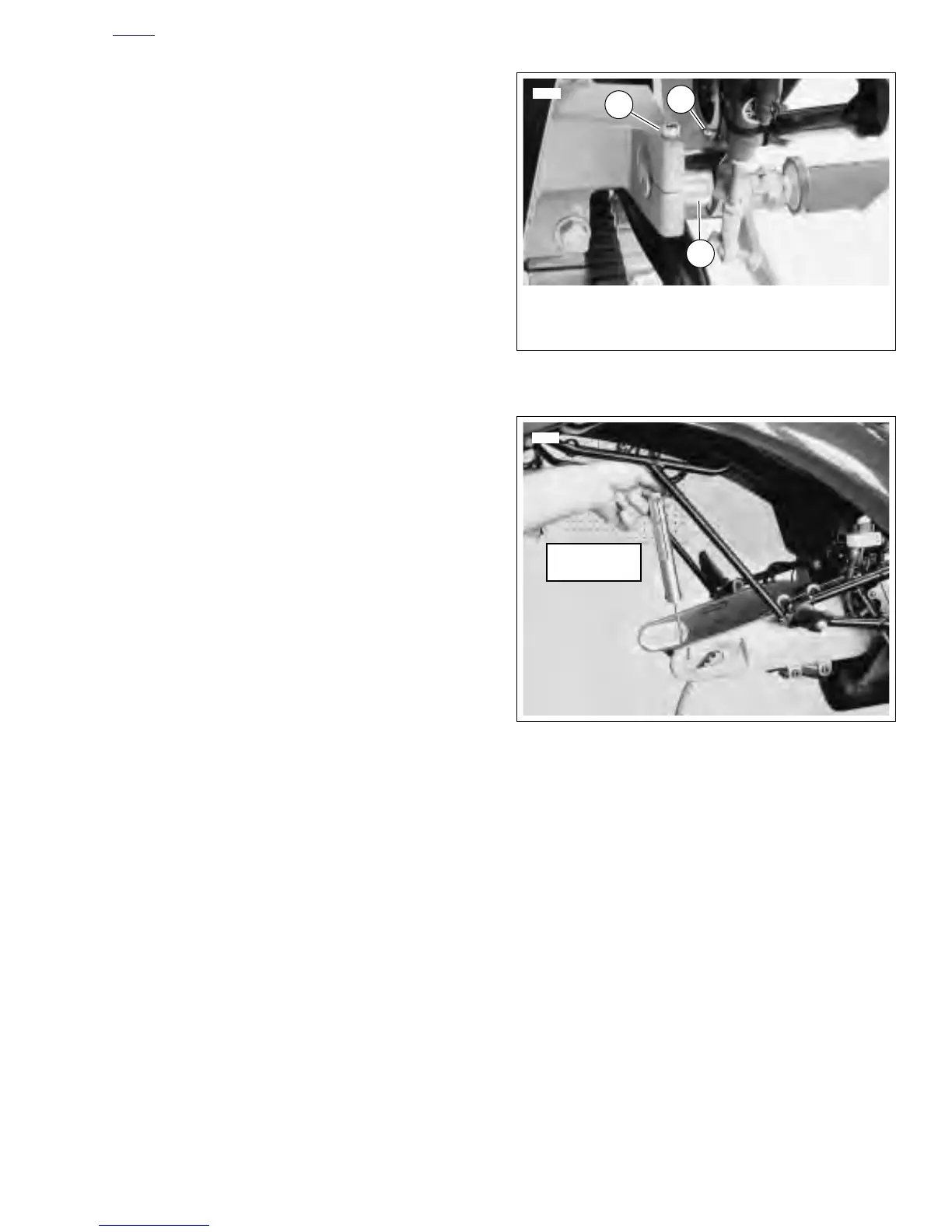

Figure 2-64. Swingarm Mount Block, Right Side
Figure 2-65. Checking Preload
1. Pinch Screw
2. Bearing Adjustment Bolt
3. Pin on Frame for Rear Isolator
6874
1
2
3
6876
3.0-3.75 lbs
(1.36-1.70 kg)
