2002 Buell S3T: Chassis 2-47

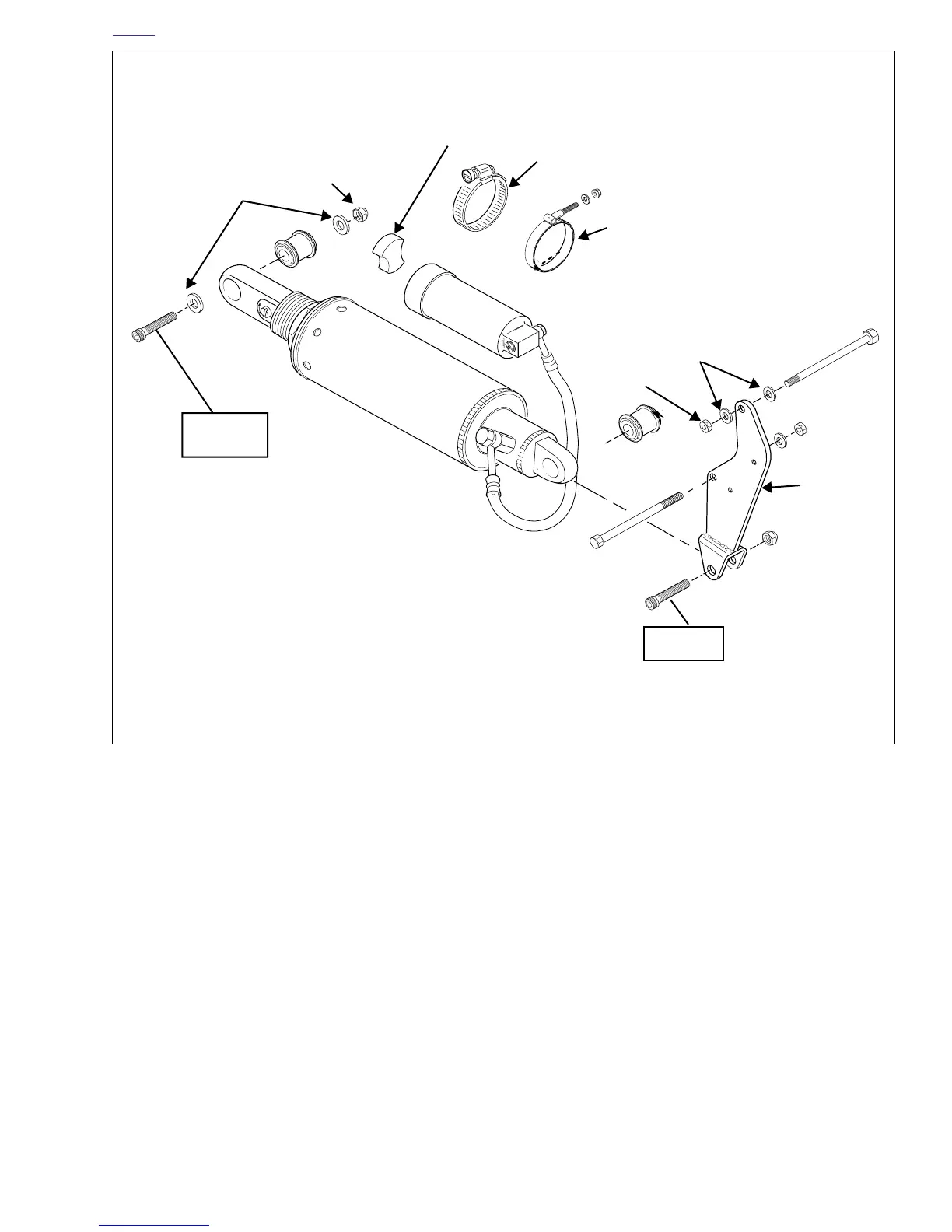

Figure 2-76. Rear Shock Absorber
b0918x2x
Rear Reservoir Clamp
Front Reservoir
Clamp
Nylon
40-45 ft-lbs
(54-61 Nm)
Front
Shock
Mount
Reservoir Mount Block
Metal Locknut (2)
30-33 ft-lbs
(41-45 Nm)
Washers (3)
Locknut (2)
Washers
